Inventek Systems W24-RSMA-M
- Part No.:
- W24-RSMA-M
- Manufacturer:
- Inventek Systems
- Category:
- RF Antennas
- Package:
- Datasheet:
-
W24-RSMA-M.pdf
- Description:
- RF ANT 2.4GHZ WHIP RA SMA MALE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
W24-RSMA-M Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Inventek Systems
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz)
- Frequency (Center/Band):
- 2.4GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz
- Antenna Type:
- Whip, Right Angle
- Number of Bands:
- 1
- VSWR:
- 1.5
- Return Loss:
- -17dBi
- Gain:
- 2.15dBi
- Power - Max:
- 50 W
- Features:
- -
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 1.829" (46.46mm)
- Applications:
- WLAN
- Datasheet:
-
W24-RSMA-M.pdf
| Image |  |
 |
 |
 |
 |

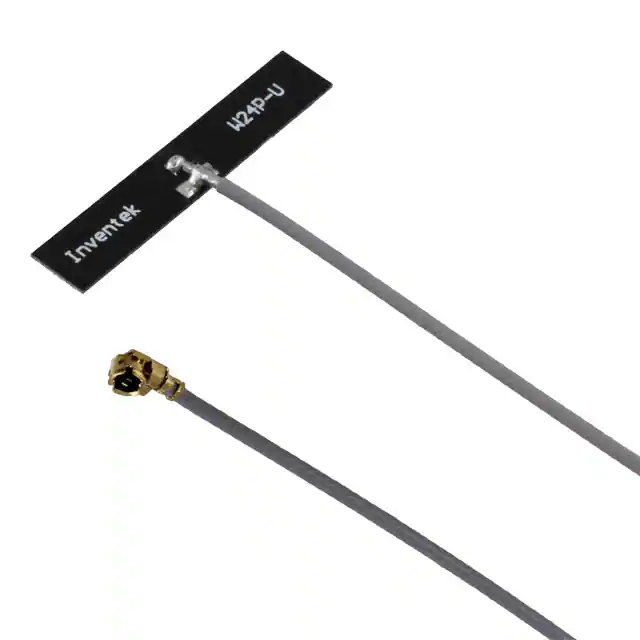

| Part Number | W24P-U | W24-ASMA-M | W24-RSMA-M | W24-SSMA-M | W245-SC |
| Manufacturer | Inventek Systems | Inventek Systems | Inventek Systems | Inventek Systems | Inventek Systems |
| Series | eS-WiFi™ | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | PCB Trace | Whip, Tilt | Whip, Right Angle | Whip, Straight | Integrated, Chip |
| Number of Bands | 1 | 1 | 1 | 1 | 2 |
| VSWR | 2 | 1.5 | 1.5 | 1.5 | 2 |
| Return Loss | - | -17dBi | -17dBi | -17dBi | - |
| Gain | 3.2dBi | 2.15dBi | 2.15dBi | 2.15dBi | 2.3dBi |
| Power - Max | - | 50 W | 50 W | 50 W | - |
| Features | Cable - 90mm | - | - | - | - |
| Termination | U.FL (UMCC), I-PEX MHF1 | SMA Male | SMA Male | SMA Male | Solder |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | Connector Mount | Surface Mount |
| Height (Max) | 0.020" (0.50mm) | 2.598" (66.00mm) | 1.829" (46.46mm) | 1.969" (50.00mm) | 0.026" (0.65mm) |
| Applications | WLAN | WLAN | WLAN | WLAN | Wi-Fi |
