Infineon Technologies TLE4945-2G
- Part No.:
- TLE4945-2G
- Manufacturer:
- Infineon Technologies
- Category:
- Switches (Solid State)
- Package:
- TO-243AA
- Datasheet:
-
TLE4945-2G.pdf
- Description:
- MAGNETIC SWITCH BIPOLAR SOT89-3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TLE4945-2G Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- TLE
- Package/Case:
- TO-243AA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Function:
- Bipolar Switch
- Technology:
- Hall Effect
- Polarization:
- North Pole, South Pole
- Sensing Range:
- 6mT Trip, -6mT Release
- Test Condition:
- 25°C
- Voltage - Supply:
- 4V ~ 18V
- Current - Supply (Max):
- 5mA
- Current - Output (Max):
- 100mA
- Output Type:
- Open Collector
- Features:
- Temperature Compensated
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- PG-SOT89
- Datasheet:
-
TLE4945-2G.pdf
| Image |  |
 |
 |
 |
|

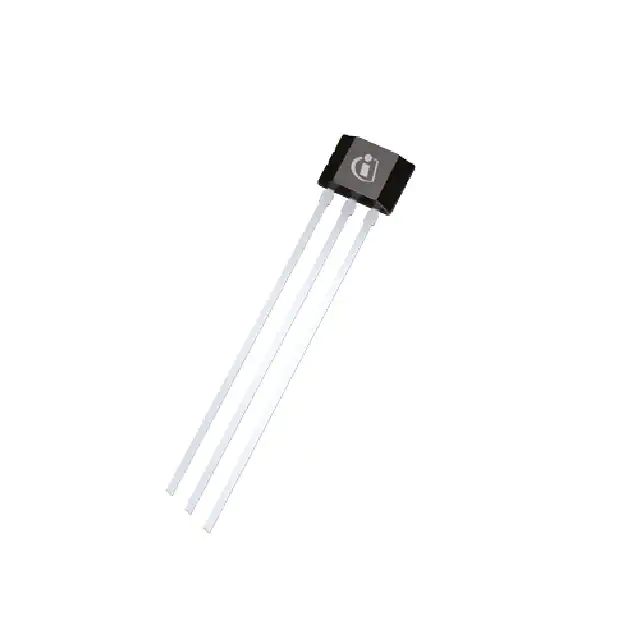

| Part Number | TLE49452GMELCOHUMA1 | TLE4945-2G | TLE4945LHALA1 | TLE4945-2L | TLE4945L |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Series | - | TLE | - | TLE | TLE |
| Package/Case | - | TO-243AA | - | 3-SSIP, SSO-3-02 | 3-SSIP, SSO-3-02 |
| Packaging | Bulk | Tape & Reel (TR) | Cut Tape (CT) | Tape & Box (TB) | Cut Tape (CT) |
| Product Status | Active | Obsolete | Last Time Buy | Obsolete | Obsolete |
| Function | - | Bipolar Switch | Bipolar Switch | Bipolar Switch | Bipolar Switch |
| Technology | - | Hall Effect | Hall Effect | Hall Effect | Hall Effect |
| Polarization | - | North Pole, South Pole | North Pole, South Pole | North Pole, South Pole | North Pole, South Pole |
| Sensing Range | - | 6mT Trip, -6mT Release | ±6mT Trip, ±10mT Release | 6mT Trip, -6mT Release | 6mT Trip, -6mT Release |
| Test Condition | - | 25°C | 25°C | 25°C | 25°C |
| Voltage - Supply | - | 4V ~ 18V | 3.8V ~ 24V | 3.8V ~ 24V | 3.8V ~ 24V |
| Current - Supply (Max) | - | 5mA | 8mA | 8mA | 8mA |
| Current - Output (Max) | - | 100mA | 100mA | 100mA | 100mA |
| Output Type | - | Open Collector | Open Collector | Open Collector | Open Collector |
| Features | - | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated |
| Operating Temperature | - | -40°C ~ 150°C (TJ) | -40°C ~ 150°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | - | Surface Mount | - | Through Hole | Through Hole |
| Supplier Device Package | - | PG-SOT89 | - | PG-SSO-3-2 | PG-SSO-3-2 |
