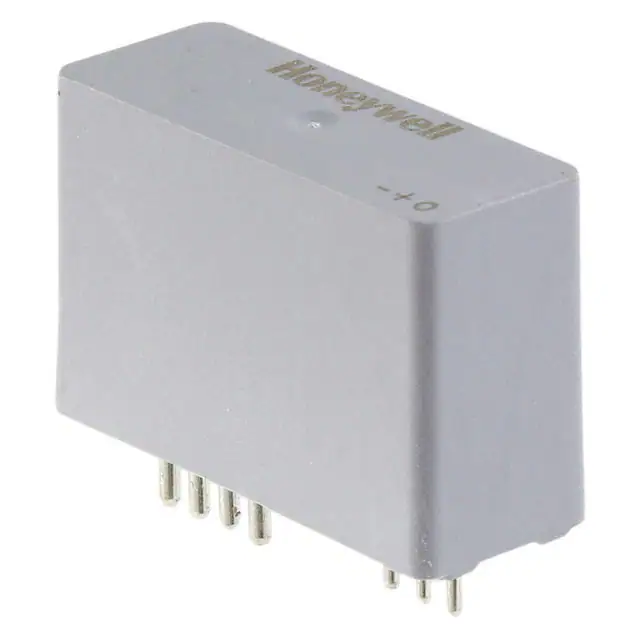

Honeywell Sensing and Productivity Solutions CSNE151-100
- Part No.:
- CSNE151-100
- Manufacturer:
- Honeywell Sensing and Productivity Solutions
- Category:
- Current Sensors
- Package:
- Module, Single Pass Through
- Datasheet:
-
CSNE151-100.pdf
- Description:
- SENSOR CURRENT HALL 36A AC/DC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CSNE151-100 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Honeywell Sensing and Productivity Solutions
- Series:
- CSN
- Package/Case:
- Module, Single Pass Through
- Packaging:
- Bulk
- Product Status:
- Active
- For Measuring:
- AC/DC
- Sensor Type:
- Hall Effect, Closed Loop
- Current - Sensing:
- 36A
- Number of Channels:
- 1
- Output:
- Ratiometric, Current
- Sensitivity:
- -
- Frequency:
- DC ~ 150kHz
- Linearity:
- ±0.2%
- Accuracy:
- ±0.5%
- Voltage - Supply:
- ±15V
- Response Time:
- 1µs
- Current - Supply (Max):
- 10mA
- Operating Temperature:
- 0°C ~ 70°C
- Grade:
- -
- Qualification:
- -
- Polarization:
- Bidirectional
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Datasheet:
-
CSNE151-100.pdf
| Image |  |
 |
 |
|
|
| Part Number | CSNE151-100 | CSNE151 | CSNE151-204 | CSNE151-005 | CSNE151-104 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Series | CSN | CSN | CSN | CSN | CSN |
| Package/Case | Module, Single Pass Through | Module, Single Pass Through | Module, Single Pass Through | Module, Single Pass Through | Module, Single Pass Through |
| Packaging | Bulk | Bulk | Bulk | Tube | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| For Measuring | AC/DC | AC/DC | AC/DC | AC/DC | AC/DC |
| Sensor Type | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop | Hall Effect, Closed Loop |
| Current - Sensing | 36A | 36A | 90A | 36A | 56A |
| Number of Channels | 1 | 1 | 1 | 1 | 1 |
| Output | Ratiometric, Current | Ratiometric, Current | Ratiometric, Current | Ratiometric, Current | Ratiometric, Current |
| Sensitivity | - | - | - | - | - |
| Frequency | DC ~ 150kHz | DC ~ 150kHz | DC ~ 150kHz | DC ~ 150kHz | DC ~ 150kHz |
| Linearity | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Voltage - Supply | ±15V | ±15V | ±15V | ±15V | ±15V |
| Response Time | 1µs | 1µs | 1µs | 1µs | 1µs |
| Current - Supply (Max) | 10mA | 10mA | 10mA | 10mA | 10mA |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Polarization | Bidirectional | Bidirectional | Bidirectional | Bidirectional | Bidirectional |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
