Grayhill Inc. 62SG15-M9-P
- Part No.:
- 62SG15-M9-P
- Manufacturer:
- Grayhill Inc.
- Category:
- Encoders
- Package:
- Datasheet:
-
62SG15-M9-P.pdf
- Description:
- ROTARY ENCODER OPT 24PPR 10"
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
62SG15-M9-P Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Grayhill Inc.
- Series:
- 62SG
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Incremental
- Output Type:
- Gray Code (Absolute)
- Pulses per Revolution:
- 24
- Voltage - Supply:
- 5V
- Actuator Type:
- 6.32mm Dia Flatted End
- Detent:
- Yes
- Built in Switch:
- Yes
- Mounting Type:
- Panel, PCB Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 1M
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
62SG15-M9-P.pdf

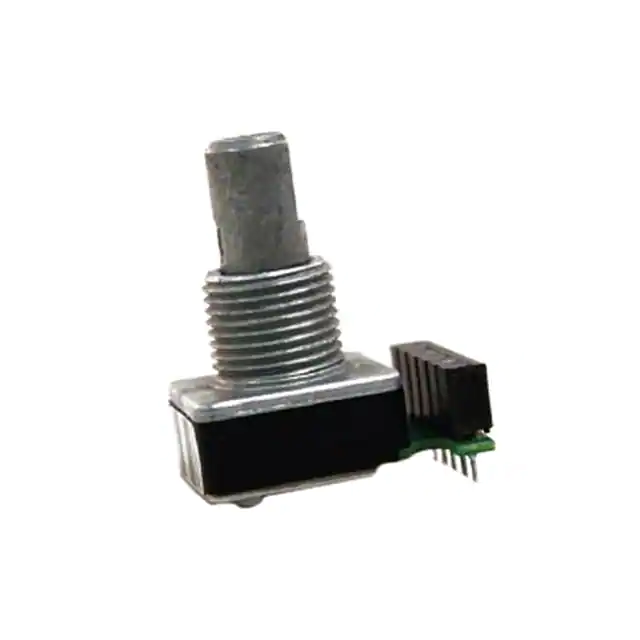

| Image |  |
 |
|
|
| Part Number | 62SG15-L5-RAC | 62SG15-L5-P | 62SG15-M5-P | 62SG15-M9-P |
| Manufacturer | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. | Grayhill Inc. |
| Series | 62SG | 62SG | 62SG | 62SG |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Incremental | Incremental | Incremental | Incremental |
| Output Type | Gray Code (Absolute) | Gray Code (Absolute) | Gray Code (Absolute) | Gray Code (Absolute) |
| Pulses per Revolution | 24 | 24 | 24 | 24 |
| Voltage - Supply | 5V | 5V | 5V | 5V |
| Actuator Type | 6.32mm Dia Flatted End | 6.32mm Dia Flatted End | 6.32mm Dia Flatted End | 6.32mm Dia Flatted End |
| Detent | Yes | Yes | Yes | Yes |
| Built in Switch | Yes | Yes | Yes | Yes |
| Mounting Type | Panel Mount | Panel, PCB Through Hole | Panel, PCB Through Hole | Panel, PCB Through Hole |
| Orientation | User Selectable | Vertical | Vertical | Vertical |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Rotational Life (Cycles Min) | 1M | 1M | 1M | 1M |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
