Fanstel Corp. BT832
- Part No.:
- BT832
- Manufacturer:
- Fanstel Corp.
- Category:
- RF Transceiver Modules and Modems
- Package:
- 16-SMD Module
- Datasheet:
-
BT832.pdf
- Description:
- RF TXRX MOD BT TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BT832 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Fanstel Corp.
- Series:
- -
- Package/Case:
- 16-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v5.0
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 8Mbps
- Power - Output:
- 4dBm
- Sensitivity:
- -96dBm
- Serial Interfaces:
- I2C, I2S, SPI, UART
- Antenna Type:
- Integrated, Trace
- Utilized IC / Part:
- nRF52832
- Memory Size:
- 512kB Flash, 64kB RAM
- Voltage - Supply:
- 1.7V ~ 3.6V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
- Datasheet:
-
BT832.pdf
| Image |  |
 |
 |
 |
 |

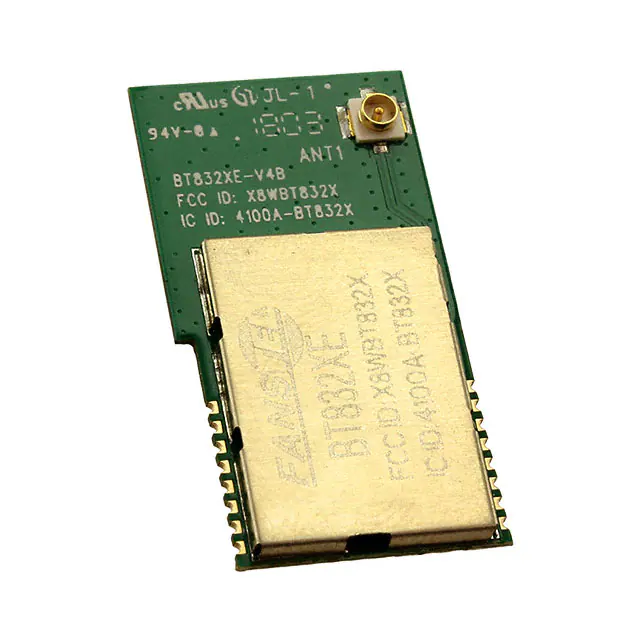

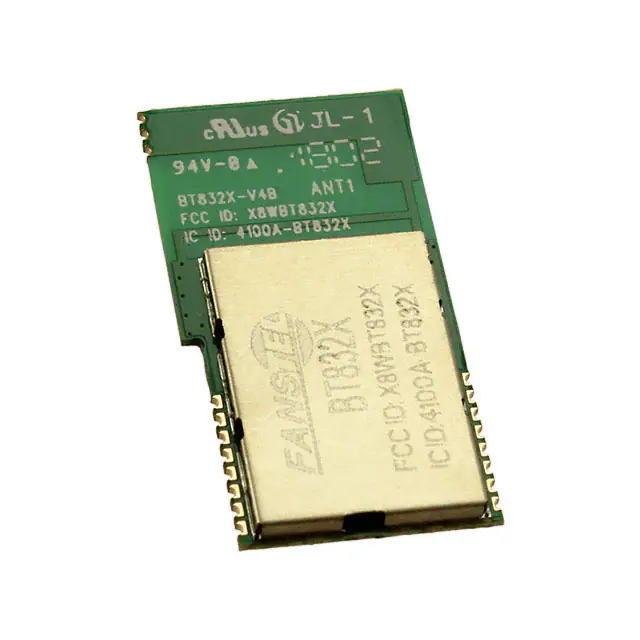

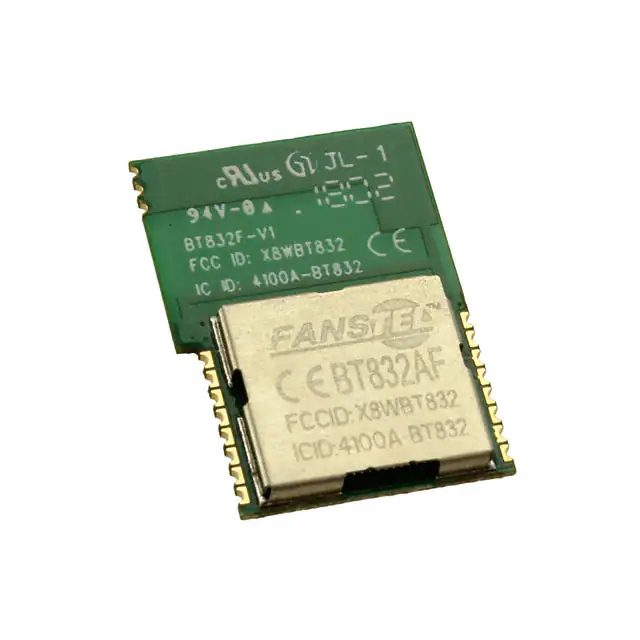

| Part Number | BT832 | BT832F | BT832X | BT832XE | BT832AF |
| Manufacturer | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. |
| Series | - | - | - | - | - |
| Package/Case | 16-SMD Module | 16-SMD Module | 16-SMD Module | 16-SMD Module | 16-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | - | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 8Mbps | 8Mbps | 8Mbps | 8Mbps | 8Mbps |
| Power - Output | 4dBm | 4dBm | 20dBm | 20dBm | 4dBm |
| Sensitivity | -96dBm | -96dBm | -105dBm | -105dBm | -96dBm |
| Serial Interfaces | I2C, I2S, SPI, UART | I2C, I2S, SPI, UART | I2C, SPI, UART | I2C, SPI, UART | I2C, I2S, SPI, UART |
| Antenna Type | Integrated, Trace | Integrated, Trace | Integrated, Trace | Antenna Not Included, U.FL | Integrated, Trace |
| Utilized IC / Part | nRF52832 | nRF52832 | nRF52832 | nRF52832 | nRF52810 |
| Memory Size | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 192kB Flash, 24kB RAM |
| Voltage - Supply | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.7V ~ 3.6V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
