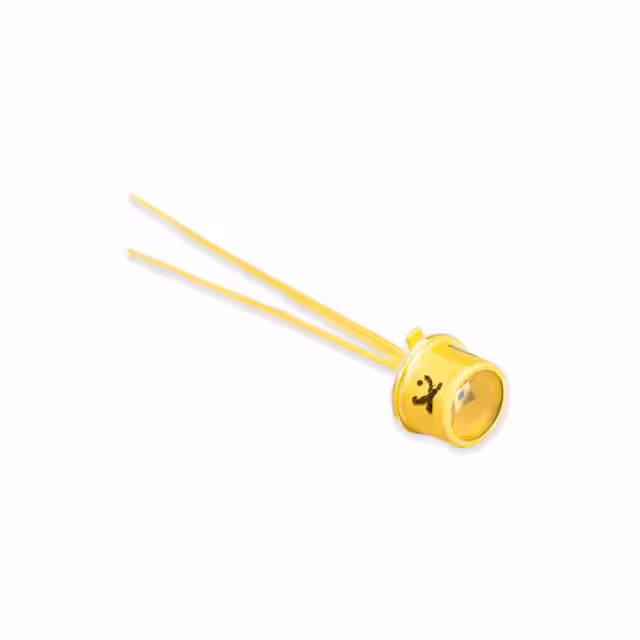

Excelitas Technologies C30902SH-TC
- Part No.:
- C30902SH-TC
- Manufacturer:
- Excelitas Technologies
- Category:
- Photodiodes
- Package:
- TO-66
- Datasheet:
-
C30902SH-TC.pdf
- Description:
- SENSOR PHOTODIODE 830NM TO66
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C30902SH-TC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Excelitas Technologies
- Series:
- C30902
- Package/Case:
- TO-66
- Packaging:
- Box
- Product Status:
- Active
- Wavelength:
- 830nm
- Color - Enhanced:
- -
- Spectral Range:
- 400nm ~ 1000nm
- Diode Type:
- Avalanche
- Responsivity @ nm:
- 128 A/W @ 830nm
- Response Time:
- 500ps
- Voltage - DC Reverse (Vr) (Max):
- 225 V
- Current - Dark (Typ):
- 15nA
- Active Area:
- 0.2mm²
- Viewing Angle:
- -
- Operating Temperature:
- -40°C ~ 70°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Datasheet:
-
C30902SH-TC.pdf
| Image |  |
|
 |
|
| Part Number | C30902SH-DTC | C30902SH-TC | C30902SH | C30902SH-2 |
| Manufacturer | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies |
| Series | C30902 | C30902 | C30902 | C30902 |
| Package/Case | TO-66 | TO-66 | TO-18 | TO-18 |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active |
| Wavelength | 830nm | 830nm | 830nm | 900nm |
| Color - Enhanced | - | - | - | - |
| Spectral Range | 400nm ~ 1000nm | 400nm ~ 1000nm | 400nm ~ 1000nm | 400nm ~ 1000nm |
| Diode Type | Avalanche | Avalanche | Avalanche | Avalanche |
| Responsivity @ nm | 128 A/W @ 830nm | 128 A/W @ 830nm | 128 A/W @ 830nm | 108 A/W @ 900nm |
| Response Time | 500ps | 500ps | 500ps | 500ps |
| Voltage - DC Reverse (Vr) (Max) | 225 V | 225 V | 225 V | 225 V |
| Current - Dark (Typ) | 15nA | 15nA | 15nA | 15nA |
| Active Area | 0.2mm² | 0.2mm² | 0.2mm² | 0.2mm² |
| Viewing Angle | - | - | - | - |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
