EPC EPC2021ENGR
- Part No.:
- EPC2021ENGR
- Manufacturer:
- EPC
- Category:
- FETs, MOSFETs
- Package:
- Die
- Datasheet:
-
EPC2021ENGR.pdf
- Description:
- TRANS GAN 80V 60A BUMPED DIE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EPC2021ENGR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- EPC
- Series:
- eGaN®
- Package/Case:
- Die
- Packaging:
- Cut Tape (CT)
- Product Status:
- Obsolete
- FET Type:
- N-Channel
- Technology:
- GaNFET (Gallium Nitride)
- Drain to Source Voltage (Vdss):
- 80 V
- Current - Continuous Drain (Id) @ 25°C:
- 60A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 5V
- Rds On (Max) @ Id, Vgs:
- 2.5mOhm @ 29A, 5V
- Vgs(th) (Max) @ Id:
- 2.5V @ 14mA
- Gate Charge (Qg) (Max) @ Vgs:
- 15 nC @ 5 V
- Vgs (Max):
- +6V, -4V
- Input Capacitance (Ciss) (Max) @ Vds:
- 1700 pF @ 40 V
- FET Feature:
- -
- Power Dissipation (Max):
- -
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- Die
- Datasheet:
-
EPC2021ENGR.pdf

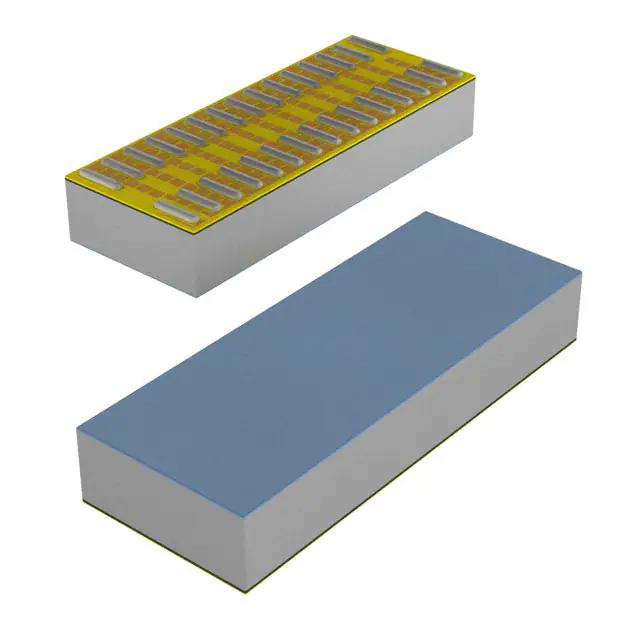

| Image |  |
| Part Number | EPC2021ENGR |
| Manufacturer | EPC |
| Series | eGaN® |
| Package/Case | Die |
| Packaging | Cut Tape (CT) |
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 29A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 14mA |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 5 V |
| Vgs (Max) | +6V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
