Eaton - Electronics Division CTX68-1A-R
- Part No.:
- CTX68-1A-R
- Manufacturer:
- Eaton - Electronics Division
- Category:
- Arrays, Signal Transformers
- Package:
- Nonstandard
- Datasheet:
-
CTX68-1A-R.pdf
- Description:
- INDUCT ARRAY 2 COIL 67.87UH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CTX68-1A-R Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Electronics Division
- Series:
- OCTA-PAC® PLUS
- Package/Case:
- Nonstandard
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Number of Coils:
- 2
- Inductance - Connected In Parallel:
- 67.87 µH
- Inductance - Connected In Series:
- 271.5 µH
- Tolerance:
- ±25%
- Current Rating - Parallel:
- 920 mA
- Current Rating - Series:
- 460 mA
- Current Saturation - Parallel:
- 990 mA
- Current Saturation - Series:
- 490 mA
- DC Resistance (DCR) - Parallel:
- 437mOhm Max
- DC Resistance (DCR) - Series:
- 1.749Ohm Max
- Shielding:
- Unshielded
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.450" L x 0.450" W (11.43mm x 11.43mm)
- Height:
- 0.165" (4.19mm)
- Datasheet:
-
CTX68-1A-R.pdf

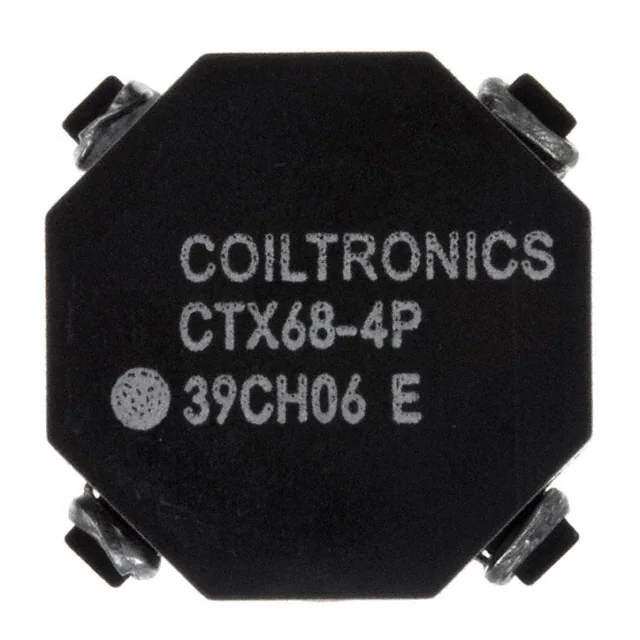

| Image |  |
 |
|
|
|
| Part Number | CTX68-4P-R | CTX68-2P-R | CTX68-3P-R | CTX68-1P-R | CTX68-1-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Series | Econo-Pac™ | Econo-Pac™ | Econo-Pac™ | Econo-Pac™ | OCTA-PAC® |
| Package/Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 67.37 µH | 68.85 µH | 68.84 µH | 68.4 µH | 67.6 µH |
| Inductance - Connected In Series | 269.5 µH | 275.4 µH | 275.35 µH | 273.61 µH | 270.4 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 1.1 A | 760 mA | 840 mA | 660 mA | 540 mA |
| Current Rating - Series | 550 mA | 380 mA | 420 mA | 330 mA | 270 mA |
| Current Saturation - Parallel | - | - | - | - | - |
| Current Saturation - Series | - | - | - | - | - |
| DC Resistance (DCR) - Parallel | 238mOhm Max | 362mOhm Max | 328mOhm Max | 373mOhm Max | 516mOhm Max |
| DC Resistance (DCR) - Series | 952mOhm Max | 1.445Ohm Max | 1.312Ohm Max | 1.49Ohm Max | 2.064Ohm Max |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.250" (6.35mm) | 0.235" (5.97mm) | 0.190" (4.83mm) | 0.165" (4.19mm) | 0.165" (4.19mm) |
