Eaton - Bussmann Electrical Division LPJ-30SP
- Part No.:
- LPJ-30SP
- Manufacturer:
- Eaton - Bussmann Electrical Division
- Category:
- Electrical, Specialty Fuses
- Package:
- Cylindrical, Alarm Indicating
- Datasheet:
-
LPJ-30SP.pdf
- Description:
- FUSE CARTRIDGE 30A 600VAC/300VDC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LPJ-30SP Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Bussmann Electrical Division
- Series:
- LOW-PEAK™ LPJ
- Package / Case:
- Cylindrical, Alarm Indicating
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Requires Holder
- Fuse Type:
- Cartridge
- Current Rating (Amps):
- 30A
- Voltage Rating - AC:
- 600 VAC
- Voltage Rating - DC:
- 300 VDC
- Response Time:
- Slow Blow
- Applications:
- Electrical, Industrial
- Features:
- -
- Class:
- J
- Approval Agency:
- CE, CSA, UL
- Operating Temperature:
- -
- Breaking Capacity @ Rated Voltage:
- 300kA AC, 100kA DC
- Size / Dimension:
- 0.810" Dia x 2.250" L (20.57mm x 57.15mm)
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
LPJ-30SP.pdf

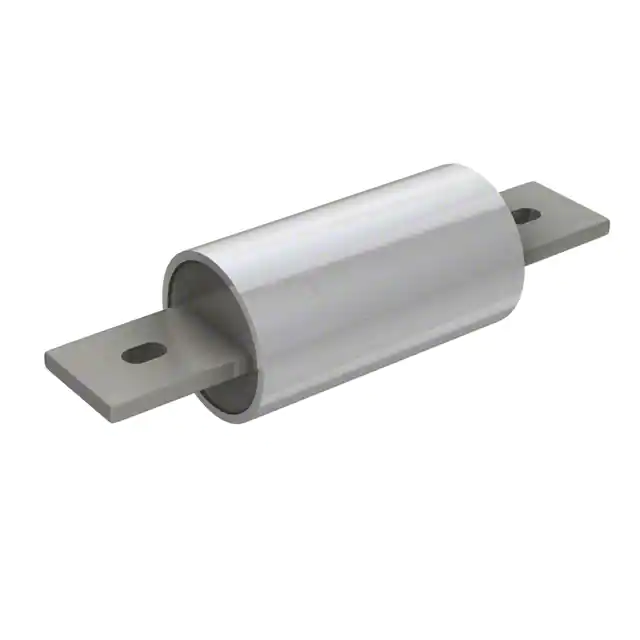

| Image |  |
 |
|
 |
 |
| Part Number | LPJ-30SP | LPJ-40SP | LPJ-60SP | LPJ-125SP | LPJ-20SP |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| Series | LOW-PEAK™ LPJ | LOW-PEAK™ LPJ | LOW-PEAK™ LPJ | LOW-PEAK™ LPJ | LOW-PEAK™ LPJ |
| Package / Case | Cylindrical, Alarm Indicating | Cartridge, Non-Standard | Cartridge, Non-Standard | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Alarm Indicating |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Requires Holder | Requires Holder | Requires Holder | Bolt Mount | Requires Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 30A | 40A | 60A | 125A | 20A |
| Voltage Rating - AC | 600 VAC | 600 VAC | 600 VAC | 600 VAC | 600 VAC |
| Voltage Rating - DC | 300 VDC | 300 VDC | 300 VDC | 300 VDC | 300 VDC |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - |
| Class | J | J | J | J | J |
| Approval Agency | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 300kA AC, 100kA DC | 300kA AC, 100kA DC | 300kA AC, 100kA DC | 300kA AC, 100kA DC | 300kA AC, 100kA DC |
| Size / Dimension | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | 1.060" Dia x 2.380" L (26.92mm x 60.45mm) | 1.060" Dia x 2.380" L (26.92mm x 60.45mm) | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
