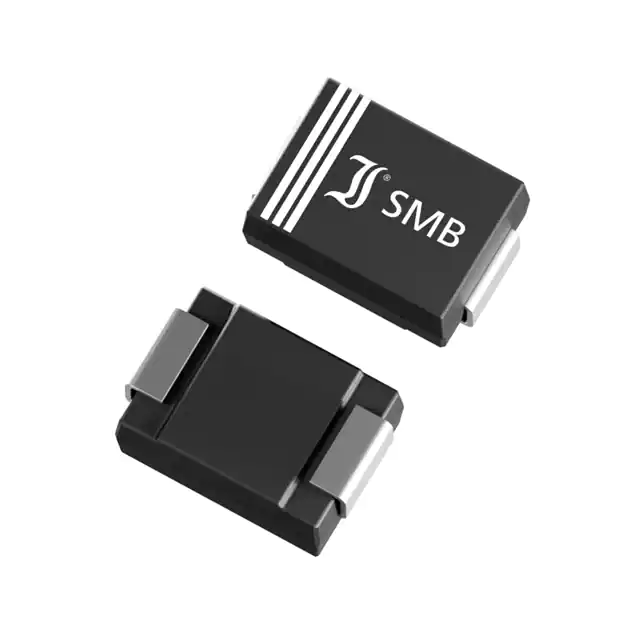

Diotec Semiconductor P6SMBJ15CA
- Part No.:
- P6SMBJ15CA
- Manufacturer:
- Diotec Semiconductor
- Category:
- TVS Diodes
- Package:
- DO-214AA, SMB
- Datasheet:
-
P6SMBJ15CA.pdf
- Description:
- TVS SMB 15V 600W BI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
P6SMBJ15CA Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diotec Semiconductor
- Package/Case:
- DO-214AA, SMB
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Zener
- Unidirectional Channels:
- -
- Bidirectional Channels:
- 1
- Voltage - Reverse Standoff (Typ):
- 15V
- Voltage - Breakdown (Min):
- 16.7V
- Voltage - Clamping (Max) @ Ipp:
- 24.4V
- Current - Peak Pulse (10/1000µs):
- 24.6A
- Power - Peak Pulse:
- 600W
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -50°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DO-214AA (SMB)
- Datasheet:
-
P6SMBJ15CA.pdf
| Image |  |
 |
| Part Number | P6SMBJ15CA | P6SMBJ15CA-AQ |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor |
| Package/Case | DO-214AA, SMB | DO-214AA, SMB |
| Series | - | - |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active |
| Type | Zener | Zener |
| Unidirectional Channels | - | - |
| Bidirectional Channels | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 15V | 15V |
| Voltage - Breakdown (Min) | 16.7V | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V | 24.4V |
| Current - Peak Pulse (10/1000µs) | 24.6A | 24.6A |
| Power - Peak Pulse | 600W | 600W |
| Power Line Protection | No | No |
| Applications | General Purpose | - |
| Capacitance @ Frequency | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Grade | - | Automotive |
| Qualification | - | AEC-Q101 |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DO-214AA (SMB) | DO-214AA (SMB) |
