Digi XB24CZ7UIT-004
- Part No.:
- XB24CZ7UIT-004
- Manufacturer:
- Digi
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
XB24CZ7UIT-004.pdf
- Description:
- RF TXRX MOD 802.15.4U.FL TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XB24CZ7UIT-004 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Digi
- Series:
- XBee® ZigBee®
- Package/Case:
- Module
- Packaging:
- Tray
- Product Status:
- Not For New Designs
- Programmable:
- Verified
- RF Family/Standard:
- 802.15.4
- Protocol:
- Zigbee®
- Modulation:
- DSSS
- Frequency:
- 2.4GHz
- Data Rate:
- 1Mbps
- Power - Output:
- 8dBm
- Sensitivity:
- -102dBm
- Serial Interfaces:
- SPI, UART
- Antenna Type:
- Antenna Not Included, U.FL
- Utilized IC / Part:
- EM357
- Memory Size:
- -
- Voltage - Supply:
- 2.1V ~ 3.6V
- Current - Receiving:
- 28mA ~ 45mA
- Current - Transmitting:
- 33mA ~ 59mA
- Mounting Type:
- Through Hole
- Operating Temperature:
- -40°C ~ 85°C
- Datasheet:
-
XB24CZ7UIT-004.pdf

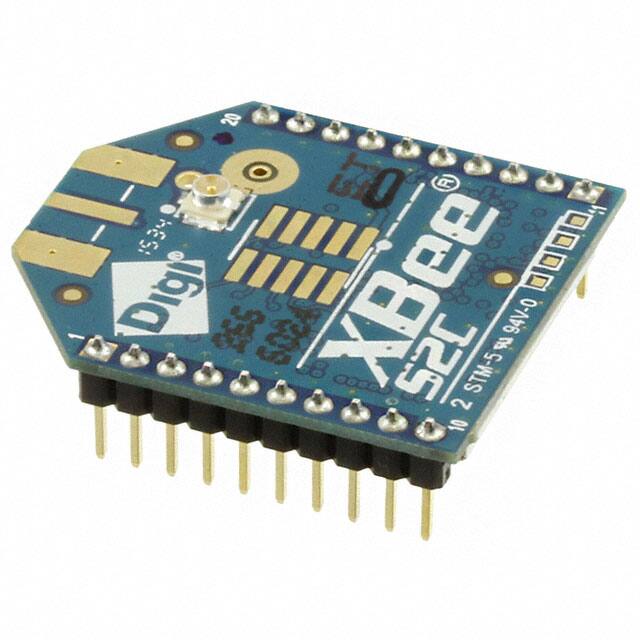

| Image |  |
 |
| Part Number | XB24CZ7UIT-004 | XB24CZ7UITB003 |
| Manufacturer | Digi | Digi |
| Series | XBee® ZigBee® | XBee® ZigBee® |
| Package/Case | Module | Module |
| Packaging | Tray | Tray |
| Product Status | Not For New Designs | Not For New Designs |
| Programmable | Verified | Verified |
| RF Family/Standard | 802.15.4 | 802.15.4 |
| Protocol | Zigbee® | Zigbee® |
| Modulation | DSSS | DSSS |
| Frequency | 2.4GHz | 2.4GHz |
| Data Rate | 1Mbps | 1Mbps |
| Power - Output | 8dBm | 8dBm |
| Sensitivity | -102dBm | -102dBm |
| Serial Interfaces | SPI, UART | SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Utilized IC / Part | EM357 | EM357 |
| Memory Size | - | 32kB Flash, 2kB RAM |
| Voltage - Supply | 2.1V ~ 3.6V | 2.1V ~ 3.6V |
| Current - Receiving | 28mA ~ 45mA | 28mA ~ 45mA |
| Current - Transmitting | 33mA ~ 59mA | 33mA ~ 59mA |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
