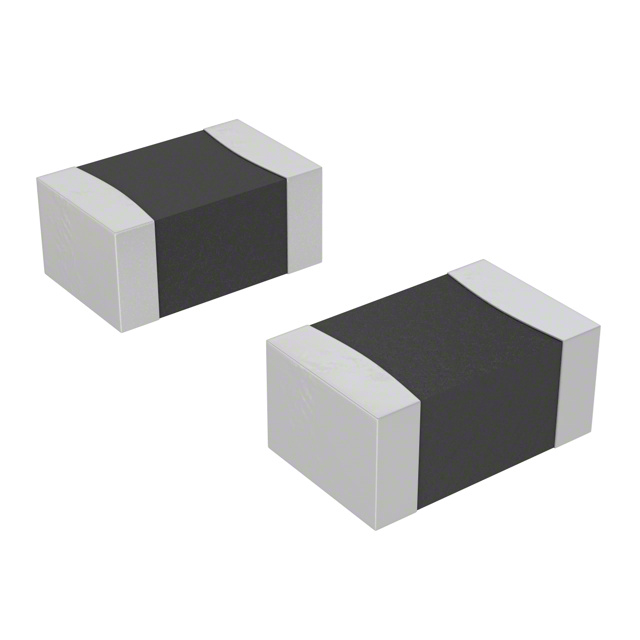

Cornell Dubilier Knowles FCP0805H101G
- Part No.:
- FCP0805H101G
- Manufacturer:
- Cornell Dubilier Knowles
- Category:
- Film Capacitors
- Package:
- 0805 (2012 Metric)
- Datasheet:
-
FCP0805H101G.pdf
- Description:
- CAP FILM 100PF 2% 50VDC 0805
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FCP0805H101G Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Cornell Dubilier Knowles
- Package/Case:
- 0805 (2012 Metric)
- Capacitance:
- 100 pF
- Tolerance:
- ±2%
- Voltage Rating - AC:
- -
- Voltage Rating - DC:
- 50V
- Dielectric Material:
- Polyphenylene Sulfide (PPS)
- ESR (Equivalent Series Resistance):
- -
- Operating Temperature:
- -55°C ~ 125°C
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):
- 0.043" (1.09mm)
- Termination:
- Solder Pads
- Lead Spacing:
- -
- Applications:
- High Frequency, Switching
- Ratings:
- -
- Features:
- -
- Datasheet:
-
FCP0805H101G.pdf
| Image |  |
 |
| Part Number | FCP0805H101G | FCP0805H101G-J1 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Capacitance | 100 pF | 100 pF |
| Tolerance | ±2% | ±2% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 50V | 50V |
| Dielectric Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.043" (1.09mm) | 0.043" (1.09mm) |
| Termination | Solder Pads | Solder Pads |
| Lead Spacing | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
