Broadcom Limited ASSR-4118-003E
- Part No.:
- ASSR-4118-003E
- Manufacturer:
- Broadcom Limited
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SOP (0.173", 4.40mm)
- Datasheet:
-
ASSR-4118-003E.pdf
- Description:
- SSR RELAY SPST-NO 100MA 0-400V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ASSR-4118-003E Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- ASSR
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.3VDC
- Voltage - Load:
- 0 V ~ 400 V
- Load Current:
- 100 mA
- On-State Resistance (Max):
- 35 Ohms
- Termination Style:
- Gull Wing
- Operating Temperature:
- -40°C ~ 85°C
- Supplier Device Package:
- 4-SOP (2.54mm)
- Approval Agency:
- CSA, UL
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
ASSR-4118-003E.pdf
| Image |  |
|
 |
|
 |

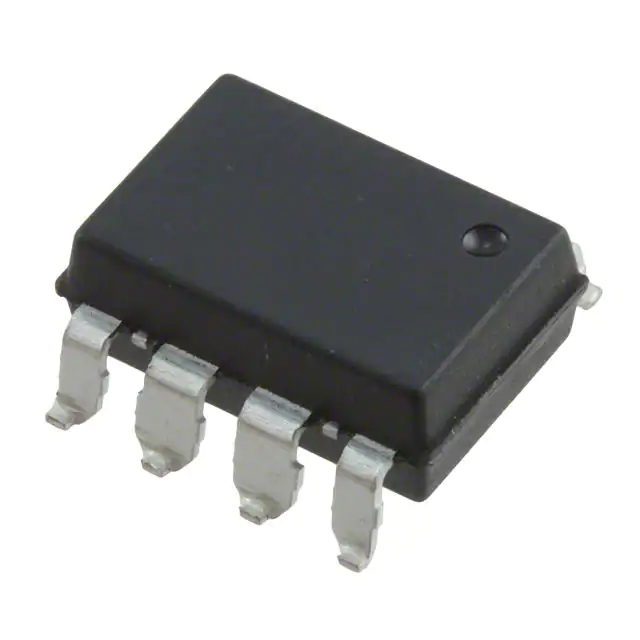

| Part Number | ASSR-1218-003E | ASSR-1218-503E | ASSR-4118-003E | ASSR-4110-003E | ASSR-1228-302E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | ASSR | ASSR | ASSR | ASSR | ASSR |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) x 2 |
| Output Type | AC, DC | AC, DC | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 1.3VDC | 1.3VDC | 1.3VDC | 1.3VDC | 1.3VDC |
| Voltage - Load | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 400 V | 0 V ~ 400 V | 0 V ~ 60 V |
| Load Current | 200 mA | 200 mA | 100 mA | 120 mA | 200 mA |
| On-State Resistance (Max) | 10 Ohms | 10 Ohms | 35 Ohms | 25 Ohms | 10 Ohms |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Supplier Device Package | 4-SO | 4-SO | 4-SOP (2.54mm) | 4-SOP (2.54mm) | 8-DIP Gull Wing |
| Approval Agency | CSA, UL | CSA, UL | CSA, UL | CSA, UL | CSA, UL |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
