Broadcom Limited AMMP-6220-BLK
- Part No.:
- AMMP-6220-BLK
- Manufacturer:
- Broadcom Limited
- Category:
- RF Amplifiers
- Package:
- 8-QFN
- Description:
- IC RF AMP DBS 6GHZ-20GHZ 8SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMMP-6220-BLK Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- -
- Package/Case:
- 8-QFN
- Packaging:
- Strip
- Product Status:
- Obsolete
- Frequency:
- 6GHz ~ 20GHz
- P1dB:
- 10dBm
- Gain:
- 22dB
- Noise Figure:
- 2.5dB
- RF Type:
- DBS, LMDS, VSAT
- Voltage - Supply:
- 3V ~ 5V
- Current - Supply:
- 55mA
- Test Frequency:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SMD (5x5)

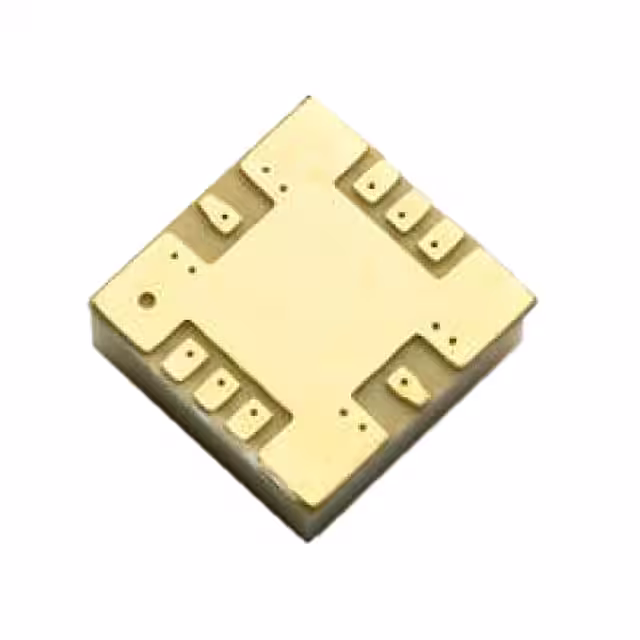

| Image |  |
 |
|
|
|
| Part Number | AMMP-6220-BLK | AMMP-5618-TR1 | AMMP-5618-BLK | AMMP-6220-TR2 | AMMP-6220-TR1 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | - | - | - | - | - |
| Package/Case | 8-QFN | 8-SMD, No Lead | 8-SMD, No Lead | 8-QFN | 8-QFN |
| Packaging | Strip | Tape & Reel (TR) | Strip | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Frequency | 6GHz ~ 20GHz | 6GHz ~ 20GHz | 6GHz ~ 20GHz | 6GHz ~ 20GHz | 6GHz ~ 20GHz |
| P1dB | 10dBm | 19dBm | 19dBm | 10dBm | 10dBm |
| Gain | 22dB | 13dB | 13dB | 22dB | 22dB |
| Noise Figure | 2.5dB | 4.4dB | 4.4dB | 2.5dB | 2.5dB |
| RF Type | DBS, LMDS, VSAT | ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT | DBS, LMDS, VSAT | ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT | ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT |
| Voltage - Supply | 3V ~ 5V | 5V | 3V ~ 5V | 3V ~ 7V | 3V ~ 7V |
| Current - Supply | 55mA | 107mA ~ 140mA | 107mA | 55mA ~ 70mA | 55mA ~ 70mA |
| Test Frequency | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SMD (5x5) | 8-SMD (5x5) | 8-SMD (5x5) | 8-SMD (5x5) | 8-SMD (5x5) |
