Bourns Inc. 3315Y-025-016L
- Part No.:
- 3315Y-025-016L
- Manufacturer:
- Bourns Inc.
- Category:
- Encoders
- Package:
- Datasheet:
-
3315Y-025-016L.pdf
- Description:
- ROTARY ENCODER MECHANICAL 16PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3315Y-025-016L Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- 3315
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Mechanical
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 16
- Voltage - Supply:
- -
- Actuator Type:
- 1/8" Dia Slotted End
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- PCB, Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 25K
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
3315Y-025-016L.pdf
| Image |  |
 |
|
 |
 |

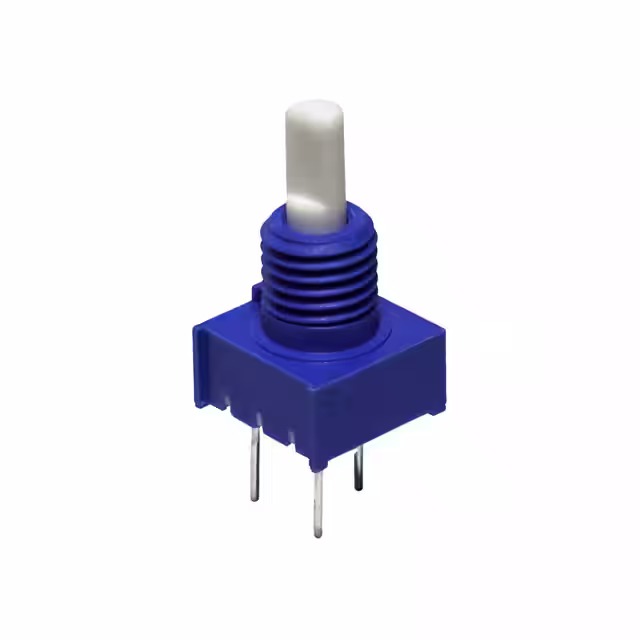

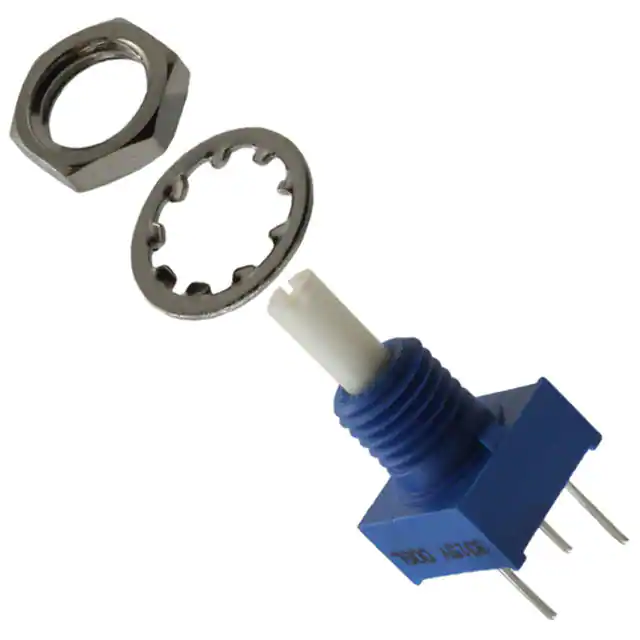

| Part Number | 3315Y-025-016L | 3315Y-001-016L | 3315Y-001-006L | 3315Y-101-016L | 3315Y-111-016L |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | 3315 | 3315 | 3315 | 3315 | 3315 |
| Packaging | Bulk | Bulk | Bulk | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Mechanical | Mechanical | Mechanical | Mechanical | - |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | - |
| Pulses per Revolution | 16 | 16 | 6 | 16 | - |
| Voltage - Supply | - | - | - | - | - |
| Actuator Type | 1/8" Dia Slotted End | 1/8" Dia Slotted End | 1/8" Dia Slotted End | 1/8" Dia Flatted End | - |
| Detent | No | No | No | No | - |
| Built in Switch | No | No | No | No | - |
| Mounting Type | PCB, Through Hole | Panel, PCB Through Hole | Panel, PCB Through Hole | Panel, PCB Through Hole | - |
| Orientation | Vertical | Vertical | Vertical | Vertical | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | - |
| Rotational Life (Cycles Min) | 25K | 25K | 100K | 25K | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
