Beacon EmbeddedWorks SOMOMAP3530-12-1783JFIR
- Part No.:
- SOMOMAP3530-12-1783JFIR
- Manufacturer:
- Beacon EmbeddedWorks
- Package:
- Datasheet:
-
SOMOMAP3530-12-1783JFIR.pdf
- Description:
- IC MOD OMAP3530 600MHZ 256MB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SOMOMAP3530-12-1783JFIR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Beacon EmbeddedWorks
- Series:
- OMAP35x
- Packaging:
- Bulk
- Product Status:
- Active
- Module/Board Type:
- MPU, DSP Core
- Core Processor:
- OMAP3530
- Co-Processor:
- TMS320C64x (DSP)
- Speed:
- 600MHz
- Flash Size:
- 512MB (NAND), 16MB (NOR)
- RAM Size:
- 256MB
- Connector Type:
- -
- Size / Dimension:
- 3.010" L x 1.230" W (76.50mm x 31.20mm)
- Operating Temperature:
- -40°C ~ 85°C
- Datasheet:
-
SOMOMAP3530-12-1783JFIR.pdf
| Image |  |
 |
 |
 |
|

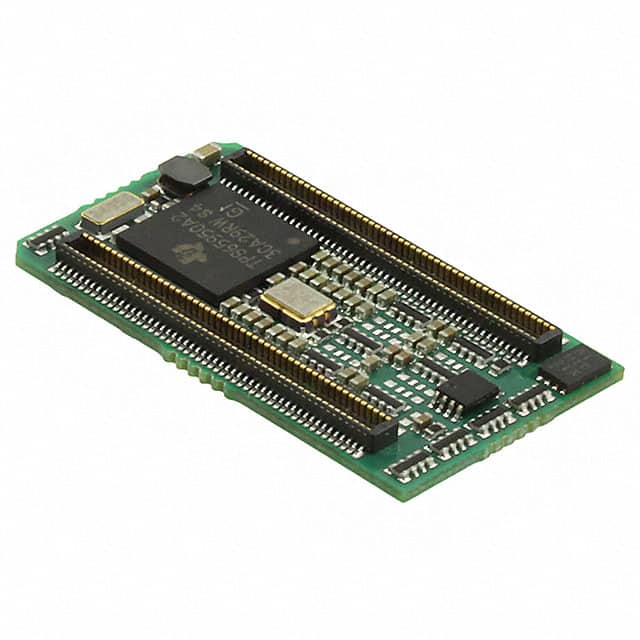

| Part Number | SOMOMAP3530-12-1783JFIR | SOMOMAP3530-11-1782IFXR | SOMOMAP3530-21-1780AGIR | SOMOMAP3530-10-1672IFCR | SOMOMAP3530-10-1672IFXR |
| Manufacturer | Beacon EmbeddedWorks | Beacon EmbeddedWorks | Beacon EmbeddedWorks | Beacon EmbeddedWorks | Beacon EmbeddedWorks |
| Series | OMAP35x | OMAP35x | OMAP35x | OMAP35x | OMAP35x |
| Packaging | Bulk | Bulk | Bulk | Box | Box |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete |
| Module/Board Type | MPU, DSP Core | MPU, DSP Core | MPU Core | MPU Core | MPU Core |
| Core Processor | OMAP3530 | ARM® Cortex®-A8, OMAP3530 | ARM® Cortex®-A8, OMAP3530 | ARM® Cortex®-A8, OMAP3503 | ARM® Cortex®-A8, OMAP3503 |
| Co-Processor | TMS320C64x (DSP) | TMS320C64x (DSP) | - | - | - |
| Speed | 600MHz | 600MHz | 600MHz | 600MHz | 600MHz |
| Flash Size | 512MB (NAND), 16MB (NOR) | 512MB (NAND), 8MB (NOR) | 512MB | 256MB (NAND), 8MB (NOR) | 256MB (NAND), 8MB (NOR) |
| RAM Size | 256MB | 256MB | 256MB | 128MB | 128MB |
| Connector Type | - | Board-to-Board (BTB) Socket - 240 | Board-to-Board (BTB) Socket - 200 | Board-to-Board (BTB) Socket - 480 | Board-to-Board (BTB) Socket - 480 |
| Size / Dimension | 3.010" L x 1.230" W (76.50mm x 31.20mm) | 1.230" L x 3.010" W (31.20mm x 76.50mm) | 0.590" L x 1.060" W (15.00mm x 27.00mm) | 1.230" L x 3.010" W (31.20mm x 76.50mm) | 1.230" L x 3.010" W (31.20mm x 76.50mm) |
| Operating Temperature | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | -20°C ~ 85°C |
