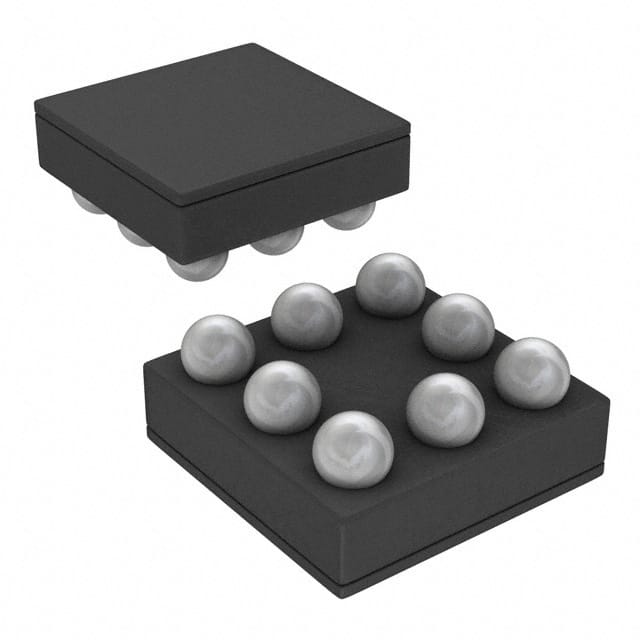

Analog Devices Inc./Maxim Integrated MAX3206EEBL
- Part No.:
- MAX3206EEBL
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- TVS Diodes
- Package:
- 8-WFBGA, CSPBGA
- Datasheet:
-
MAX3206EEBL.pdf
- Description:
- Trans Voltage Suppressor Diode
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MAX3206EEBL Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Package/Case:
- 8-WFBGA, CSPBGA
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Steering (Rail to Rail)
- Unidirectional Channels:
- 6
- Bidirectional Channels:
- -
- Voltage - Reverse Standoff (Typ):
- -
- Voltage - Breakdown (Min):
- -
- Voltage - Clamping (Max) @ Ipp:
- -
- Current - Peak Pulse (10/1000µs):
- -
- Power - Peak Pulse:
- -
- Power Line Protection:
- No
- Applications:
- General Purpose
- Capacitance @ Frequency:
- -
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-UCSP (1.52x1.52)
- Datasheet:
-
MAX3206EEBL.pdf
| Image |  |
 |
| Part Number | MAX3206EEBL | MAX3206EEBL+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Package/Case | 8-WFBGA, CSPBGA | 9-WFBGA, WLBGA |
| Series | - | - |
| Packaging | Bulk | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 6 | 6 |
| Bidirectional Channels | - | - |
| Voltage - Reverse Standoff (Typ) | - | - |
| Voltage - Breakdown (Min) | - | - |
| Voltage - Clamping (Max) @ Ipp | - | - |
| Current - Peak Pulse (10/1000µs) | - | - |
| Power - Peak Pulse | - | - |
| Power Line Protection | No | No |
| Applications | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-UCSP (1.52x1.52) | 9-WLP |
