Amphenol PCTEL GL4X4-SF-PLK
- Part No.:
- GL4X4-SF-PLK
- Manufacturer:
- Amphenol PCTEL
- Category:
- RF Antennas
- Package:
- Datasheet:
-
GL4X4-SF-PLK.pdf
- Description:
- RF ANT 657.5MHZ DOME SMA MALE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
GL4X4-SF-PLK Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol PCTEL
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz
- Frequency Range:
- 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz
- Antenna Type:
- Dome
- Number of Bands:
- 10
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi
- Power - Max:
- 50 W
- Features:
- Cable - 5.18m
- Termination:
- SMA Male (2)
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Panel Mount
- Height (Max):
- 3.012" (76.50mm)
- Applications:
- 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE
- Datasheet:
-
GL4X4-SF-PLK.pdf

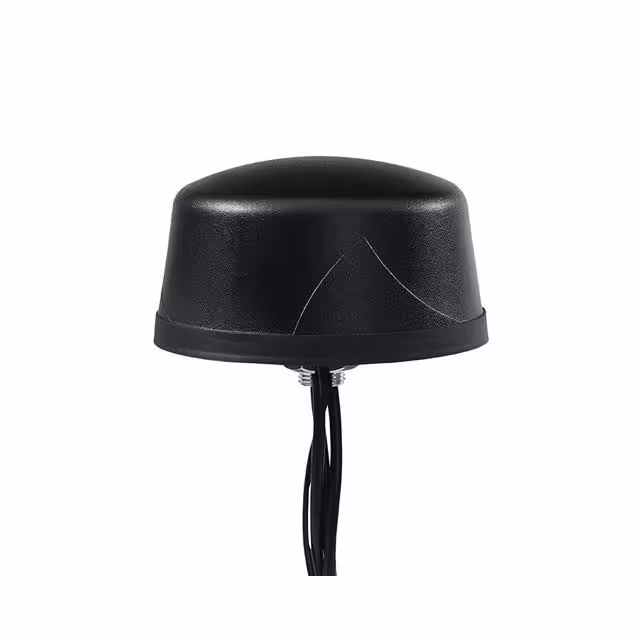

| Image |  |
 |
| Part Number | GL4X4-SF-PLK | GL4X4MIMO-SF |
| Manufacturer | Amphenol PCTEL | Amphenol PCTEL |
| Series | - | - |
| Packaging | Box | Box |
| Product Status | Active | Active |
| RF Family/Standard | Cellular, Navigation | Navigation, WiFi |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 767.5MHz, 892MHz, 1.586GHz, 1.955GHz, 2.002GHz, 2.495GHz, 3.6GHz, 5.55GHz | 1.5865GHz, 2.45GHz, 5.445GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 733MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 1.805GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | 1.565GHz ~ 1.608GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.99GHz |
| Antenna Type | Dome | Dome |
| Number of Bands | 10 | 3 |
| VSWR | 2 | 1.5 |
| Return Loss | - | - |
| Gain | -0.2dBi, -1.4dBi, 1.1dBi, 0dBi, 0dBi, 2.1dBi, -2dBic, 3dBic, 4.4dBi, 1.7dBi, 1.5dBi, 4.8dBi, 2.2dBi, 4.7dBi, 2.6dBi, 5.8dBi | -2dBic, 3dBic, 4dBi, 4dBi |
| Power - Max | 50 W | 25 W |
| Features | Cable - 5.18m | LNA |
| Termination | SMA Male (2) | RP-SMA, SMA |
| Ingress Protection | IP67 | IP67 |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Height (Max) | 3.012" (76.50mm) | 2.638" (67.00mm) |
| Applications | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE | Bluetooth, GLONASS, GNSS, GPS, Wi-Fi |
