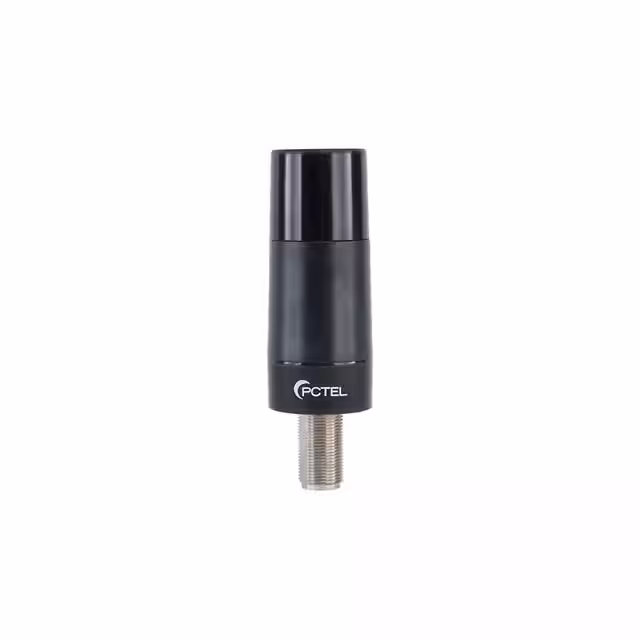

Amphenol PCTEL BMLPVMBLTENGP-VP
- Part No.:
- BMLPVMBLTENGP-VP
- Manufacturer:
- Amphenol PCTEL
- Category:
- RF Antennas
- Package:
- Datasheet:
-
BMLPVMBLTENGP-VP.pdf
- Description:
- RF ANT 825MHZ/2.205MHZ OMNI NF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BMLPVMBLTENGP-VP Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol PCTEL
- Series:
- MLPV
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
- Frequency (Center/Band):
- 825MHz, 2.205GHz
- Frequency Range:
- 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
- Antenna Type:
- Omni-Directional
- Number of Bands:
- 2
- VSWR:
- 2.5
- Return Loss:
- 7.36dB
- Gain:
- 3dBi
- Power - Max:
- 150 W
- Features:
- -
- Termination:
- N Type Female
- Ingress Protection:
- IP66
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- NMO Mount
- Height (Max):
- 4.004" (101.70mm)
- Applications:
- 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi
- Datasheet:
-
BMLPVMBLTENGP-VP.pdf
| Image |  |
 |
 |
| Part Number | BMLPVMBLTENGP-VP | BMLPVMBLTENGP | BMLPVMBLTENGP-NL |
| Manufacturer | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL |
| Series | MLPV | BMLPV | - |
| Packaging | Bag | Bulk | Bulk |
| Product Status | Active | Active | Active |
| RF Family/Standard | Cellular | Cellular | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | Wide Band |
| Frequency (Center/Band) | 825MHz, 2.205GHz | 829MHz, 2.205GHz | 825MHz, 2.205GHz |
| Frequency Range | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.7GHz |
| Antenna Type | Omni-Directional | Dome | Whip, Straight |
| Number of Bands | 2 | 2 | 2 |
| VSWR | 2.5 | 2.5 | 2.5 |
| Return Loss | 7.36dB | - | - |
| Gain | 3dBi | 3dBi, 3dBi | 3dBi, 3dBi |
| Power - Max | 150 W | 150 W | 150 W |
| Features | - | - | - |
| Termination | N Type Female | - | Connector |
| Ingress Protection | IP66 | IP66 | IP66 |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | NMO Mount | Connector Mount, NMO, Stud, Through Hole | Panel Mount |
| Height (Max) | 4.004" (101.70mm) | 3.539" (89.90mm) | 3.539" (89.90mm) |
| Applications | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi | 2G, 3G, 5G, Bluetooth, Cellular, LTE, Wi-Fi | 4G, LTE |
