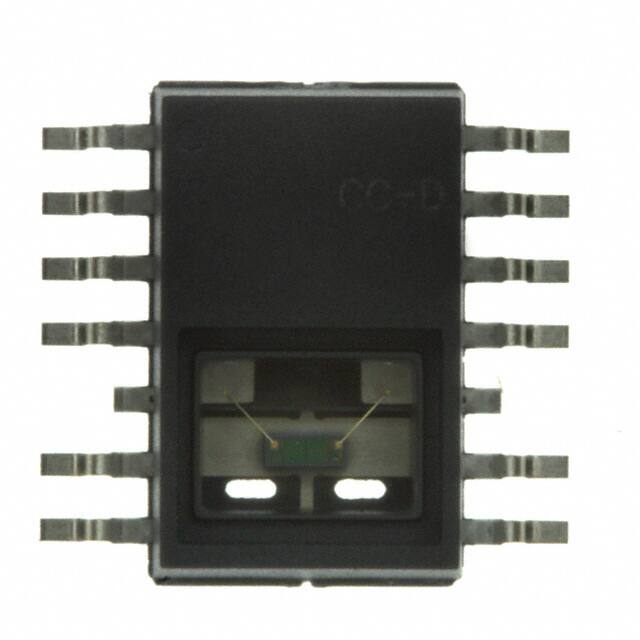

Amphenol Advanced Sensors (Telaire) CHIPCAP-R-50-TUBE
- Part No.:
- CHIPCAP-R-50-TUBE
- Manufacturer:
- Amphenol Advanced Sensors (Telaire)
- Category:
- Humidity, Moisture Sensors
- Package:
- 14-SOIC (0.236", 6.00mm Width), 12 Leads
- Datasheet:
-
CHIPCAP-R-50-TUBE.pdf
- Description:
- SENS HUMI/TEMP 5V ANLG 3% 14SOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CHIPCAP-R-50-TUBE Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol Advanced Sensors (Telaire)
- Series:
- ChipCap
- Package/Case:
- 14-SOIC (0.236", 6.00mm Width), 12 Leads
- Packaging:
- Tube
- Product Status:
- Obsolete
- Sensor Type:
- Humidity, Temperature
- Humidity Range:
- 0 ~ 100% RH
- Output Type:
- Analog Voltage
- Output:
- 4.5V @ 100%RH
- Accuracy:
- ±3% RH
- Response Time:
- -
- Sensitivity:
- -
- Voltage - Supply:
- 5V
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 14-SOP
- Datasheet:
-
CHIPCAP-R-50-TUBE.pdf
| Image |  |
 |
 |
| Part Number | CHIPCAP-L-50-TUBE | CHIPCAP-R-50-TUBE | CHIPCAP-D-50-TUBE |
| Manufacturer | Amphenol Advanced Sensors (Telaire) | Amphenol Advanced Sensors (Telaire) | Amphenol Advanced Sensors (Telaire) |
| Series | ChipCap | ChipCap | ChipCap |
| Package/Case | 14-SOIC (0.236", 6.00mm Width), 12 Leads | 14-SOIC (0.236", 6.00mm Width), 12 Leads | 14-SOIC (0.236", 6.00mm Width), 12 Leads |
| Packaging | Tube | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete |
| Sensor Type | Humidity, Temperature | Humidity, Temperature | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH | 0 ~ 100% RH | 0 ~ 100% RH |
| Output Type | Analog Voltage | Analog Voltage | ZACwire™ |
| Output | 1V @ 100%RH | 4.5V @ 100%RH | 8b |
| Accuracy | ±3% RH | ±3% RH | ±3% RH |
| Response Time | - | - | - |
| Sensitivity | - | - | - |
| Voltage - Supply | 5V | 5V | 5V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - |
| Qualification | - | - | - |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP |
