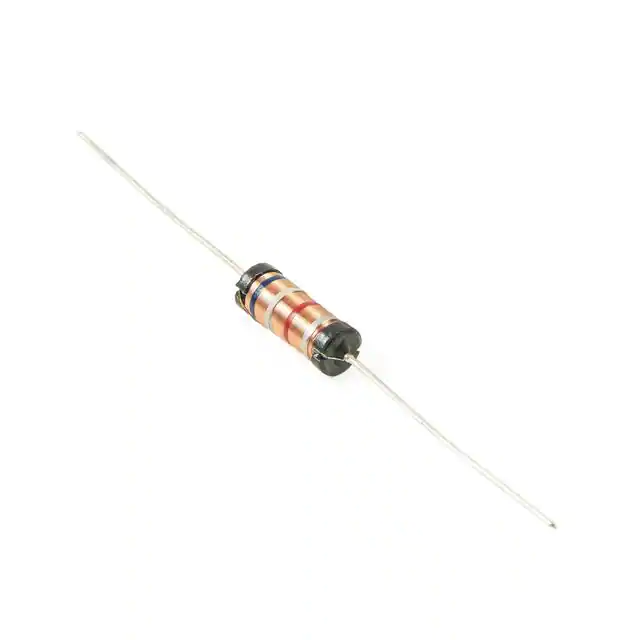

Allied Components International AE90-120K-RC
- Part No.:
- AE90-120K-RC
- Manufacturer:
- Allied Components International
- Category:
- Fixed Inductors
- Package:
- Axial
- Datasheet:
-
AE90-120K-RC.pdf
- Description:
- 12uH +/-10% Axial Epoxy Coated
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AE90-120K-RC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Allied Components International
- Series:
- AE90
- Package/Case:
- Axial
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- Wirewound
- Material - Core:
- -
- Inductance:
- 12 µH
- Tolerance:
- ±10%
- Current Rating (Amps):
- 2.25 A
- Current - Saturation (Isat):
- 3.8A
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 130mOhm Max
- Q @ Freq:
- 55 @ 2.52GHz
- Frequency - Self Resonant:
- 36MHz
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- Axial
- Size / Dimension:
- 0.236" Dia x 0.630" L (6.00mm x 16.00mm)
- Height - Seated (Max):
- -
- Datasheet:
-
AE90-120K-RC.pdf
| Image |  |
|
|
|
|
| Part Number | AE90-470K-RC | AE90-682K-RC | AE90-220K-RC | AE90-103K-RC | AE90-333K-RC |
| Manufacturer | Allied Components International | Allied Components International | Allied Components International | Allied Components International | Allied Components International |
| Series | AE90 | AE90 | AE90 | AE90 | AE90 |
| Package/Case | Axial | Axial | Axial | Axial | Axial |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - |
| Inductance | 47 µH | 6.8 mH | 22 µH | 10 mH | 33 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.8 A | 150 mA | 2.03 A | 120 mA | 67 mA |
| Current - Saturation (Isat) | 2.1A | 180mA | 3.1A | 150mA | 85mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 180mOhm Max | 26Ohm Max | 150mOhm Max | 40Ohm Max | 130Ohm Max |
| Q @ Freq | 30 @ 2.52MHz | 25 @ 252kHz | 50 @ 2.52MHz | 60 @ 79.6kHz | 50 @ 79.6kHz |
| Frequency - Self Resonant | 4.8MHz | 290kHz | 15MHz | 200kHz | 140kHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 10 kHz | 100 kHz | 10 kHz | 10 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
