Ai-Thinker TB-02
- Part No.:
- TB-02
- Manufacturer:
- Ai-Thinker
- Category:
- RF Transceiver Modules and Modems
- Package:
- 13-SMD Module
- Datasheet:
-
TB-02.pdf
- Description:
- RF TXRX MOD BT PCB TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TB-02 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Ai-Thinker
- Series:
- -
- Package/Case:
- 13-SMD Module
- Packaging:
- Cut Tape (CT)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v5.0
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- -
- Power - Output:
- 10dBm
- Sensitivity:
- -93dBm
- Serial Interfaces:
- ADC, GPIO, PWM, SPI
- Antenna Type:
- PCB Trace
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 2.7V ~ 3.6V
- Current - Receiving:
- -
- Current - Transmitting:
- 12.62mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
- Datasheet:
-
TB-02.pdf
| Image |  |
 |
 |

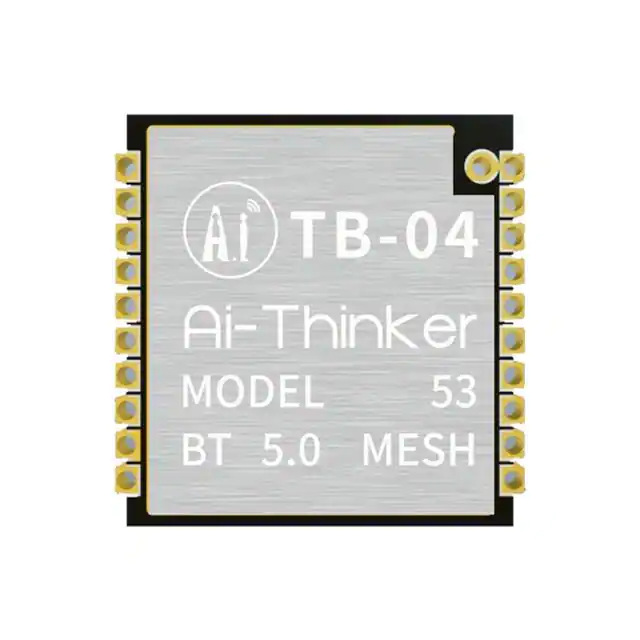

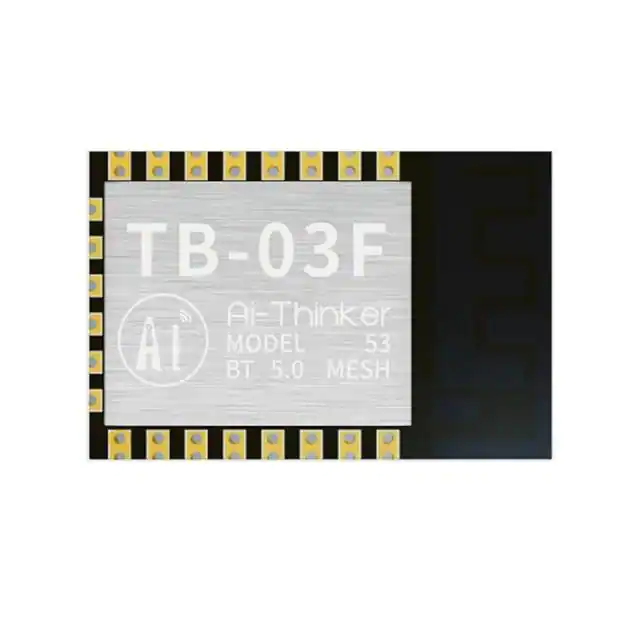

| Part Number | TB-02 | TB-04 | TB-03F |
| Manufacturer | Ai-Thinker | Ai-Thinker | Ai-Thinker |
| Series | - | - | - |
| Package/Case | 13-SMD Module | 20-SMD Module | 22-SMD Module |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
| Product Status | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | - | - | - |
| Power - Output | 10dBm | 10dBm | 10dBm |
| Sensitivity | -93dBm | -93dBm | -93dBm |
| Serial Interfaces | ADC, GPIO, PWM, SPI | ADC, GPIO, PWM, SPI | ADC, GPIO, I2S, PWM, SPI |
| Antenna Type | PCB Trace | Antenna Not Included | PCB Trace |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Current - Receiving | - | - | - |
| Current - Transmitting | 12.62mA | 20.69mA | 6.36mA ~ 20.54mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C |
