Abracon LLC APAMPG-130
- Part No.:
- APAMPG-130
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
APAMPG-130.pdf
- Description:
- RF ANT 1.575/1.602GHZ DOME SMA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
APAMPG-130 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- APAMPG
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz, 1.602GHz
- Frequency Range:
- 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz
- Antenna Type:
- Dome
- Number of Bands:
- 2
- VSWR:
- 1.5
- Return Loss:
- -
- Gain:
- 30dB
- Power - Max:
- -
- Features:
- -
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Magnetic
- Height (Max):
- 0.610" (15.50mm)
- Applications:
- GLONASS, GPS
- Datasheet:
-
APAMPG-130.pdf
| Image |  |
|
 |

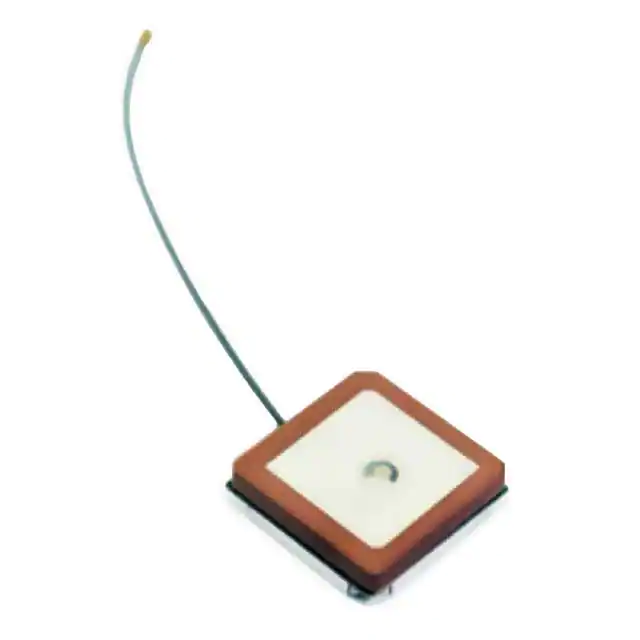

| Part Number | APAMPG-130 | APAMPG-117 | APAMPGJ-141 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | APAMPG | APAMPG | APAMPG |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active |
| RF Family/Standard | Navigation | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz | 1.575GHz, 1.602GHz | 1.575GHz, 1.602GHz |
| Frequency Range | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | 1.575GHz ~ 1.61GHz |
| Antenna Type | Dome | Module | Ceramic Patch |
| Number of Bands | 2 | 2 | 2 |
| VSWR | 1.5 | 1.5 | 1.5 |
| Return Loss | - | - | - |
| Gain | 30dB | 5dBi | 3dBic |
| Power - Max | - | - | - |
| Features | - | Cable - 4m, LNA | - |
| Termination | SMA Male | SMA Male | U.FL (UMCC), I-PEX MHF1 |
| Ingress Protection | - | - | - |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Magnetic | Adhesive | Surface Mount |
| Height (Max) | 0.610" (15.50mm) | 0.571" (14.50mm) | 0.984" (25.00mm) |
| Applications | GLONASS, GPS | GLONASS, GPS | GLONASS, GPS |
