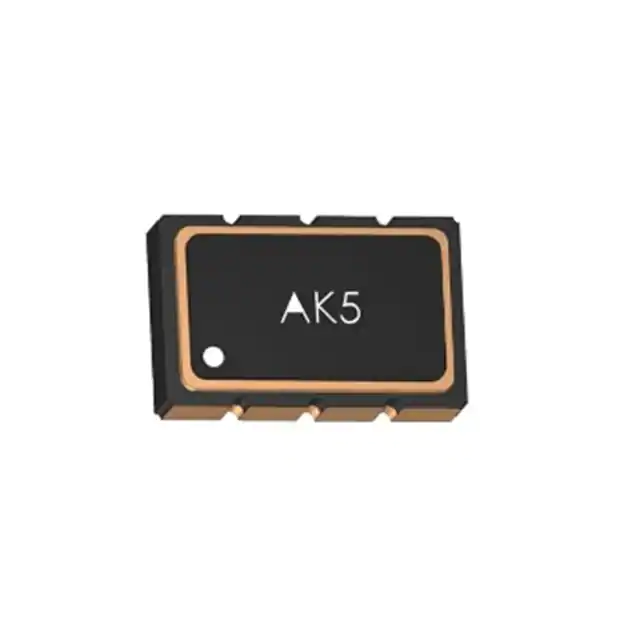

Abracon LLC AK5DBF1-125.0000T
- Part No.:
- AK5DBF1-125.0000T
- Manufacturer:
- Abracon LLC
- Category:
- Oscillators
- Package:
- 6-SMD, No Lead
- Datasheet:
-
AK5DBF1-125.0000T.pdf
- Description:
- 300FS ULTRA LOW JITTER 5X3.2MM 2
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AK5DBF1-125.0000T Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ClearClock™ AK5
- Package/Case:
- 6-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 125 MHz
- Function:
- Enable/Disable
- Output:
- LVDS
- Voltage - Supply:
- 2.5V
- Frequency Stability:
- ±25ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 27mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max):
- 0.051" (1.30mm)
- Datasheet:
-
AK5DBF1-125.0000T.pdf
| Image |  |
|
 |
|
|
| Part Number | AK5DBF1-200.0000T2 | AK5DBF1-122.8800T2 | AK5DBF1-100.0000T | AK5DBF1-125.0000T | AK5DBF1-122.8800T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ClearClock™ AK5 | ClearClock™ AK5 | ClearClock™ AK5 | ClearClock™ AK5 | ClearClock™ AK5 |
| Package/Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 200 MHz | 122.88 MHz | 100 MHz | 125 MHz | 122.88 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVDS | LVDS | LVDS | LVDS | LVDS |
| Voltage - Supply | 2.5V | 2.5V | 2.5V | 2.5V | 2.5V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 27mA | 27mA | 27mA | 27mA | 27mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-SMD (5x3) | 6-SMD (5x3) | - | - | - |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
