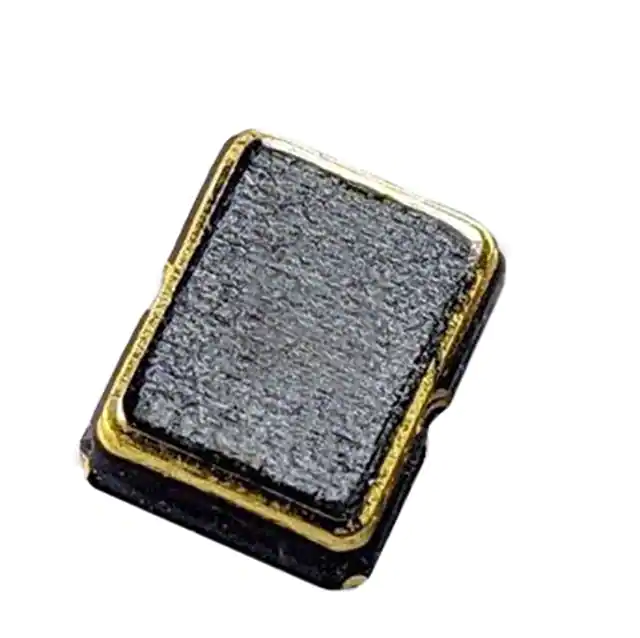

Abracon LLC AK2PAF1-156.2500T
- Part No.:
- AK2PAF1-156.2500T
- Manufacturer:
- Abracon LLC
- Category:
- Oscillators
- Package:
- 6-SMD, No Lead
- Datasheet:
-
AK2PAF1-156.2500T.pdf
- Description:
- XTAL OSC XO 156.25MHZ 3.3V LVPEC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AK2PAF1-156.2500T Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ClearClock™ AK2
- Package/Case:
- 6-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 156.25 MHz
- Function:
- Enable/Disable
- Output:
- LVPECL
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±30ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 50mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-SMD (2.5x2)
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.043" (1.10mm)
- Datasheet:
-
AK2PAF1-156.2500T.pdf
| Image |  |
 |
|
|
|
| Part Number | AK2PAF1-100.0000T | AK2PAF1-156.2500T | AK2PAF1-148.5000 | AK2PAF1-125.0000T | AK2PAF1-200.0000 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ClearClock™ AK2 | ClearClock™ AK2 | ClearClock™ AK2 | ClearClock™ AK2 | ClearClock™ AK2 |
| Package/Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 100 MHz | 156.25 MHz | 148.5 MHz | 125 MHz | 200 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVPECL | LVPECL | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 50mA | 50mA | 50mA | 50mA | 50mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-SMD (2.5x2) | 6-SMD (2.5x2) | 6-SMD (2.5x2) | 6-SMD (2.5x2) | 6-SMD (2.5x2) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
