Abracon LLC AEACBA050018-SG4L2L5
- Part No.:
- AEACBA050018-SG4L2L5
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
AEACBA050018-SG4L2L5.pdf
- Description:
- RF ANT GPS/GLONASS DOME
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AEACBA050018-SG4L2L5 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- AEAC
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.2015GHz, 1.5815GHz
- Frequency Range:
- 1.176GHz ~ 1.227GHz, 1.561GHz ~ 1.602GHz
- Antenna Type:
- Module
- Number of Bands:
- 2
- VSWR:
- 1.5, 2
- Return Loss:
- -
- Gain:
- 3dBic
- Power - Max:
- -
- Features:
- Cable - 3m, LNA
- Termination:
- SMA Male
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive, Magnetic
- Height (Max):
- 0.709" (18.00mm)
- Applications:
- Beidou, Galileo, GLONASS, GNSS, GPS
- Datasheet:
-
AEACBA050018-SG4L2L5.pdf

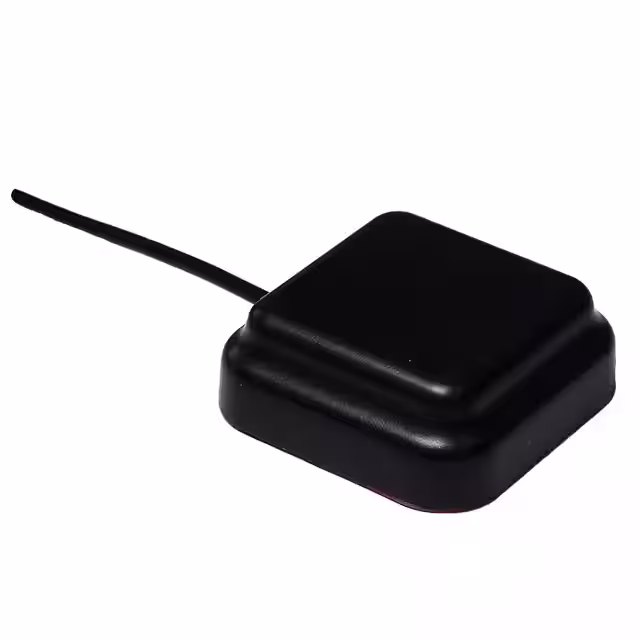

| Image |  |
 |
| Part Number | AEACBA050018-SG4L2L5 | AEACBA050018-SG3 |
| Manufacturer | Abracon LLC | Abracon LLC |
| Series | AEAC | AEAC |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| RF Family/Standard | Navigation | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.2015GHz, 1.5815GHz | 1.561GHz, 1.575GHz, 1.602GHz |
| Frequency Range | 1.176GHz ~ 1.227GHz, 1.561GHz ~ 1.602GHz | 1.561GHz ~ 1.602GHz |
| Antenna Type | Module | Module |
| Number of Bands | 2 | 3 |
| VSWR | 1.5, 2 | 1.5 |
| Return Loss | - | - |
| Gain | 3dBic | 5dBi |
| Power - Max | - | - |
| Features | Cable - 3m, LNA | LNA |
| Termination | SMA Male | SMA |
| Ingress Protection | IP67 | IP67 |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Adhesive, Magnetic | Adhesive |
| Height (Max) | 0.709" (18.00mm) | 0.708" (18.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GNSS, GPS |
