Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

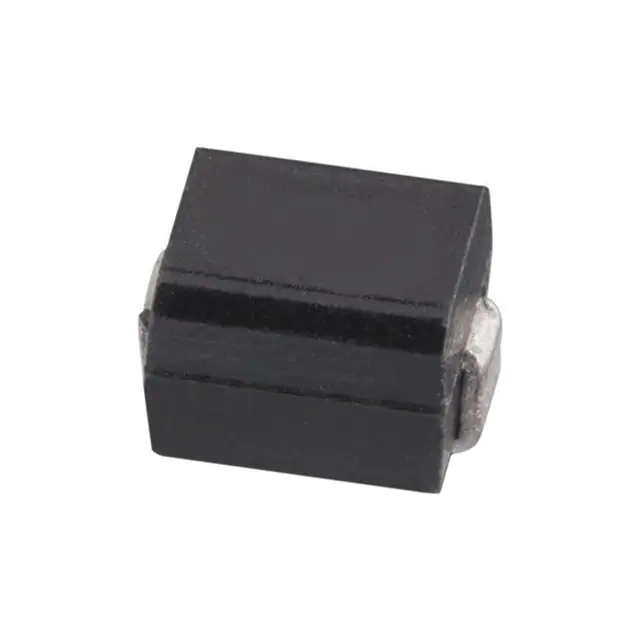

744764112FIXED IND 12UH 140MA 2.5 OHM SMD |
1,313 |
|
Datasheet
|
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 140 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 28MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
24S101CFIXED IND 100UH 520MA 540MOHM SM |
1,136 |
|
Datasheet
|
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | - | 520 mA | - | Shielded | 540mOhm Max | - | 6.2MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.303" L x 0.280" W (7.70mm x 7.10mm) | 0.177" (4.50mm) |
|
BMRA000505151R0MA1FIXED IND 1UH 5A 33 MOHM SMD |
10,528 |
|
Datasheet
|
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 8A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.059" (1.50mm) |
|

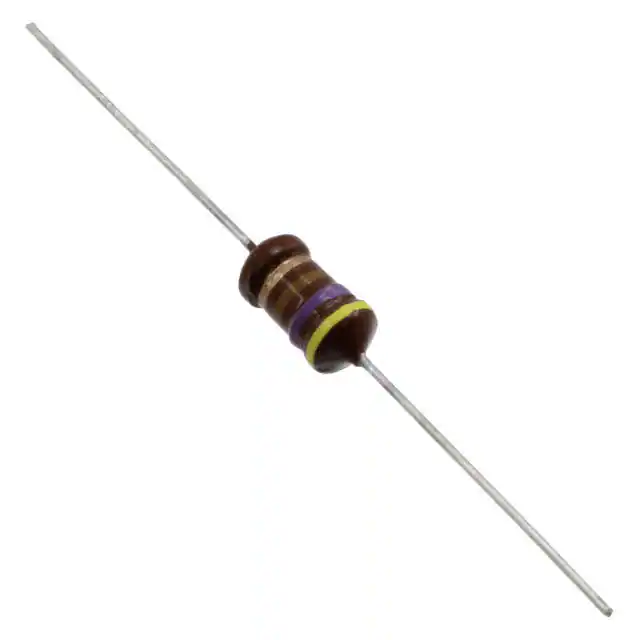

B82145A1474J000FIXED IND 470UH 510MA 1.9 OHM TH |
3,107 |
|
Datasheet
|
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 510 mA | - | Unshielded | 1.9Ohm Max | 30 @ 796kHz | 1.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
-1,2.jpg)
|
DFE2MCAHR68MJ0LFIXED IND 680NH 3A 42 MOHM SMD |
2,980 |
|
Datasheet
|
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3 A | 3.1A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
ECS-MPIL0630-3R3MCFIXED IND 3.3UH 9.5A 22 MOHM SMD |
5,031 |
|
Datasheet
|
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 9.5 A | - | Shielded | 22mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|

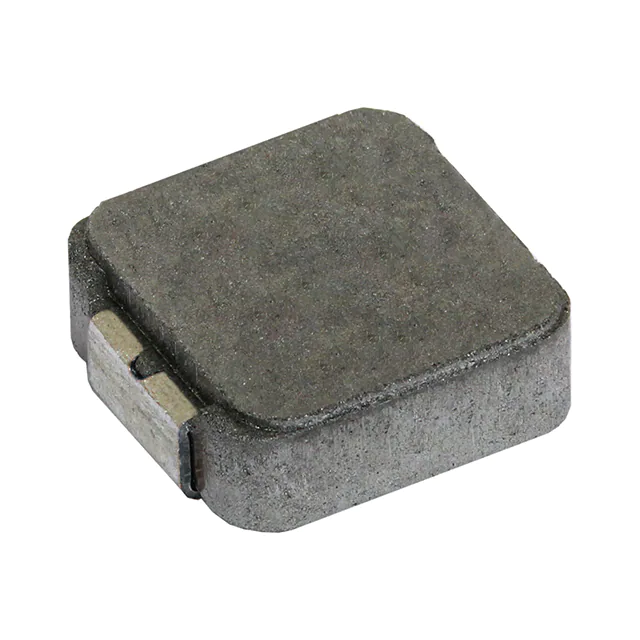

IHLP1212ABEVR68M5AFIXED IND 680NH 4.98A 36.4 MOHM |
3,990 |
|
Datasheet
|
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 4.98 A | 4.09A | Shielded | 36.4mOhm Max | - | 113MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|

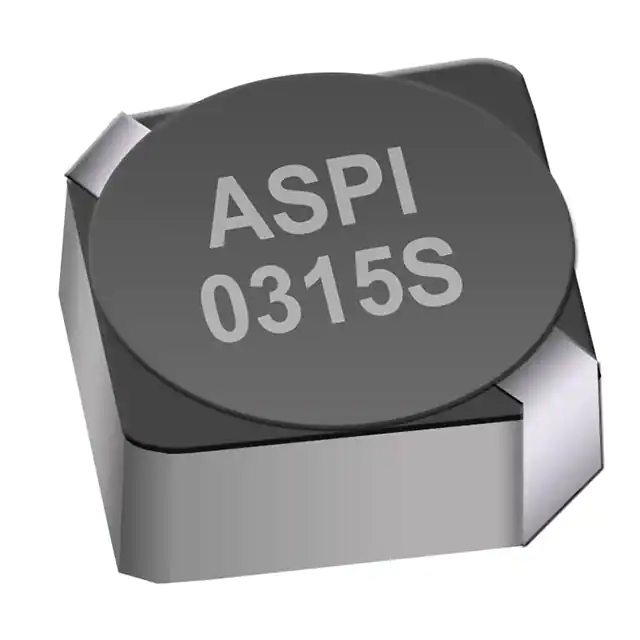

ASPI-0315S-680M-TIND 68UH 0.219A 1250M |
2,970 |
|
Datasheet
|
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 219 mA | - | Shielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-120M-TFIXED IND 12UH 420MA 205MOHM SMD |
2,895 |
|
Datasheet
|
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 420 mA | - | Shielded | 205mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|

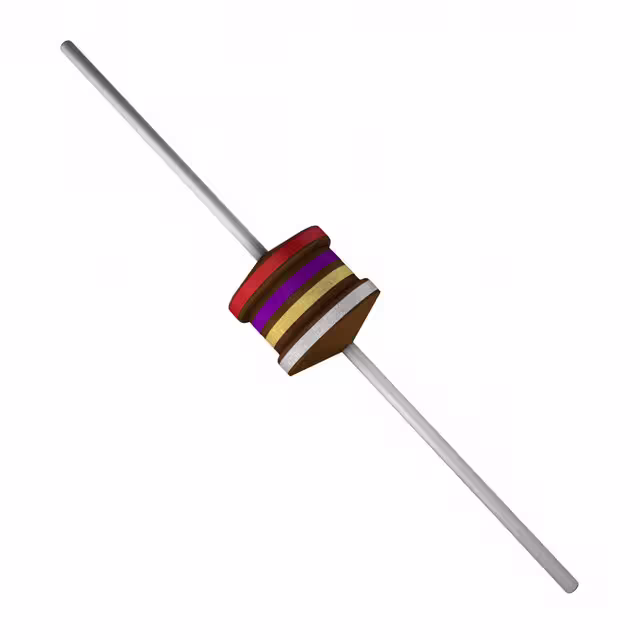

B82144F2272K000FIXED IND 2.7UH 3.55A 0.06OHM TH |
1,983 |
|
Datasheet
|
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 3.55 A | 5.4A | Unshielded | 60mOhm Max | 60 @ 2.52MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

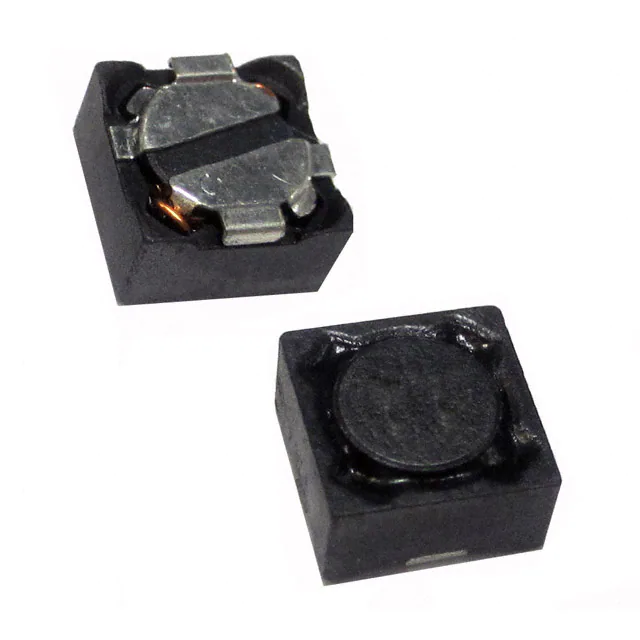

ASPI-0704S-181M-TFIXED IND 180UH 420MA 980MOHM SM |
1,945 |
|
Datasheet
|
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 420 mA | - | Shielded | 980mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

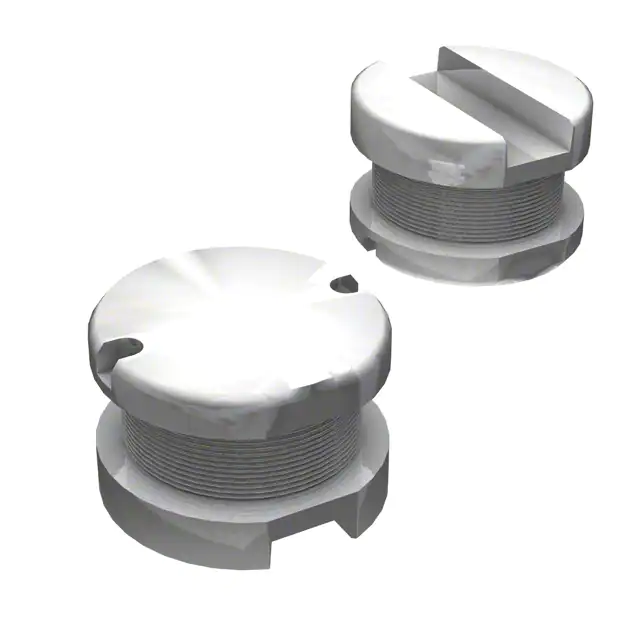

SDR0805-182KLFIXED IND 1.8MH 140MA 9.2OHM SMD |
1,885 |
|
Datasheet
|
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 140 mA | 230mA | Unshielded | 9.2Ohm Max | 30 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
82222CFIXED IND 2.2UH 1.1A 104MOHM SMD |
1,619 |
|
Datasheet
|
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.1 A | - | Unshielded | 104mOhm Max | 18 @ 1MHz | 85MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|

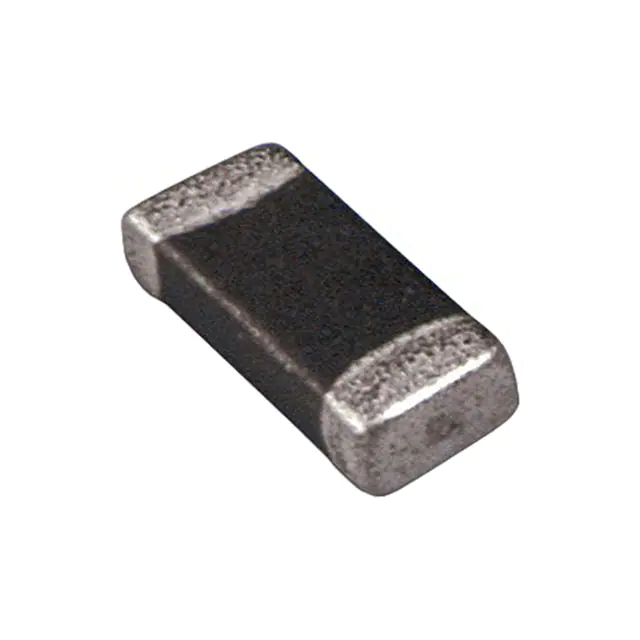

74479023FIXED IND 220NH 250MA 500MOHM SM |
3,772 |
|
Datasheet
|
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 220 nH | ±10% | 250 mA | - | Unshielded | 500mOhm Max | 20 @ 25MHz | 195MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
SBC4-151-861FIXED IND 150UH 860MA 360MOHM TH |
1,893 |
|
Datasheet
|
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 860 mA | 1.2A | Unshielded | 360mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|

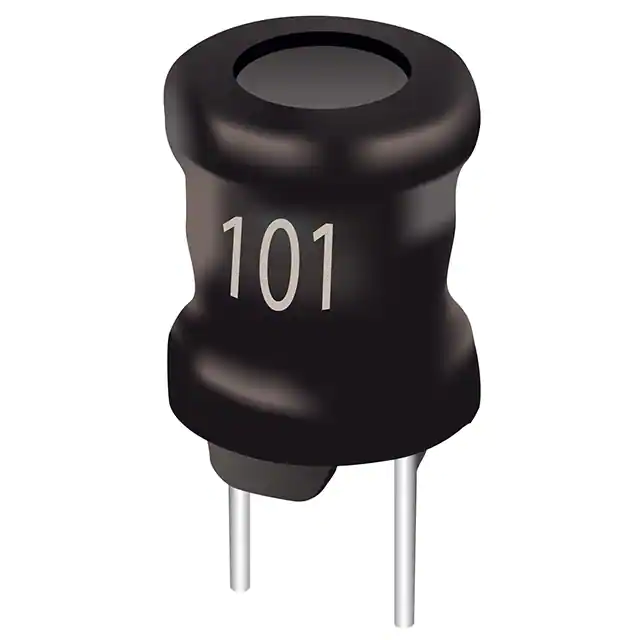

RLB0913-471KFIXED IND 470UH 470MA 1.1 OHM TH |
1,242 |
|
Datasheet
|
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 470 mA | 460mA | Unshielded | 1.1Ohm | 20 @ 796kHz | 1.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-822KFIXED IND 8.2MH 130MA 21 OHM TH |
1,089 |
|
Datasheet
|
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 130 mA | 50mA | Unshielded | 21Ohm | 20 @ 252kHz | 300kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-391KFIXED IND 390UH 500MA 1 OHM TH |
1,008 |
|
Datasheet
|
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 500 mA | 480mA | Unshielded | 1Ohm | 20 @ 796kHz | 2.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|

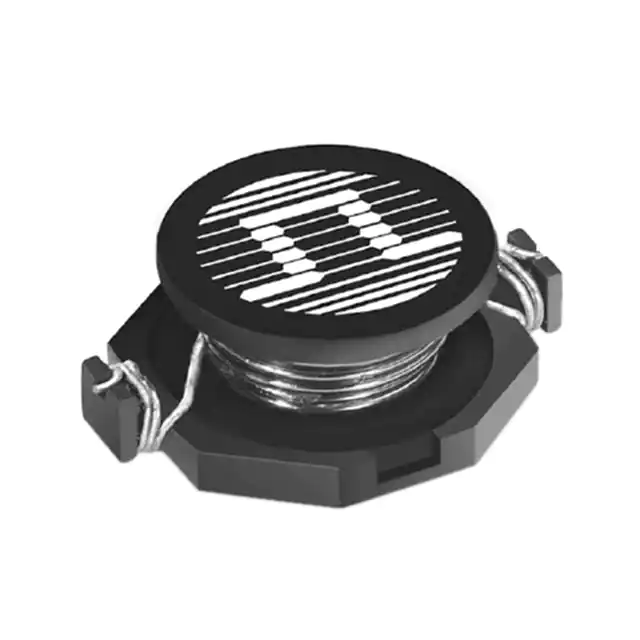

P0751.152NLFIXED IND 1.5UH 6.4A 12 MOHM SMD |
3,140 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 6.4 A | 8A | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0751.223NLFIXED IND 22UH 2.6A 114 MOHM SMD |
3,140 |
|
Datasheet
|
P0751NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.6A | Unshielded | 114mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
