Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

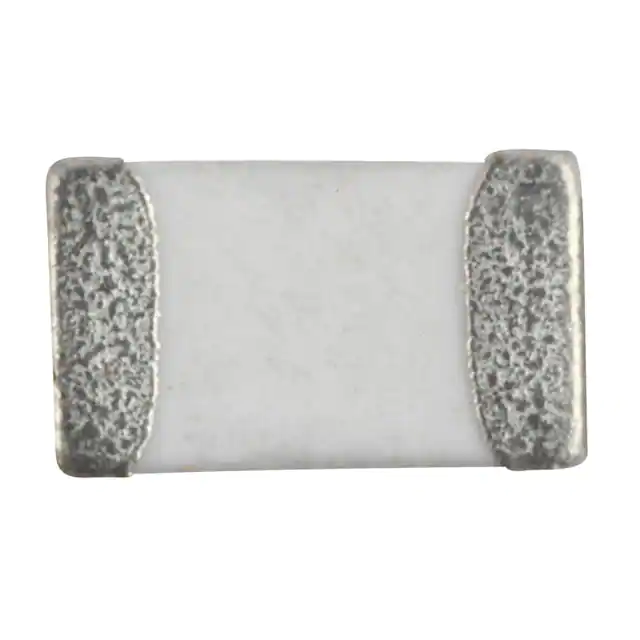

MCL2012V2-220-RFIXED IND 22NH 300MA 500MOHM SMD Eaton - Electronics Division |
4,969 |
|
Datasheet
|
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 22 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 15 @ 100MHz | 1.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL1608V1-1R2-RFIXED IND 1.2UH 150MA 300MOHM SM Eaton - Electronics Division |
4,890 |
|
Datasheet
|
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.2 µH | ±20% | 150 mA | - | Unshielded | 300mOhm Max | - | 65MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL1608V1-2R2-RFIXED IND 2.2UH 120MA 500MOHM SM Eaton - Electronics Division |
4,687 |
|
Datasheet
|
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 120 mA | - | Unshielded | 500mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL2012V2-471-RFIXED IND 470NH 300MA 2 OHM SMD Eaton - Electronics Division |
4,000 |
|
Datasheet
|
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±5% | 300 mA | - | Unshielded | 2Ohm Max | 10 @ 50MHz | 200MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCQ1V2012-1R5-RFIXED IND 1.5UH 50MA 400MOHM SMD Eaton - Electronics Division |
3,715 |
|
Datasheet
|
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 µH | ±10% | 50 mA | - | Unshielded | 400mOhm Max | 35 @ 10MHz | 60MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|

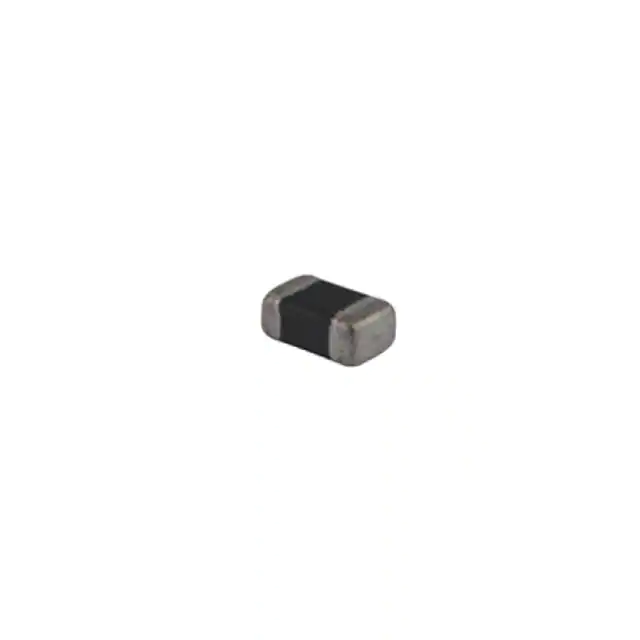

MCLA2012V1-120-RFIXED IND 12UH 15MA 1.15 OHM SMD Eaton - Electronics Division |
2,679 |
|
Datasheet
|
MCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 12 µH | ±10% | 15 mA | - | Unshielded | 1.15Ohm Max | 30 @ 2MHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL2012V1-1R8-RFIXED IND 1.8UH 180MA 300MOHM SM Eaton - Electronics Division |
10,075 |
|
Datasheet
|
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.8 µH | ±20% | 180 mA | - | Unshielded | 300mOhm Max | - | 55MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCL1608V1-1R0-RFIXED IND 1UH 150MA 300 MOHM SMD Eaton - Electronics Division |
12,365 |
|
Datasheet
|
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 150 mA | - | Unshielded | 300mOhm Max | - | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL1608V1-4R7-RFIXED IND 4.7UH 80MA 750MOHM SMD Eaton - Electronics Division |
3,825 |
|
Datasheet
|
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 80 mA | - | Unshielded | 750mOhm Max | - | 33MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
SDCL1V3015-4R7M-RIND 4.7 UH 1.1A SMT Eaton - Electronics Division |
7,527 |
|
Datasheet
|
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 1 A | 1.1A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
