Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-,65-White-Field.jpg)
|
MCL1005-470-RFIXED IND 47NH 200MA 1.1 OHM SMD Eaton - Electronics Division |
26,071 |
|
Datasheet
|
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 47 nH | ±5% | 200 mA | - | Unshielded | 1.1Ohm Max | 8 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-221-RFIXED IND 220NH 100MA 4 OHM SMD Eaton - Electronics Division |
19,187 |
|
Datasheet
|
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±5% | 100 mA | - | Unshielded | 4Ohm Max | 8 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCL2012V2-100-RFIXED IND 10NH 500MA 300MOHM SMD Eaton - Electronics Division |
17,788 |
|
Datasheet
|
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 500 mA | - | Unshielded | 300mOhm Max | 15 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCL1005-220-RFIXED IND 22NH 300MA 600MOHM SMD Eaton - Electronics Division |
16,246 |
|
Datasheet
|
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 22 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-6R8-RFIXED IND 6.8NH 300MA 300MOHM SM Eaton - Electronics Division |
14,431 |
|
Datasheet
|
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 6.8 nH | ±5% | 300 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 3.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-101-RFIXED IND 100NH 150MA 2.6OHM SMD Eaton - Electronics Division |
12,269 |
|
Datasheet
|
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCQ1V1608-1R0-RFIXED IND 1UH 25MA 500 MOHM SMD Eaton - Electronics Division |
11,690 |
|
Datasheet
|
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±10% | 25 mA | - | Unshielded | 500mOhm Max | 25 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V3216-R820-RFIXED IND 820NH 150MA 600MOHM SM Eaton - Electronics Division |
11,666 |
|
Datasheet
|
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±10% | 150 mA | - | Unshielded | 600mOhm Max | 30 @ 25MHz | 100MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
|

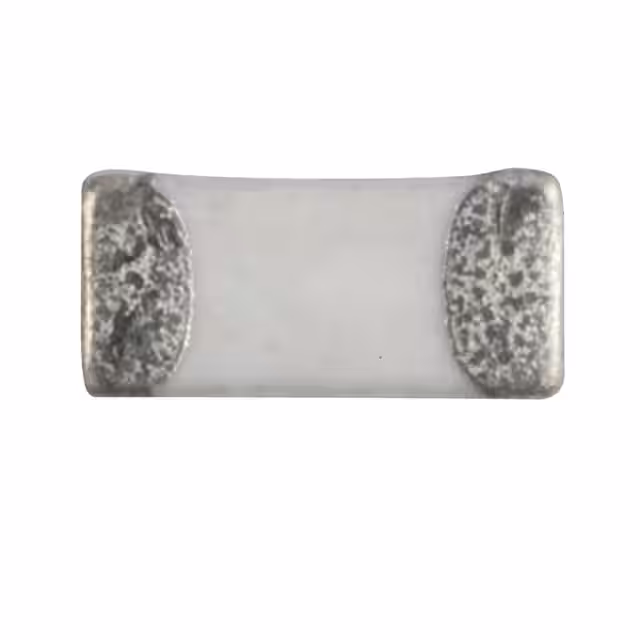

MCL1608V2-331-RFIXED IND 330NH 150MA 2.8OHM SMD Eaton - Electronics Division |
11,420 |
|
Datasheet
|
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±5% | 150 mA | - | Unshielded | 2.8Ohm Max | 8 @ 100MHz | 350MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V3216-1R0-RFIXED IND 1UH 100MA 300 MOHM SMD Eaton - Electronics Division |
11,224 |
|
Datasheet
|
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±10% | 100 mA | - | Unshielded | 300mOhm Max | 35 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
