Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLZ1608N100LTD25FIXED IND 10UH 300MA 600MOHM SMD |
22,578 |
|
Datasheet
|
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 60mA | Shielded | 600mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

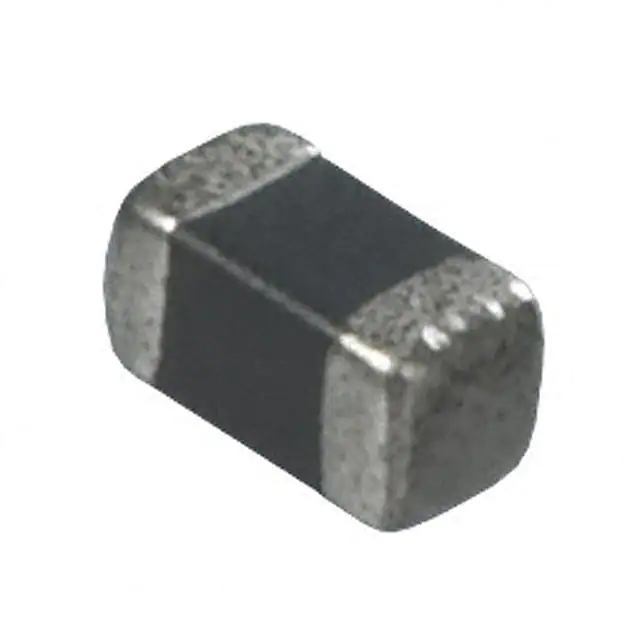

LQM18FN100M00DFIXED IND 10UH 50MA 1.17 OHM SMD |
10,225 |
|
Datasheet
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 10 µH | ±20% | 50 mA | 50mA | Shielded | 1.17Ohm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
-2,00x1,60x,80mm.jpg)
|
CIGT201610EH2R2MNEFIXED IND 2.2UH 2.5A 87MOHM SMD |
66,797 |
|
Datasheet
|
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.5 A | 2.9A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-BR-Series.jpg)
|

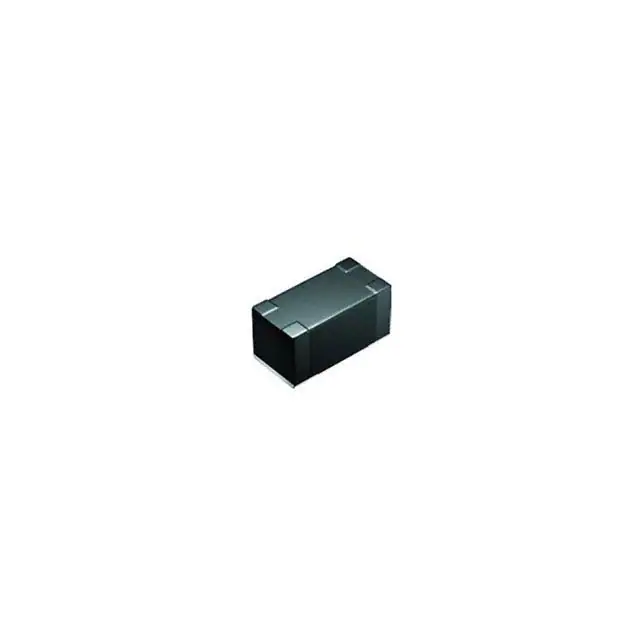

BRC2012T4R7MDFIXED IND 4.7UH 600MA 344.5 MOHM |
157,948 |
|
Datasheet
|
BR, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 600 mA | 700mA | Unshielded | 344.5mOhm Max | - | 250MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LQW15AN3N3B80DFIXED IND 3.3NH 2A 0.03OHM SMD |
270,104 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±0.1nH | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN2N2B80DFIXED IND 2.2NH 2.53A 0.022OHM |
63,236 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.2 nH | ±0.1nH | 2.53 A | - | Unshielded | 22mOhm Max | 30 @ 250MHz | 15.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

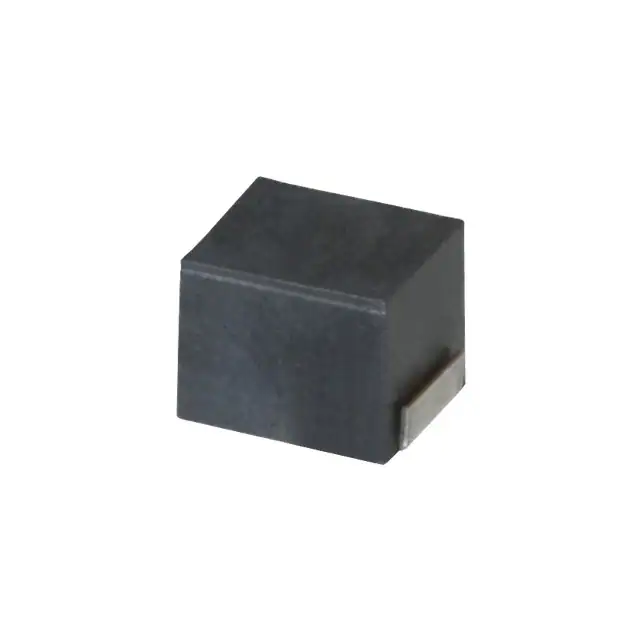

NLFV25T-100K-PFFIXED IND 10UH 155MA 432MOHM SMD |
43,758 |
|
Datasheet
|
NLFV | Nonstandard | Tape & Reel (TR) | Last Time Buy | Wirewound | - | 10 µH | ±10% | 155 mA | - | Shielded | 432mOhm Max | 10 @ 2.52MHz | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
-1,45mm.jpg)
|
CBC2012T1R0MFIXED IND 1UH 840MA 247 MOHM SMD |
21,479 |
|
Datasheet
|
CB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 840 mA | 700mA | Unshielded | 247mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW15AN36NG80DFIXED IND 36NH 540MA 0.431OHM SM |
20,563 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 36 nH | ±2% | 540 mA | - | Unshielded | 431mOhm Max | 30 @ 250MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLV32T-100J-PFFIXED IND 10UH 150MA 2.1 OHM SMD |
19,323 |
|
Datasheet
|
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 150 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
LQW15AN3N0B80DFIXED IND 3NH 1.35A 0.063OHM SMD |
18,354 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3 nH | ±0.1nH | 1.35 A | - | Unshielded | 63mOhm Max | 20 @ 250MHz | 12.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

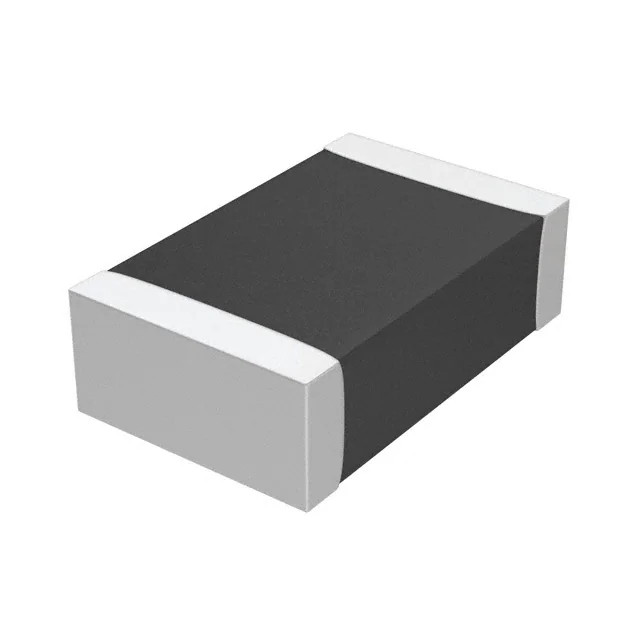

LQM21FN100M70LFIXED IND 10UH 100MA 780MOHM SMD |
14,169 |
|
Datasheet
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 10 µH | ±20% | 100 mA | 100mA | Shielded | 780mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW15AN6N8G80DFIXED IND 6.8NH 1.45A 0.068OHM |
12,607 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.8 nH | ±2% | 1.45 A | - | Unshielded | 68mOhm Max | 30 @ 250MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N6B80DFIXED IND 5.6NH 1.77A 0.04OHM SM |
11,910 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.1nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
CBMF1608T470KFIXED IND 47UH 140MA 3.25OHM SMD |
155,436 |
|
Datasheet
|
CB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 140 mA | 50mA | Unshielded | 3.25Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

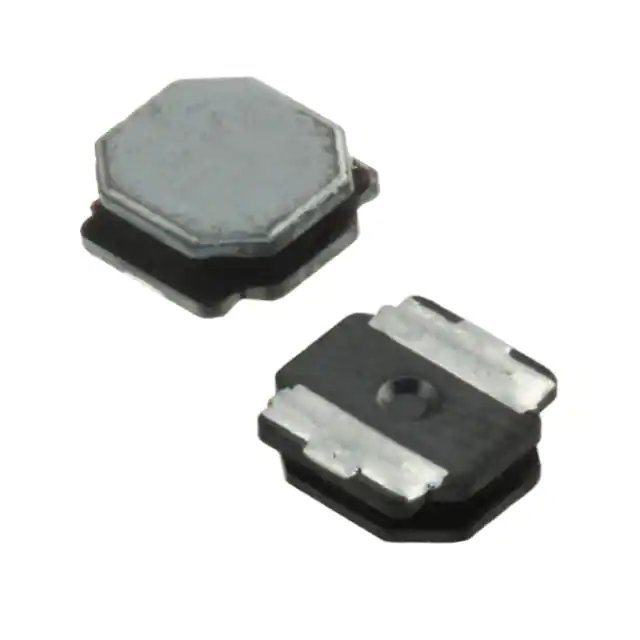

NRS5030T100MMGJFIXED IND 10UH 1.7A 70 MOHM SMD |
100,326 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 2.1A | Shielded | 70mOhm | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
NLCV32T-1R0M-PFFIXED IND 1UH 1A 78 MOHM SMD |
42,147 |
|
Datasheet
|
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1 A | - | Unshielded | 78mOhm Max | 10 @ 7.96MHz | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

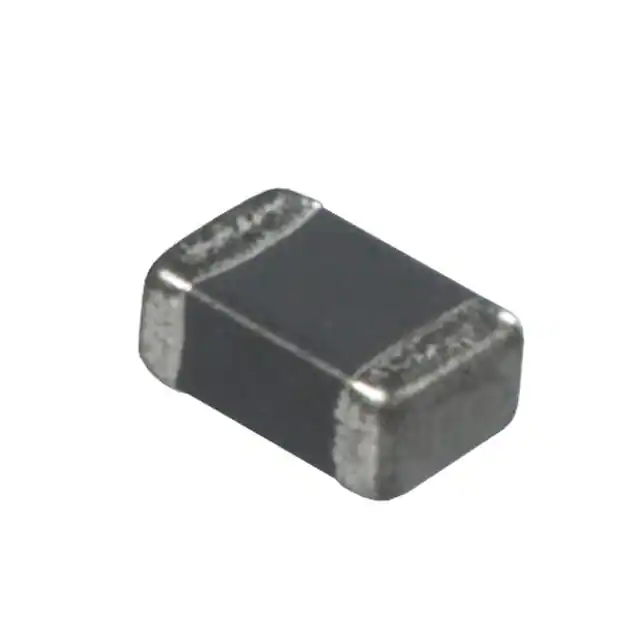

LQM21PN2R2MC0DFIXED IND 2.2UH 600MA 425MOHM SM |
31,329 |
|
Datasheet
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 425mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
|
|
NLCV32T-330K-EFFIXED IND 33UH 240MA 1.43OHM SMD |
22,005 |
|
Datasheet
|
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 240 mA | - | Unshielded | 1.43Ohm Max | 15 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

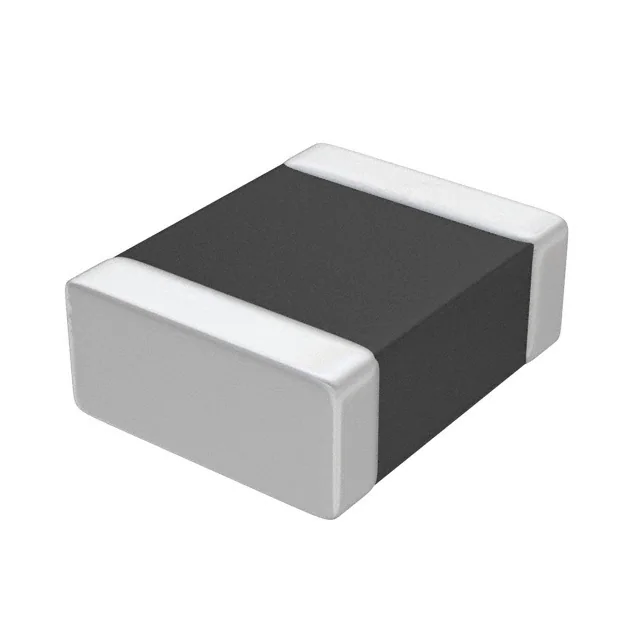

LQM2HPN1R0MG0LFIXED IND 1UH 1.6A 69 MOHM SMD |
20,237 |
|
Datasheet
|
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.6 A | - | Shielded | 69mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
