Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWC-5.0-15FIXED IND 14.8UH 5A 23 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 14.8 µH | ±20% | 5 A | - | Unshielded | 23mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
SH150F-3.00-25FIXED IND 25UH 3A 40 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.433" (11.00mm) |
|
|
SH260C-5.0-15FIXED IND 14.8UH 5A 23 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 14.8 µH | ±20% | 5 A | - | Unshielded | 23mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|

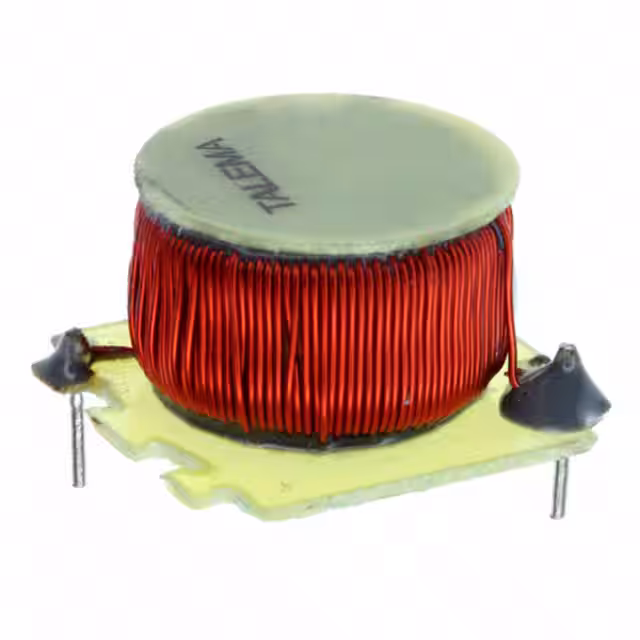

SWT-0.90-330FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.422" (10.71mm) |
|
SWC-3.00-38FIXED IND 38UH 3A 50 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|

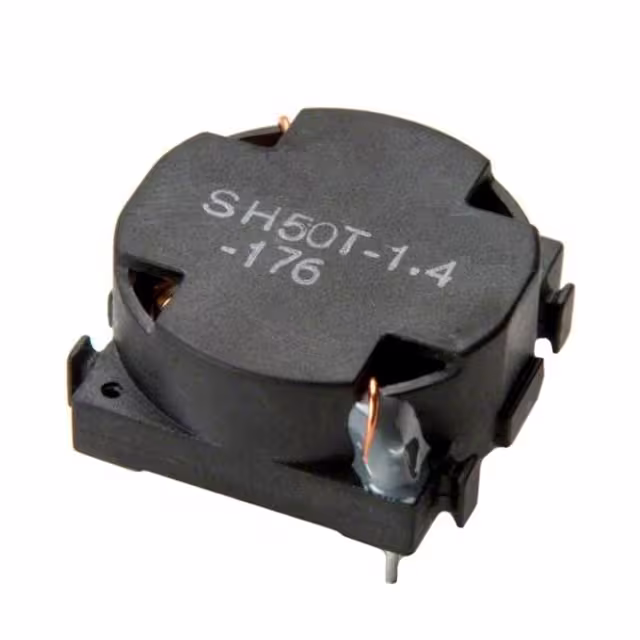

SH50T-1.4-176FIXED IND 176UH 1.4A 140 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|

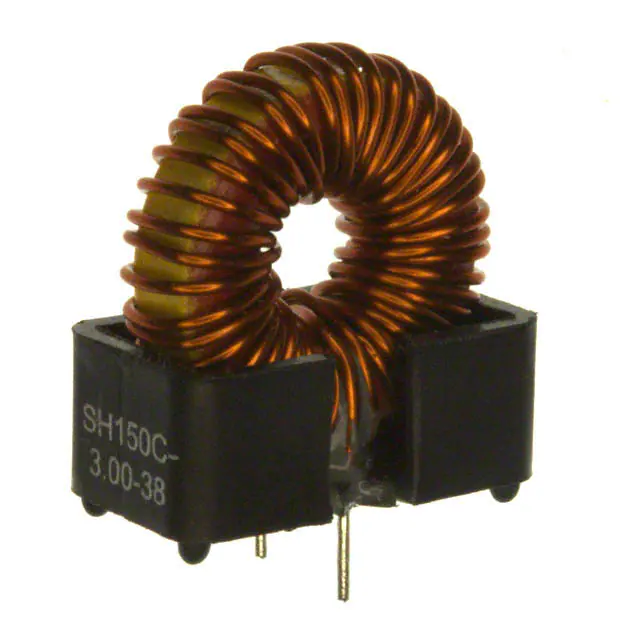

SH150C-3.00-38FIXED IND 38UH 3A 50 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
SH50T-0.9-267FIXED IND 267UH 900MA 180MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 267 µH | ±20% | 900 mA | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
SWT-1.20-38FIXED IND 38UH 1.2A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 38 µH | ±20% | 1.2 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|
|
SH150T-1.20-38FIXED IND 38UH 1.2A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 38 µH | ±20% | 1.2 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | - | - |
