Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWT-1.81-18FIXED IND 18UH 1.81A 60 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 18 µH | ±20% | 1.81 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|
SH150T-1.48-26FIXED IND 26UH 1.48A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 26 µH | ±20% | 1.48 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
|
SH150T-1.81-18FIXED IND 18UH 1.81A 60 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 18 µH | ±20% | 1.81 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
SWS-0.56-55FIXED IND 55UH 560MA 500MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 55 µH | ±20% | 560 mA | - | Unshielded | 500mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
|
|
SWS-1.02-17FIXED IND 17UH 1.02A 100MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 17 µH | ±20% | 1.02 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.266" (6.75mm) |
|
SWC-3.00-25FIXED IND 25UH 3A 40 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
SH150C-3.00-25FIXED IND 25UH 3A 40 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|

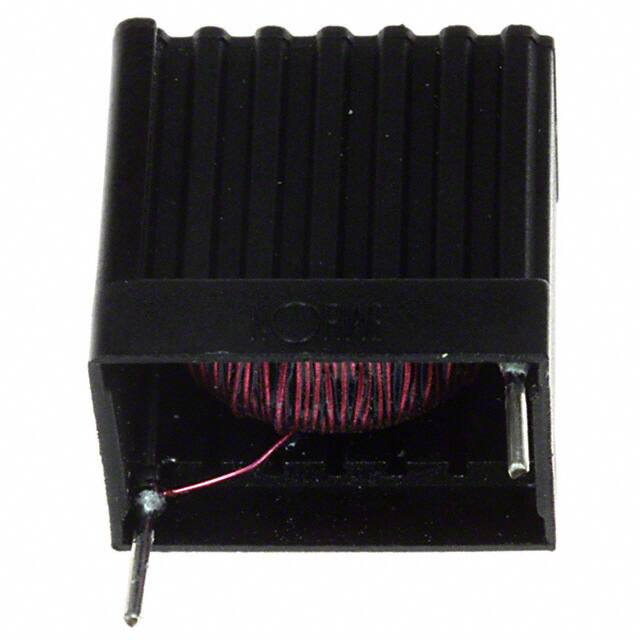

SWV-0.9-330FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical | Bulk | Obsolete | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
SWF-0.85-680FIXED IND 680UH 850MA 1.25OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical Cylinder | Bulk | Obsolete | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SWT-2.24-37FIXED IND 37UH 2.24A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.346" (8.80mm) |
