Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

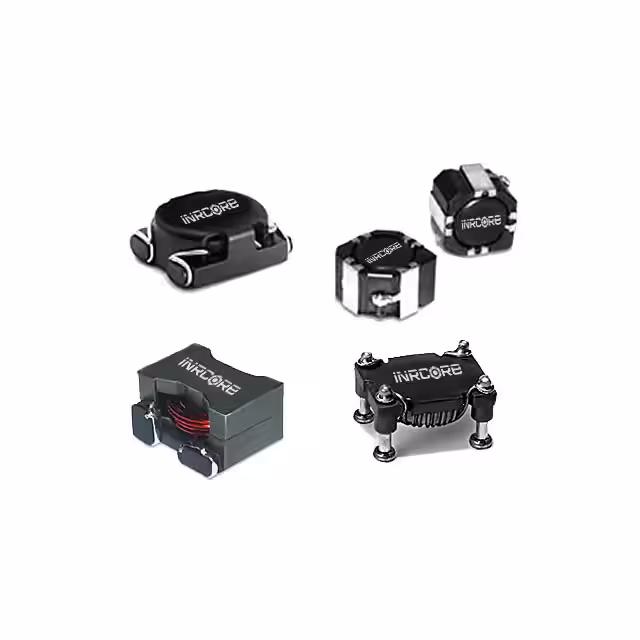

PL8303FIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8303NLFIXED IND 13.8UH 17A 6.4MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 13.8 µH | - | 17 A | - | Unshielded | 6.4mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
PL8706FIXED IND 27.4UH 4.2A 38.15 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8706NLFIXED IND 27.4UH 4.2A 38.15 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 27.4 µH | ±20% | 4.2 A | - | Unshielded | 38.15mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
PL8707FIXED IND 40.5UH 3.3A 53.21 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8707NLFIXED IND 40.5UH 3.3A 53.21 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 40.5 µH | ±20% | 3.3 A | - | Unshielded | 53.21mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|

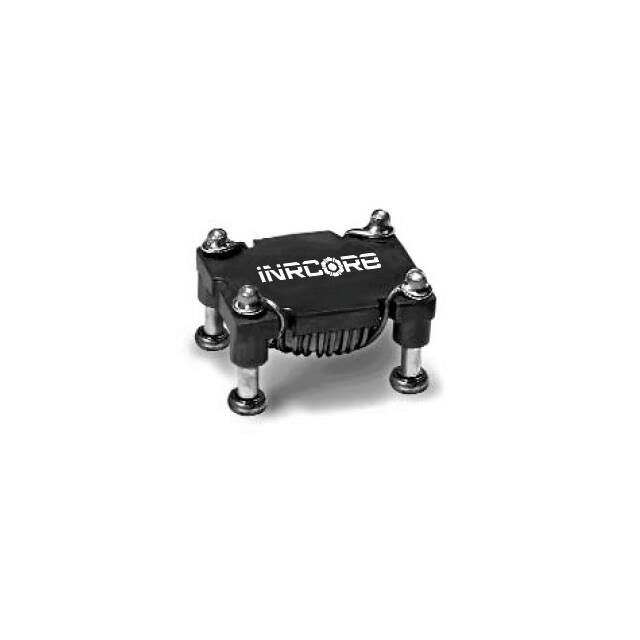

PL8708FIXED IND 50.5UH 2.3A 73.89 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8708NLFIXED IND 50.5UH 2.3A 73.89 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
- | Nonstandard | Tube | Active | Toroidal | - | 50.5 µH | ±20% | 2.3 A | - | Unshielded | 73.89mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
PL8909NLTFIXED IND 12UH 4.5A 29 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4.5 A | 5.1A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
|
PL8912NLTFIXED IND 22UH 3.8A 42 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
