Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9130TFIXED IND 680UH 570MA 1.2OHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 570 mA | 570mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|

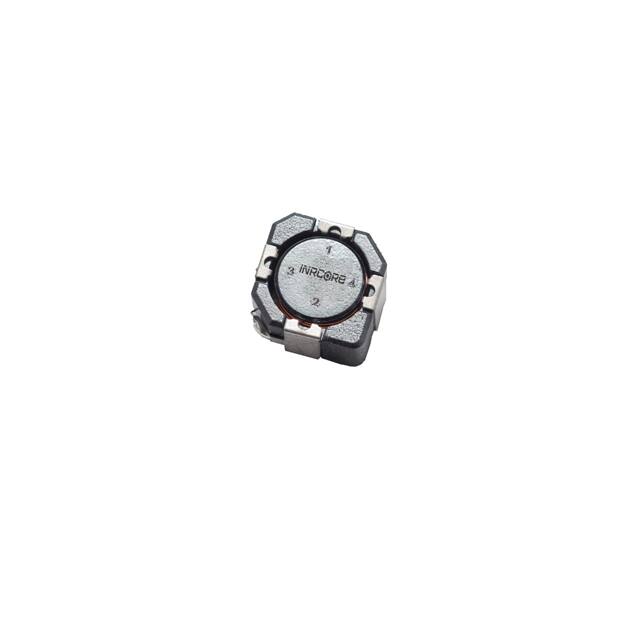

PL9131TFIXED IND 820UH 520MA 1.55OHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 520 mA | 520mA | Shielded | 1.55Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
PL9214NLTFIXED IND 33UH 2.1A 94 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.1 A | 2.2A | Shielded | 94mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9230NLTFIXED IND 680UH 490MA 1.824 OHM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 490 mA | 490mA | Shielded | 1.824Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9231NLTFIXED IND 820UH 430MA 2.355 OHM iNRCORE, LLC |
0 |
|
Datasheet
|
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 430 mA | 450mA | Shielded | 2.355Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL8142NLTFIXED IND 72.9UH 2.6A 133MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
PL8142TFIXED IND 72.9UH 2.6A 133MOHM SM iNRCORE, LLC |
0 |
|
Datasheet
|
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 72.9 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

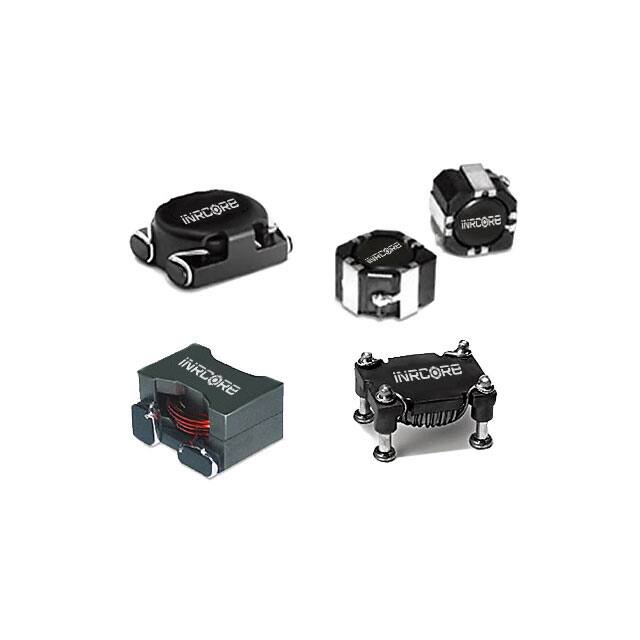

PL8302FIXED IND 20.4UH 13.5A 10.1 MOHM iNRCORE, LLC |
0 |
|
Datasheet
|
HCCI-80 | Nonstandard | Tube | Active | Toroidal | - | 20.4 µH | - | 13.5 A | - | Unshielded | 10.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8901NLTFIXED IND 1UH 11A 4 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8901TFIXED IND 1UH 11A 4 MOHM SMD iNRCORE, LLC |
0 |
|
Datasheet
|
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 11 A | 14A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
