Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

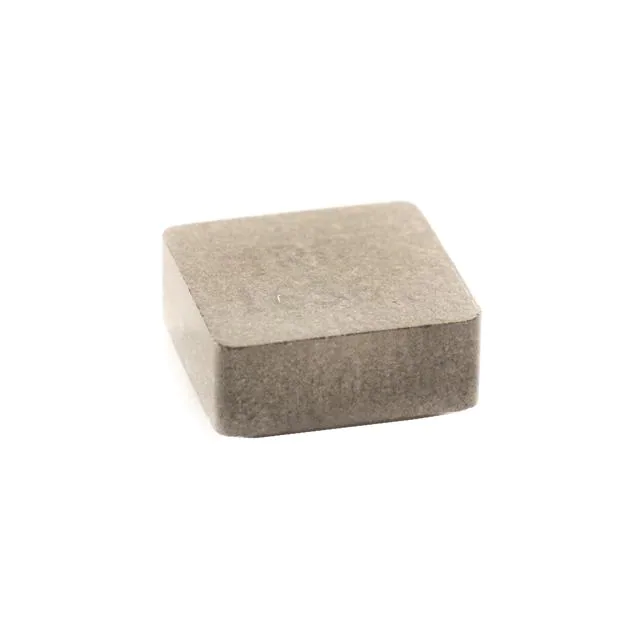

PCXA603-1R0M1.0uH +/-20% Hi-Curr. Pwr. Choke Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 18 A | 18A | Shielded | 6.05mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.118" (3.00mm) |
|
RB30-150K-RC15uH +/-10% Radial Bobbin Ind. Allied Components International |
0 |
|
Datasheet
|
- | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 µH | ±10% | - | 2.3A | Unshielded | 56mOhm Max | 40 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | Radial | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
PC0705-101M-RC100uH +/-20% Power Chip Inductor Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 720 mA | - | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
RB30-104K-RC100MH 10% RADIAL BOBBIN IND. Allied Components International |
0 |
|
Datasheet
|
RB30 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 mH | ±10% | - | 20mA | Unshielded | 235Ohm Max | 20 @ 25kHz | 100kHz | - | -55°C ~ 125°C | 25 kHz | - | Through Hole | Radial | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
PCI50-102M-RC1000uH +/-20% Power Chip Induct. Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 100 mA | 800mA | Unshielded | 2Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
PCI50-681M-RC680uH +/-20% Power Chip Inductor Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|

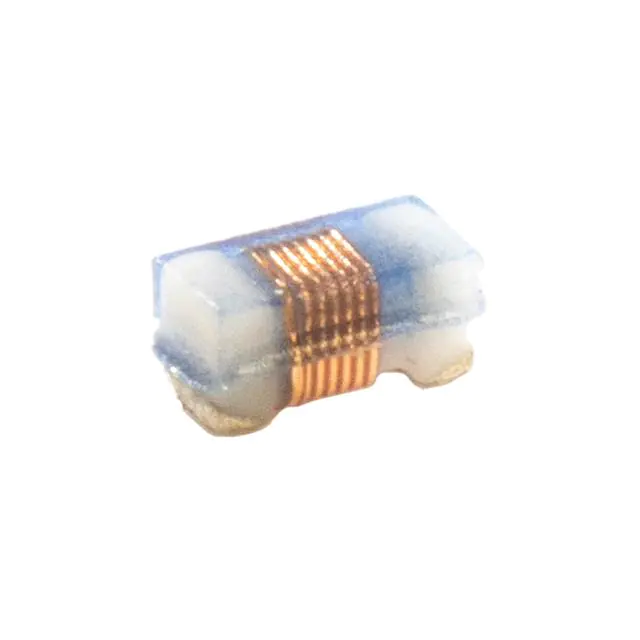

CC02-10NG-RC10nH +/-2% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | - | 480mA | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-12NG-RC12nH +/-2% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±2% | - | 640mA | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-33NG-RC33nH +/- 2% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | - | 400mA | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CC02-40NG-RC39nH +/-2% Ceramic Core Chip Allied Components International |
0 |
|
Datasheet
|
CC02 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 40 nH | ±2% | - | 320mA | Unshielded | 50mOhm Max | 24 @ 250MHz | 2.24GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
