Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCFV52-3R9M-AU3.9uH +/-20% SMD Power Chip Ind Allied Components International |
0 |
|
Datasheet
|
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
PCFV52-4R7M-RC4.7uH +/-20% SMD Power Chip Ind Allied Components International |
0 |
|
Datasheet
|
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.98 A | 2.43A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

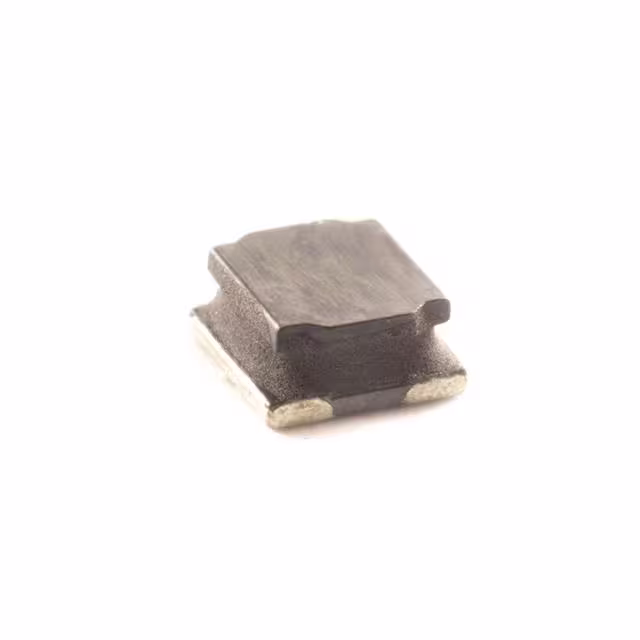

PCHP32-6R8M-RC6.8uH +/-20% SMD Shielded Power Allied Components International |
0 |
|
Datasheet
|
PCHP32 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 1A | Shielded | 160mOhm | - | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

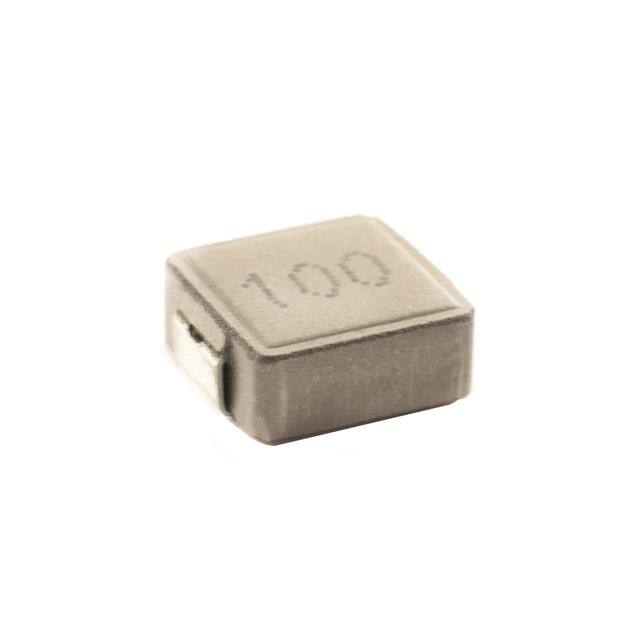

PCHC63A-100M-RC100uH +/-20% Power Inductor Allied Components International |
0 |
|
Datasheet
|
PCHC63A | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

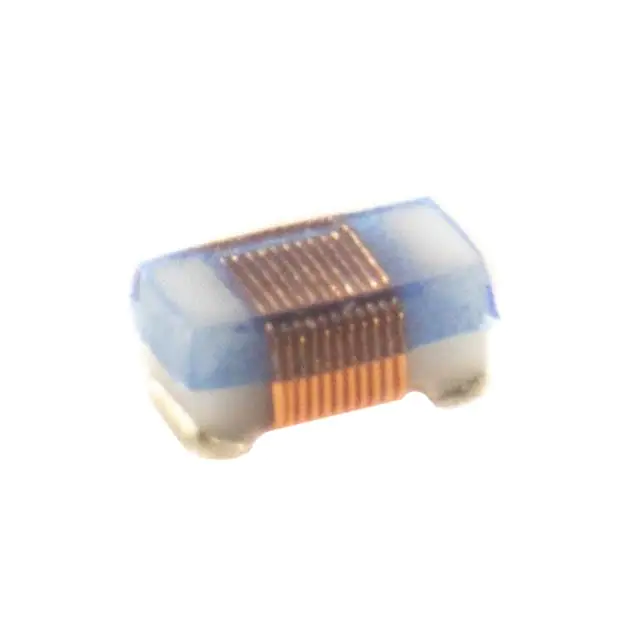

CHQ02-1N0J-RC1.0nH +/-5% Ceramic Core Chip In Allied Components International |
0 |
|
Datasheet
|
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 nH | ±5% | 2.3 A | - | Unshielded | 30mOhm Max | 46 @ 900MHz | 16GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
CHQ02-6N8-RC6.8nH +/-2% Ceramic Core Chip In Allied Components International |
0 |
|
Datasheet
|
- | 0402 (1005 Metric) | Bag | Active | Wirewound | Ceramic | 6.8 nH | ±2% | 1.5 A | - | Unshielded | 65mOhm Max | 68 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

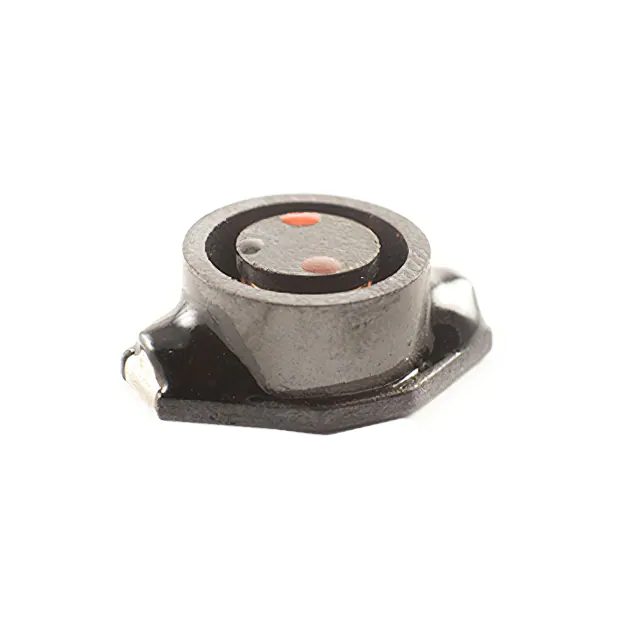

PCIS40-330M-RC22uH +/-20% Power Chip Inductor Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.1 A | 1.4A | Shielded | 334mOhm Max | 20 @ 100kHz | 12MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

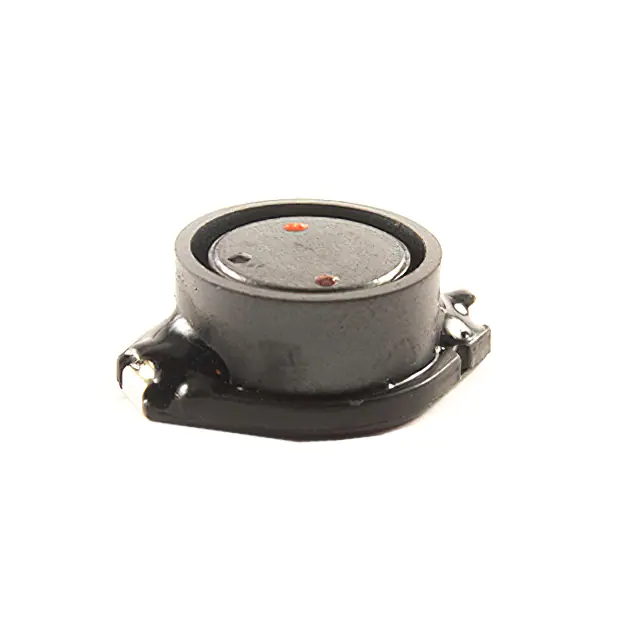

PCIS60-331M-RC330uH +/-20% Power Chip Inductor Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 860 mA | 860mA | Shielded | 780mOhm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|

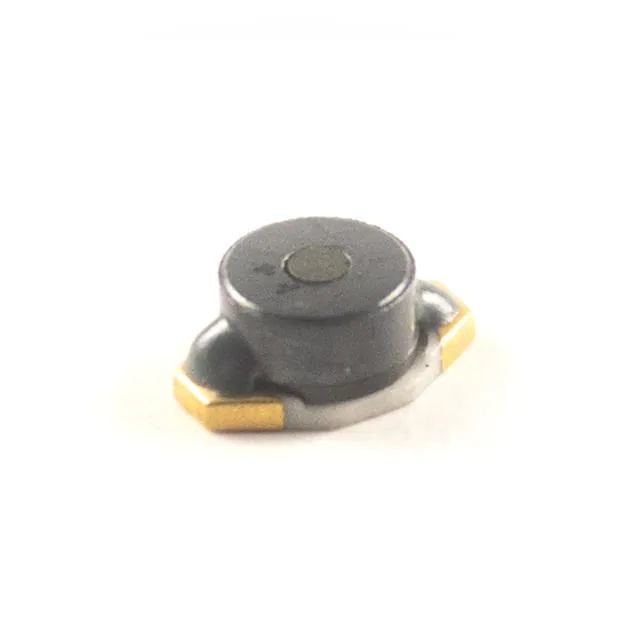

PCIT40-6R8M-RC6.8uH +/-20% Power Chip Inductor Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.5 A | - | Shielded | 50mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

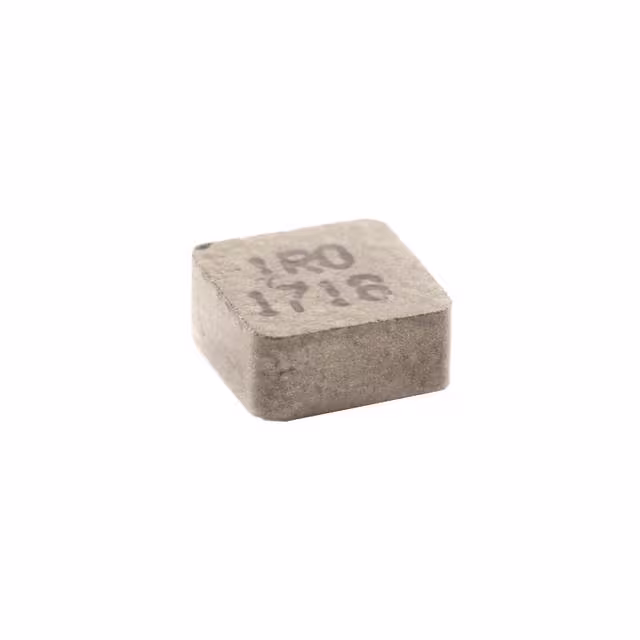

PCXLR402-1R0M1.0uH +/-20% Hi-Curr. Pwr. Choke Allied Components International |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 8A | Shielded | 11.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
