Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS6028T330MMGJFIXED IND 33UH 1.1A 286 MOHM SMD |
15,711 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 286mOhm Max | - | 10MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
NRS6028T220MMGJFIXED IND 22UH 1.4A 175.5MOHM SM |
14,040 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.3A | Shielded | 175.5mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
NR3015T1R0NFIXED IND 1UH 2.1A 36 MOHM SMD |
12,746 |
|
Datasheet
|
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Shielded | 36mOhm Max | - | 100MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
DFE252012F-R47M=P2FIXED IND 470NH 4.9A 0.023OHM SM |
11,542 |
|
Datasheet
|
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 4.9 A | 6.7A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
DFE201610E-2R2M=P2FIXED IND 2.2UH 1.7A 140MOHM SMD |
7,447 |
|
Datasheet
|
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 1.7 A | 2.4A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
DFE252012F-100M=P2FIXED IND 10UH 950MA 0.48OHM SMD |
2,779 |
|
Datasheet
|
DFE252012F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 950 mA | 1.4A | Shielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
DFE201610E-1R0M=P2FIXED IND 1UH 2.7A 57 MOHM SMD |
2,071 |
|
Datasheet
|
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 2.7 A | 3.6A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQH32PN1R0NN0LFIXED IND 1UH 2.05A 54 MOHM SMD |
1,581 |
|
Datasheet
|
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.05 A | 2.3A | Shielded | 54mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

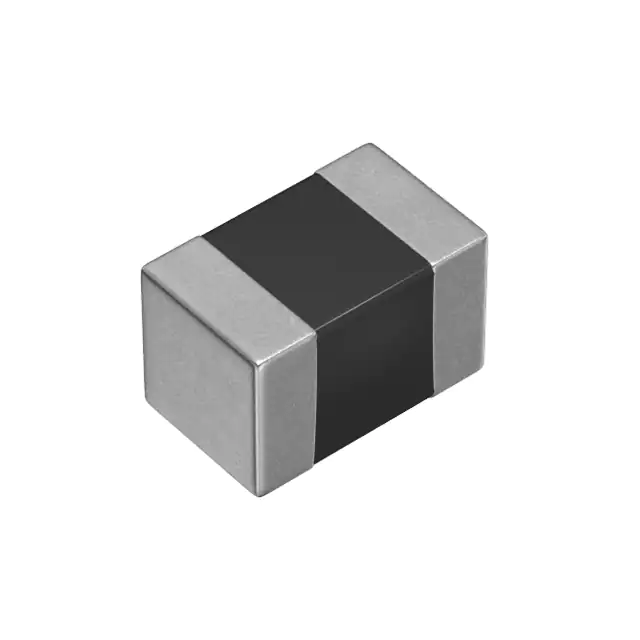

MLZ2012M3R3ATD69FIXED IND 3.3UH 500MA 200MOHM SM |
1,578 |
|
Datasheet
|
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 500 mA | 350mA | Shielded | 200mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
VLS6045EX-100MFIXED IND 10UH 3.4A 61 MOHM SMD |
174,445 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.9A | Shielded | 47mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS201612CX-100M-1FIXED IND 10UH 770MA 540MOHM SMD |
51,403 |
|
Datasheet
|
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 770 mA | 610mA | Shielded | 540mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-Height-1.20mm.jpg)
|
1239AS-H-100M=P2FIXED IND 10UH 1A 460 MOHM SMD |
39,810 |
|
Datasheet
|
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 850 mA | 1A | Shielded | 460mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-MCoil-MC-Series.jpg)
|

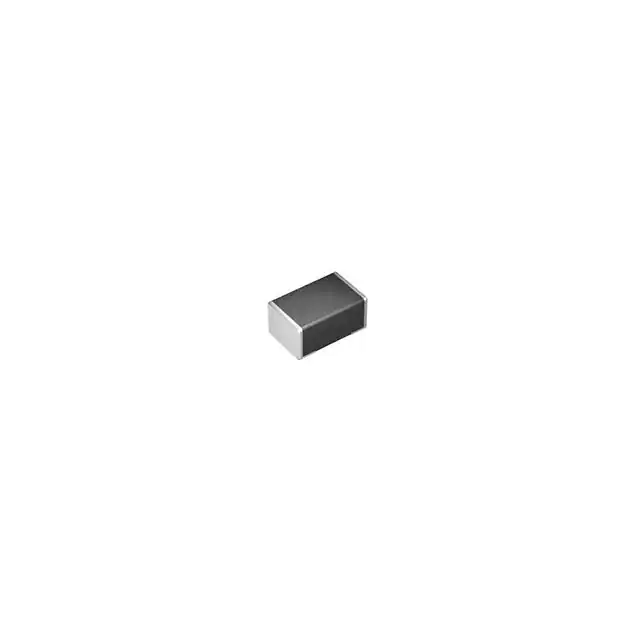

MCKK1608TR47MNFIXED IND 470NH 2A 55 MOHM SMD |
35,270 |
|
Datasheet
|
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 2 A | 2.4A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCKK1608T1R0MNFIXED IND 1UH 1.3A 123 MOHM SMD |
18,077 |
|
Datasheet
|
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.3 A | 2A | Shielded | 123mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

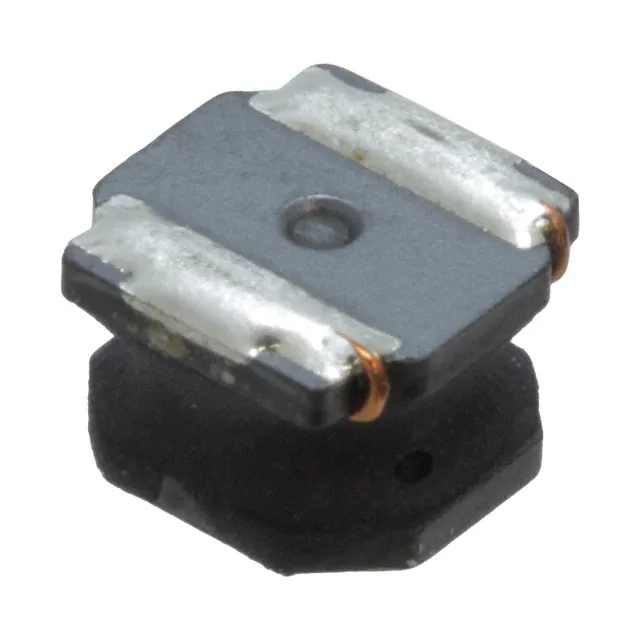

NRS6045T1R0NMGKFIXED IND 1UH 4.5A 18.2 MOHM SMD |
17,776 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.5 A | 9.8A | Shielded | 18.2mOhm Max | - | 110MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

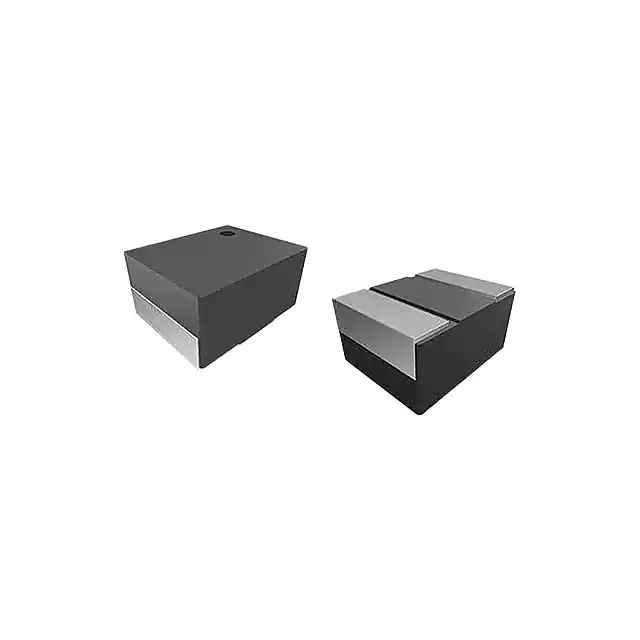

IHHP0806AZER1R0M01FIXED IND 1UH 3.1A 65 MOHM SMD |
16,066 |
|
Datasheet
|
IHHP-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.1 A | 3.5A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NRS6045T220MMGKFIXED IND 22UH 1.6A 139.1MOHM SM |
12,866 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.6 A | 2A | Shielded | 139.1mOhm Max | - | 7MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
1239AS-H-R47M=P2FIXED IND 470NH 3.8A 39 MOHM SMD |
5,430 |
|
Datasheet
|
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 3.7 A | 3.8A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
1239AS-H-2R2M=P2FIXED IND 2.2UH 2.2A 108MOHM SMD |
2,323 |
|
Datasheet
|
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2 A | 2.2A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

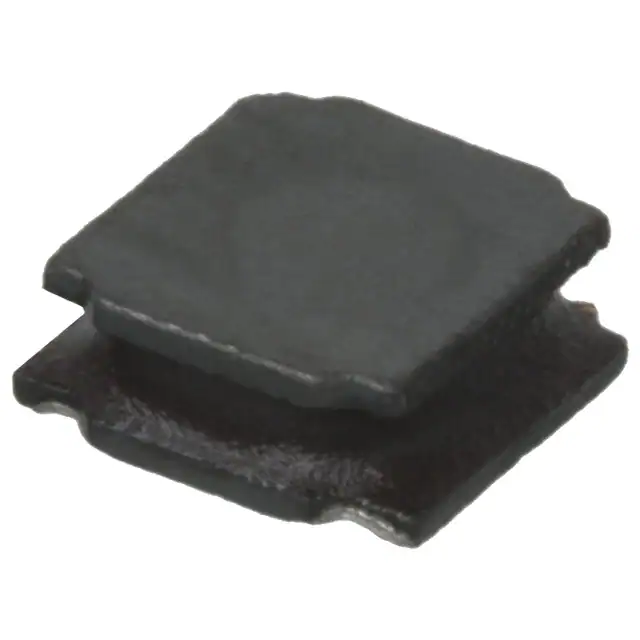

NR4018T100MFIXED IND 10UH 840MA 216MOHM SMD |
179,112 |
|
Datasheet
|
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 840 mA | 1.2A | Shielded | 216mOhm Max | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
