CPLDs (Complex Programmable Logic Devices)(4119)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Programmable Type | Delay Time tpd(1) Max | Voltage Supply - Internal | Number of Logic Elements/Blocks | Number of Macrocells | Number of Gates | Number of I/O | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATF1508ASL-20JC84IC CPLD 128MC 20NS 84PLCC |
0 |
|
Datasheet
|
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 4.75V ~ 5.25V | - | 128 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
ATF1508ASL-20QC100IC CPLD 128MC 20NS 100QFP |
0 |
|
Datasheet
|
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 4.75V ~ 5.25V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
ATF1508ASV-15JC84IC CPLD 128MC 15NS 84PLCC |
0 |
|
Datasheet
|
ATF15xx | 84-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 128 | - | 64 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 84-PLCC (29.31x29.31) |
|
|
ATF1508ASV-15QC100IC CPLD 128MC 15NS 100QFP |
0 |
|
Datasheet
|
ATF15xx | 100-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-PQFP (14x20) |
|
ATF1508ASV-15QC160IC CPLD 128MC 15NS 160QFP |
0 |
|
Datasheet
|
ATF15xx | 160-BQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 3V ~ 3.6V | - | 128 | - | 96 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 160-PQFP (28x28) |
|
ATF1508ASVL-20AC100IC CPLD 128MC 20NS 100TQFP |
0 |
|
Datasheet
|
ATF15xx | 100-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 20 ns | 3V ~ 3.6V | - | 128 | - | 80 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 100-TQFP (14x14) |
.jpg)
|
ATF750C-15JCIC CPLD 10MC 15NS 28PLCC |
0 |
|
Datasheet
|
ATF750C(L) | 28-LCC (J-Lead) | Tube | Obsolete | Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
ATF750C-15PCIC CPLD 10MC 15NS 24DIP |
0 |
|
Datasheet
|
ATF750C(L) | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Through Hole | 24-PDIP |
|
ATF750C-15SCIC CPLD 10MC 15NS 24SO |
0 |
|
Datasheet
|
ATF750C(L) | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 24-SO |
|
|
ATF750CL-15JCIC CPLD 10MC 15NS 28PLCC |
0 |
|
Datasheet
|
ATF750C(L) | 28-LCC (J-Lead) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ATF750CL-15PCIC CPLD 10MC 15NS 24DIP |
0 |
|
Datasheet
|
ATF750C(L) | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Through Hole | 24-PDIP |
|
|
ATF750CL-15SCIC CPLD 10MC 15NS 24SO |
0 |
|
Datasheet
|
ATF750C(L) | 24-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | EE PLD | 15 ns | 4.75V ~ 5.25V | - | 10 | - | 10 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 24-SO |
|
ATV2500B-15JCIC CPLD 24MC 15NS 44PLCC |
0 |
|
Datasheet
|
ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 15 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
ATV2500BQ-25PCIC CPLD 24MC 25NS 40DIP |
0 |
|
Datasheet
|
ATV2500B(L) and BQ(L) | 40-DIP (0.600", 15.24mm) | Tube | Obsolete | Not Verified | OTP | 25 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Through Hole | 40-PDIP |
|
|
ATV2500BQL-25JCIC CPLD 24MC 25NS 44PLCC |
0 |
|
Datasheet
|
ATV2500B(L) and BQ(L) | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 25 ns | 4.75V ~ 5.25V | - | 24 | - | 24 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|

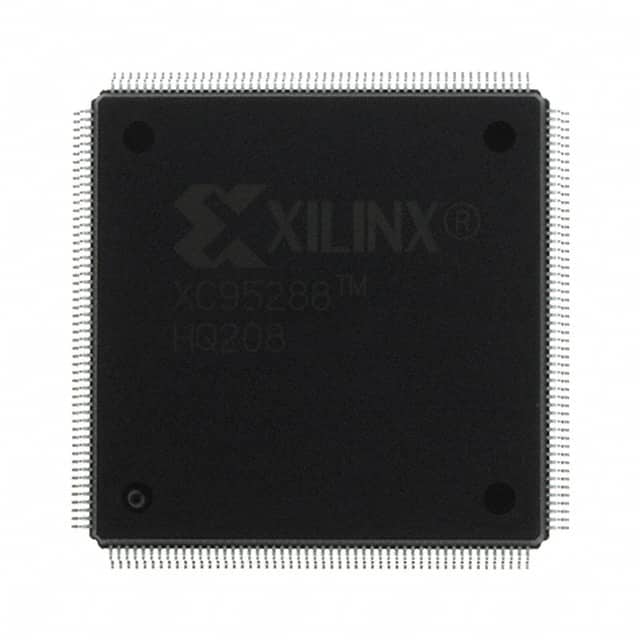

XC95288-15HQ208CIC CPLD 288MC 15NS 208QFP |
0 |
|
Datasheet
|
XC9500 | 208-BFQFP Exposed Pad | Tray | Obsolete | Not Verified | In System Programmable (min 10K program/erase cycles) | 15 ns | 4.75V ~ 5.25V | 16 | 288 | 6400 | 168 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 208-PQFP (28x28) |
|
|
ATF1500A-10JIIC CPLD 32MC 10NS 44PLCC |
0 |
|
Datasheet
|
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 100 program/erase cycles) | 10 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
ATF1500A-12ACIC CPLD 32MC 12NS 44TQFP |
0 |
|
Datasheet
|
ATF15xx | 44-TQFP | Tray | Obsolete | Not Verified | In System Programmable (min 100 program/erase cycles) | 12 ns | 4.75V ~ 5.25V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-TQFP (10x10) |
|
|
ATF1500A-12JCIC CPLD 32MC 12NS 44PLCC |
0 |
|
Datasheet
|
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Verified | In System Programmable (min 100 program/erase cycles) | 12 ns | 4.75V ~ 5.25V | - | 32 | - | 32 | 0°C ~ 70°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
|
|
ATF1500A-12JIIC CPLD 32MC 12NS 44PLCC |
0 |
|
Datasheet
|
ATF15xx | 44-LCC (J-Lead) | Tube | Obsolete | Not Verified | In System Programmable (min 100 program/erase cycles) | 12 ns | 4.5V ~ 5.5V | - | 32 | - | 32 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 44-PLCC (16.6x16.6) |
