Telit Cinterion BGS2-E REL.2
- Part No.:
- BGS2-E REL.2
- Manufacturer:
- Telit Cinterion
- Category:
- RF Transceiver Modules and Modems
- Package:
- 106-BLGA Module
- Datasheet:
-
BGS2-E REL.2.pdf
- Description:
- RF TXRX MODULE CELL SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BGS2-E REL.2 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Telit Cinterion
- Series:
- Cinterion® BGS2
- Package/Case:
- 106-BLGA Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular
- Protocol:
- GPRS, GSM, HSPA
- Modulation:
- -
- Frequency:
- 900MHz, 1.8GHz
- Data Rate:
- 85.6kbps
- Power - Output:
- 2W
- Sensitivity:
- -
- Serial Interfaces:
- ADC, GPIO, I2C, PWM
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3.3V ~ 4.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 90°C
- Datasheet:
-
BGS2-E REL.2.pdf
| Image |  |
|
 |
 |
 |

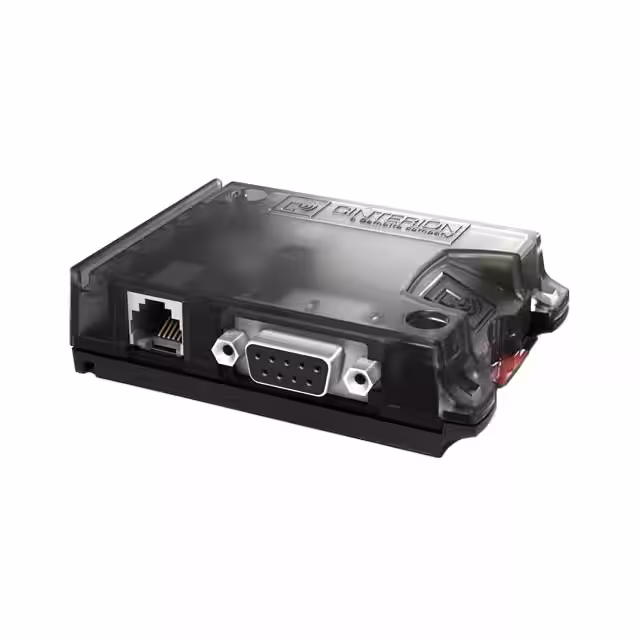

| Part Number | BGS2-E REL.4 | BGS2-W REL.4 | BGS2T RS485 | BGS2-W REL.2 | BGS2-E REL.4.5 |
| Manufacturer | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion |
| Series | Cinterion BGS2 | Cinterion BGS2 | Cinterion BGS2T | Cinterion® BGS2 | Cinterion® BGS2 |
| Package/Case | 106-BLGA Module | 106-BLGA Module | Module | 106-BLGA Module | 106-BLGA Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Box | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular | Cellular | Cellular | Cellular | Cellular |
| Protocol | GPRS, GSM | GPRS, GSM | GPRS, GSM | GPRS, GSM, HSPA | GPRS, GSM, HSPA |
| Modulation | GMSK | GMSK | GMSK | - | - |
| Frequency | 900MHz, 1.8GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 900MHz, 1.8GHz |
| Data Rate | 85kbps | 85kbps | 85kbps | 85.6kbps | 85.6kbps |
| Power - Output | 33dBm | 33dBm | 33dBm | 2W | 2W |
| Sensitivity | -107dBm | -110dBm | -110dBm | - | - |
| Serial Interfaces | ADC, PCM, UART | PCM, UART | RS485 | ADC, GPIO, I2C, PWM | ADC, GPIO |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | Intel XGOLD1100 | Intel XGOLD1100 | Intel XGOLD1100 | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 3.3V ~ 4.5V | 3.3V ~ 4.5V | 8V ~ 30V | 3.3V ~ 4.5V | 3.3V ~ 4.5V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | 30mA ~ 330mA | 30mA ~ 330mA | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | DIN Rail | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C |
