TE Connectivity Aerospace, Defense and Marine FC-325-6
- Part No.:
- FC-325-6
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
FC-325-6.pdf
- Description:
- RELAY GEN PURPOSE 3PST 25A 115V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FC-325-6 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- FC-325, CII
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 115VAC
- Contact Form:
- 3PST-NO (DM) (3 Form X)
- Contact Rating (Current):
- 25 A
- Switching Voltage:
- 115VAC, 28VDC - Nom
- Load - Max Switching:
- -
- Coil Current:
- 600 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Screw Terminal
- Seal Rating:
- Sealed - Hermetically
- Coil Insulation:
- -
- Must Operate Voltage:
- 95 VAC
- Must Release Voltage:
- 5 VAC
- Operate Time:
- 25 ms
- Release Time:
- 50 ms
- Operating Temperature:
- -70°C ~ 125°C
- Contact Material:
- -
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
FC-325-6.pdf
| Image |  |
 |
 |
 |
 |

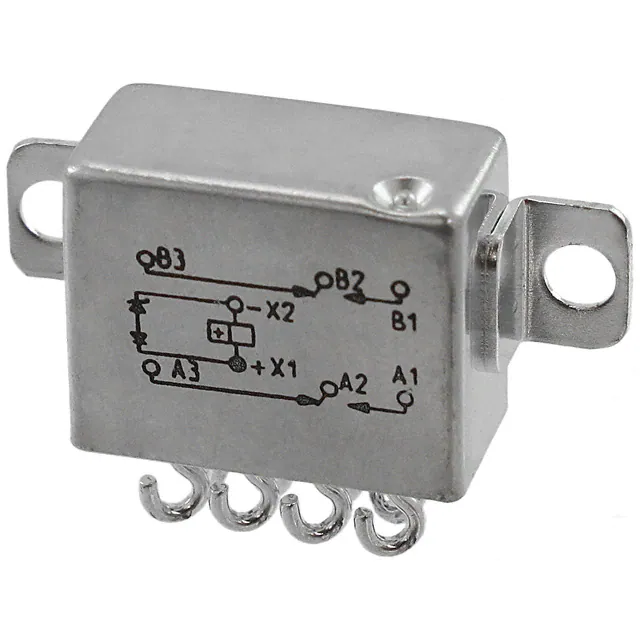

| Part Number | FCA-125-19 | FCB-205-0226M | FCB-205-0224M | FCB-205-0219M | FCA-125-22 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | FCA-125, CII | FCB-205, CII | FCB-205, CII | FCB-205, CII | FCA-125, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Coil Voltage | 28VDC | 28VDC | 28VDC | 28VDC | 28VDC |
| Contact Form | SPDT (1 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 25 A | 5 A | 5 A | 5 A | 25 A |
| Switching Voltage | 115VAC, 28VDC - Max | - | - | - | 115VAC, 28VDC - Max |
| Load - Max Switching | 2875VA, 700W | - | - | - | 2875VA, 700W |
| Coil Current | 875 mA | 56 mA | 56 mA | 56 mA | 87.5 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | Diode |
| Termination Style | Solder Hook | Solder Hook | Plug In | PC Pin | PC Pin |
| Seal Rating | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 13.5 VDC | 18 VDC | 18 VDC | 13.5 VDC | 13.5 VDC |
| Must Release Voltage | 2.3 VDC | 1.5 VDC | 1.5 VDC | 2.3 VDC | 2.3 VDC |
| Operate Time | 10 ms | 4 ms | 4 ms | 4 ms | 10 ms |
| Release Time | 10 ms | 4 ms | 4 ms | 4 ms | 10 ms |
| Operating Temperature | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | Military | Military | Military | - | - |
| Qualification | MIL-R-6106/19 | MIL-R-83536/2 | MIL-R-83536/2 | - | - |
