Same Sky (Formerly CUI Devices) C14D32P-D3A
- Part No.:
- C14D32P-D3A
- Manufacturer:
- Same Sky (Formerly CUI Devices)
- Category:
- Encoders
- Package:
- Description:
- ROTARY ENCODER OPTICAL 32PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C14D32P-D3A Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Same Sky (Formerly CUI Devices)
- Series:
- C14
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- -
- Encoder Type:
- Optical
- Output Type:
- Quadrature, 2-Bit
- Pulses per Revolution:
- 32
- Voltage - Supply:
- 4.75V ~ 5.25V
- Actuator Type:
- 1/4" Dia Round End
- Detent:
- Yes
- Built in Switch:
- Yes
- Mounting Type:
- Panel, PCB Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 1M
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

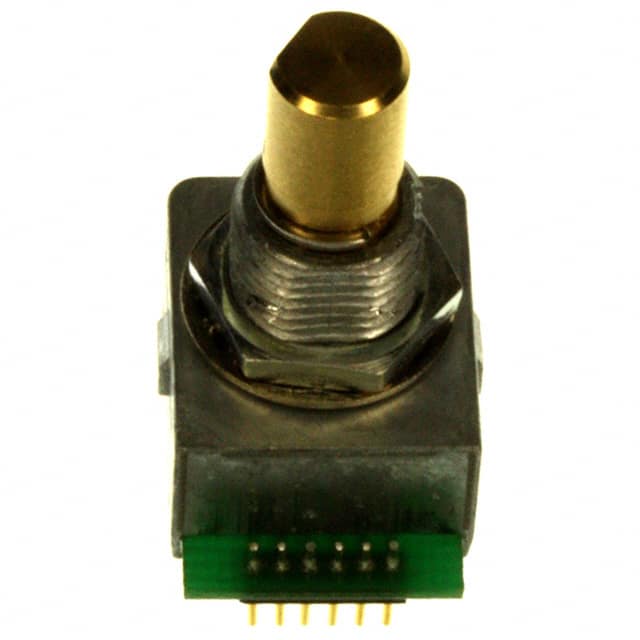

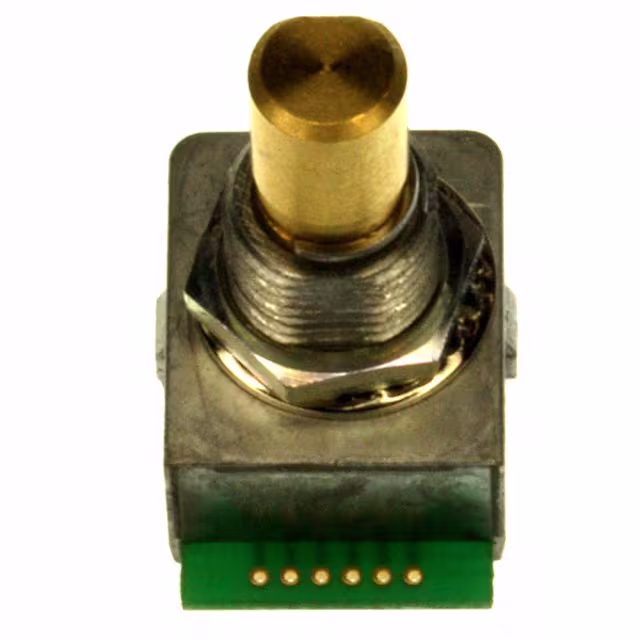

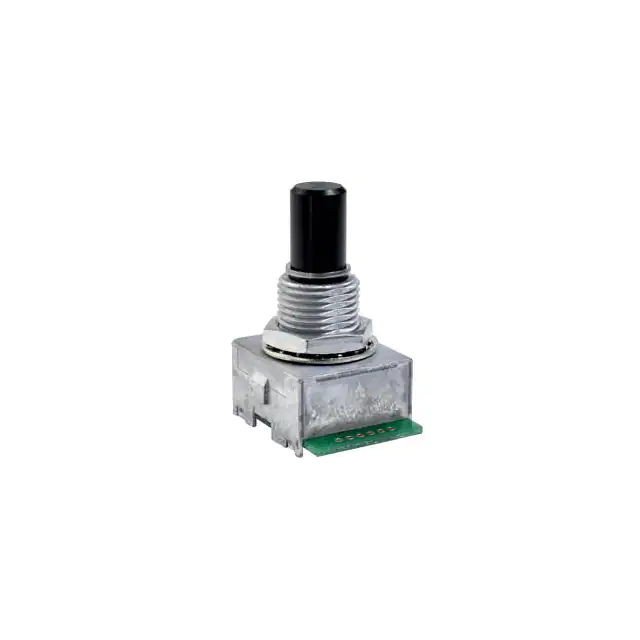

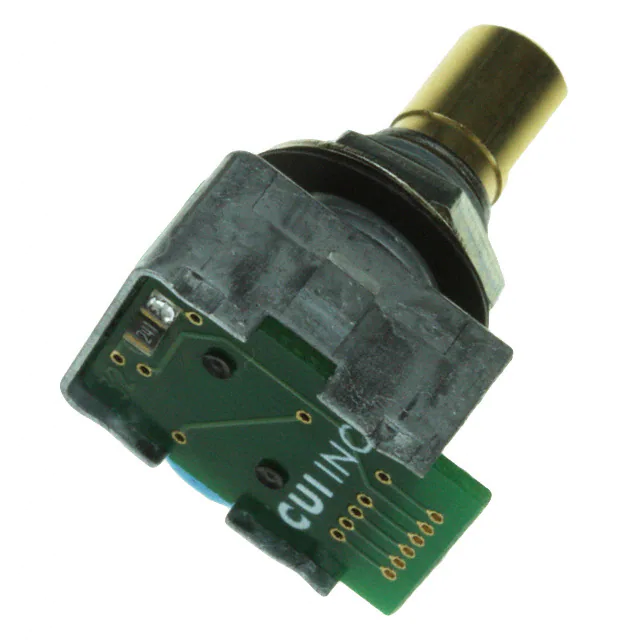

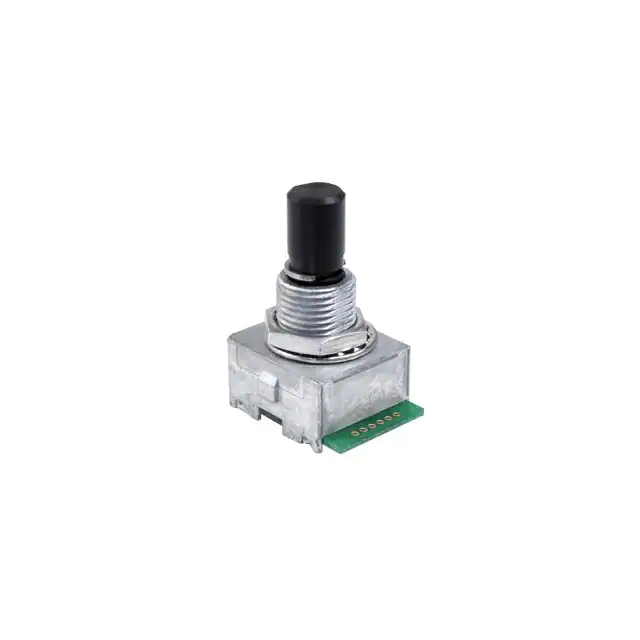

| Part Number | C14D32P-A3 | C14D32P-C3 | C14D32P-A3A | C14D32P-A2P | C14D32P-A3P |
| Manufacturer | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) | Same Sky (Formerly CUI Devices) |
| Series | C14 | C14 | C14 | C14 | C14 |
| Packaging | Box | Box | Box | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Optical | Optical | Optical | Optical | Optical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 32 | 32 | 32 | 32 | 32 |
| Voltage - Supply | 5V | 5V | 5V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Actuator Type | 1/4" Dia Flatted End | 1/4" Dia Flatted End | 1/4" Dia Flatted End | 6mm Dia Round End | 1/4" Dia Flatted End |
| Detent | Yes | Yes | Yes | Yes | Yes |
| Built in Switch | Yes | Yes | Yes | Yes | Yes |
| Mounting Type | Panel Mount | Panel, PCB Through Hole | Panel Mount | Panel Mount | Panel Mount |
| Orientation | Right Angle | Vertical | Right Angle | Right Angle | Right Angle |
| Termination Style | Solder Lug | PC Pin | Solder Lug | Solder Lug | Solder Lug |
| Rotational Life (Cycles Min) | 1M | 1M | 1M | 1M | 1M |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
