Rohm Semiconductor PML100HZPJV
- Part No.:
- PML100HZPJV
- Manufacturer:
- Rohm Semiconductor
- Category:
- Chip Resistor - Surface Mount
- Package:
- -
- Datasheet:
-
PML100HZPJV.pdf
- Description:
- 2512 ULTRA LOW OHMIC CHIP RESIST
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PML100HZPJV Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Rohm Semiconductor
- Series:
- -
- Package/Case:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Resistance:
- -
- Tolerance:
- -
- Power (Watts):
- -
- Composition:
- -
- Features:
- -
- Temperature Coefficient:
- -
- Operating Temperature:
- -
- Supplier Device Package:
- -
- Ratings:
- -
- Size / Dimension:
- -
- Height - Seated (Max):
- -
- Number of Terminations:
- -
- Failure Rate:
- -
- Datasheet:
-
PML100HZPJV.pdf

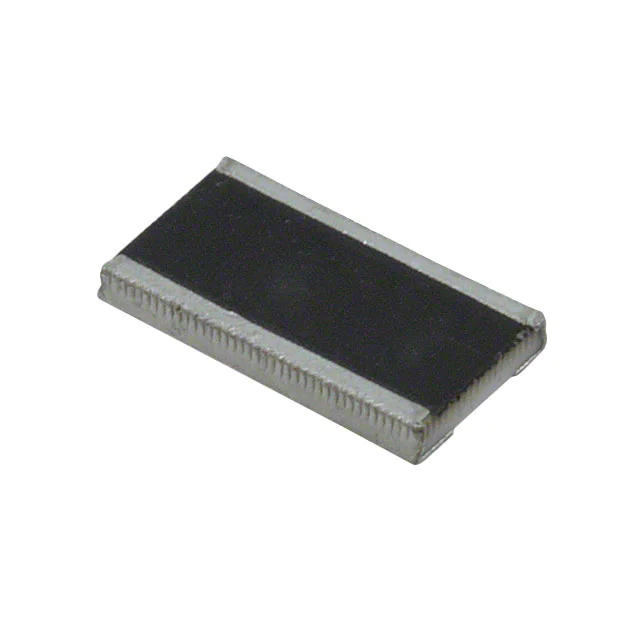

| Image | , 1225.jpg) |
|
|
|
|
| Part Number | PML100HZPJV1L0 | PML100HZPJV2L2 | PML100HZPJV2L0 | PML100HZPJV0L5 | PML100HZPJV1L5 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Series | PML | PML | PML | PML | PML |
| Package/Case | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 1 mOhms | 2.2 mOhms | 2 mOhms | 0.5 mOhms | 1.5 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±150ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Supplier Device Package | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Ratings | 2512 | 2512 | 2512 | 2512 | 2512 |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
