Pasternack PEWAN034-20KF
- Part No.:
- PEWAN034-20KF
- Manufacturer:
- Pasternack
- Category:
- RF Antennas
- Package:
- Datasheet:
-
PEWAN034-20KF.pdf
- Description:

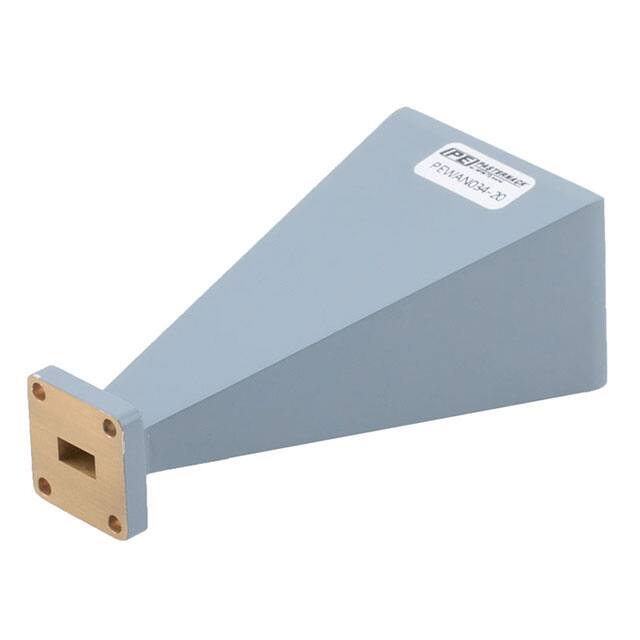

- WR34 GAIN HORN 22-33GHZ 20DBI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PEWAN034-20KF Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Case
- Product Status:
- Active
- RF Family/Standard:
- -
- Frequency Group:
- SHF (f > 4GHz)
- Frequency (Center/Band):
- 27.5GHz
- Frequency Range:
- 22GHz ~ 33GHz
- Antenna Type:
- Horn
- Number of Bands:
- 1
- VSWR:
- 1.4
- Return Loss:
- -
- Gain:
- 20dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- 2.92mm Female
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Waveguide Flange Mount
- Height (Max):
- 4.721" (119.91mm)
- Applications:
- -
- Datasheet:
-
PEWAN034-20KF.pdf
| Image |  |
 |
 |
 |
 |

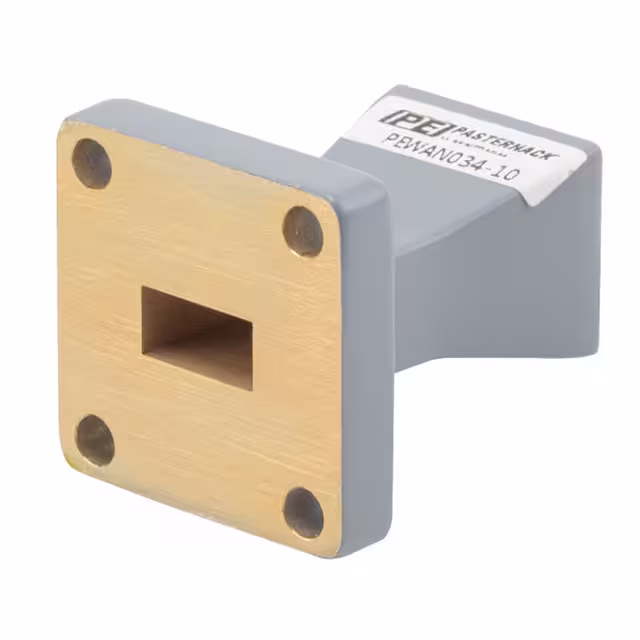

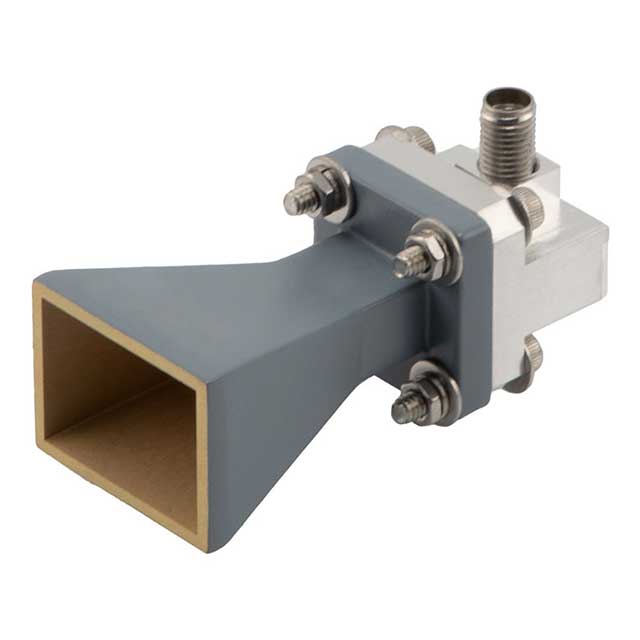

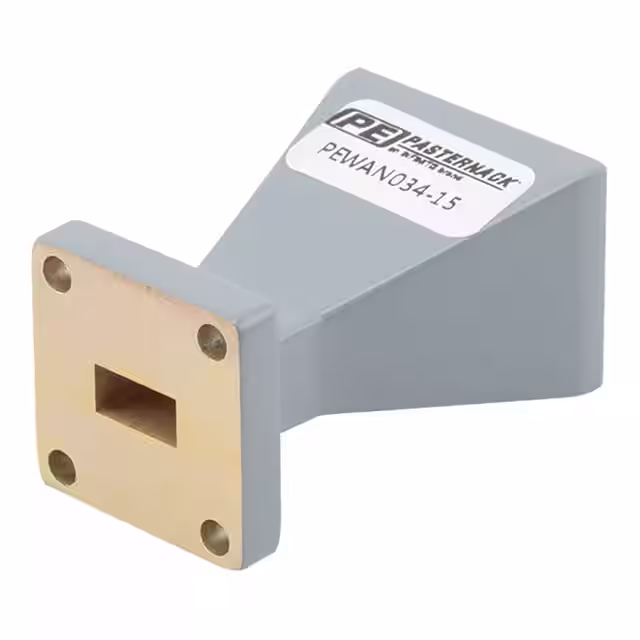

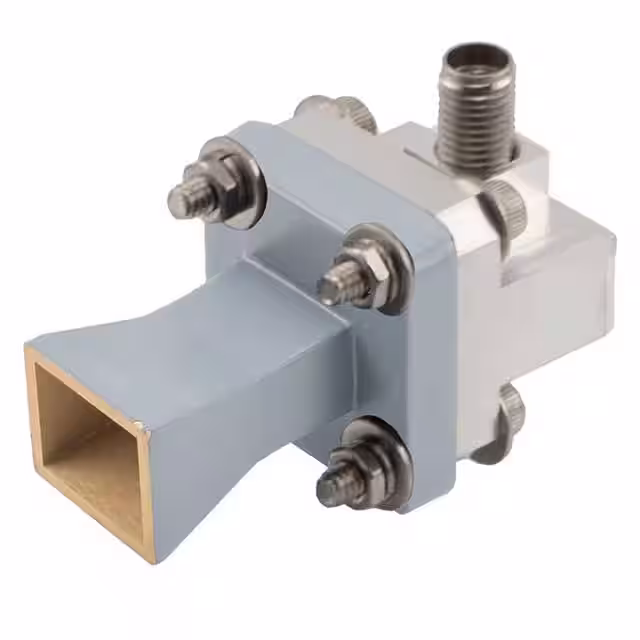

| Part Number | PEWAN034-15KF | PEWAN034-10 | PEWAN034-15 | PEWAN034-20 | PEWAN034-10KF |
| Manufacturer | Pasternack | Pasternack | Pasternack | Pasternack | Pasternack |
| Series | - | - | - | - | - |
| Packaging | Case | Bulk | Bulk | Bulk | Case |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | - | Waveguide | Waveguide | Waveguide | - |
| Frequency Group | SHF (f > 4GHz) | K-Ka Band (18GHz ~ 40GHz) | K-Ka Band (18GHz ~ 40GHz) | K-Ka Band (18GHz ~ 40GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 27.5GHz | 27.4GHz | 27.4GHz | 27.4GHz | 27.5GHz |
| Frequency Range | 22GHz ~ 33GHz | 22GHz ~ 33GHz | 22GHz ~ 33GHz | 22GHz ~ 33GHz | 22GHz ~ 33GHz |
| Antenna Type | Horn | Horn | Horn | Horn | Horn |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 1.4 | 1.3 | 1.3 | 1.3 | 1.4 |
| Return Loss | - | - | - | - | - |
| Gain | 15dBi | 10dBi | 15dBi | 20dBi | 10dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | 2.92mm Female | - | - | - | 2.92mm Female |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount |
| Height (Max) | 2.635" (66.93mm) | - | - | - | 2.084" (52.93mm) |
| Applications | - | - | - | - | - |
