Home > Products > RF and Wireless > RF Power Dividers/Splitters

Pasternack PE-T1012

Compare

Part No.:: PE-T1012

Manufacturer:: Pasternack

Category:: RF Power Dividers/Splitters

Package:: Module

Datasheet:: PE-T1012.pdf

Description:: Low PIM 3 Way N Equal-Tapper Hig

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

PE-T1012 Information

Specifications
Product Details
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Pasternack

Package/Case:: Module

Series:: -

Packaging:: Retail Package

Product Status:: Active

Insertion Loss:: 4.85dB

Frequency:: 600 MHz ~ 2.7 GHz

Specifications:: -

Size / Dimension:: -

Datasheet:: PE-T1012.pdf

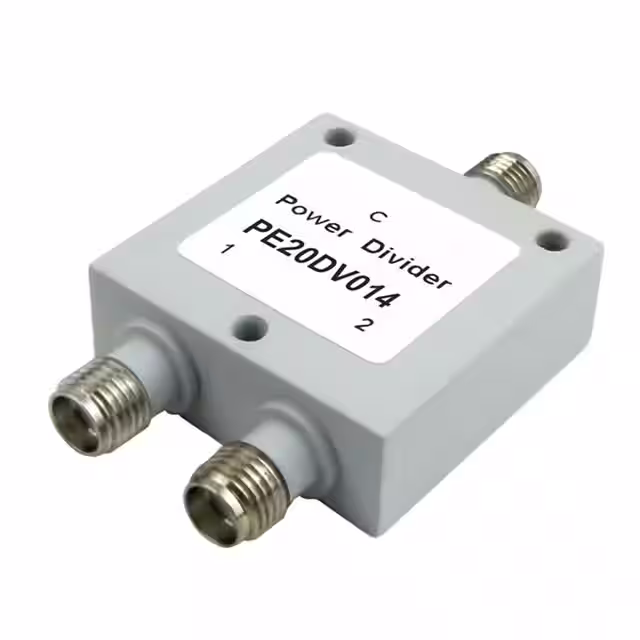

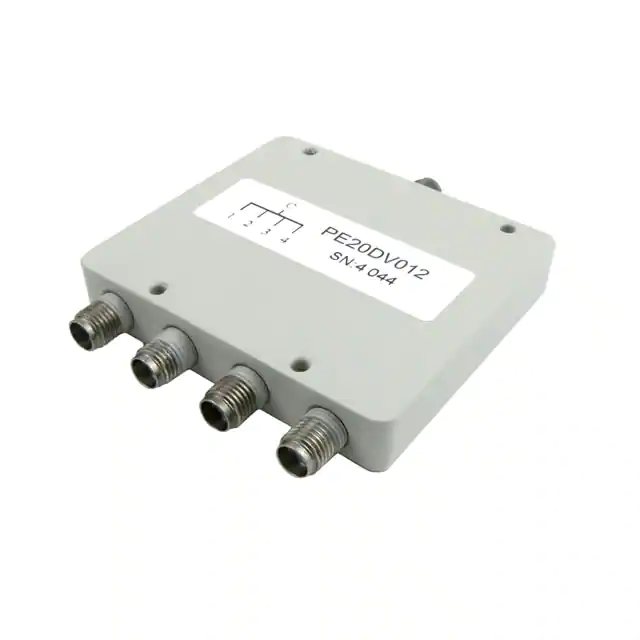

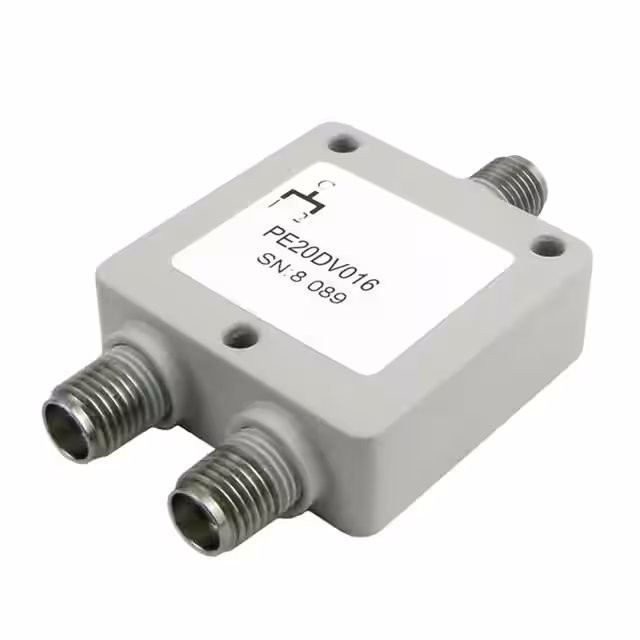

Part Number	PE2088	PE20DV014	PE2092	PE20DV016	PE20DV012
Manufacturer	Pasternack	Pasternack	Pasternack	Pasternack	Pasternack
Package/Case	Module, SMA Connectors	Module, SMA Connectors	Module	Module, SMA Connectors	Module, SMA Connectors
Series	-	-	-	-	-
Packaging	Retail Package	Bag	Retail Package	Bag	Bag
Product Status	Active	Active	Active	Active	Active
Insertion Loss	0.5dB	0.35dB	0.5dB	3.35dB	6.7dB
Frequency	690 MHz ~ 2.7 GHz	1 GHz ~ 2 GHz	690 MHz ~ 2.7 GHz	2 GHz ~ 4 GHz	800 MHz ~ 2.5 GHz
Specifications	Isolation (Min) 22dB	Isolation (Min) 20dB, 2° Imbalance (Max), 1.2 VSWR (Max)	Isolation (Min) 22dB, 3° Imbalance (Max), 1.25 VSWR (Max)	Isolation (Min) 20dB, 2° Imbalance (Max), 1.25 VSWR (Max)	Isolation (Min) 20dB, 6° Imbalance (Max), 1.3 VSWR (Max)
Size / Dimension	2.000" L x 1.969" W x 0.772" H (50.80mm x 50.00mm x 19.61mm)	1.098" L x 1.098" W x 0.404" H (27.90mm x 27.90mm x 10.25mm)	2.000" L x 1.969" W x 0.927" H (50.80mm x 50.00mm x 23.54mm)	1.098" L x 1.098" W x 0.404" H (27.90mm x 27.90mm x 10.25mm)	2.220" L x 1.969" W x 0.404" H (56.40mm x 50.00mm x 10.25mm)
