Panasonic Electronic Components EVE-JBNF1520B
- Part No.:
- EVE-JBNF1520B
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Encoders
- Package:
- Datasheet:
-
EVE-JBNF1520B.pdf
- Description:
- ROTARY ENCODER GS 12MM SQ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EVE-JBNF1520B Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- EVEJB
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Encoder Type:
- Mechanical
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 20
- Voltage - Supply:
- -
- Actuator Type:
- 6mm Dia Flatted End
- Detent:
- Yes
- Built in Switch:
- Yes
- Mounting Type:
- PCB, Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 30K
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
EVE-JBNF1520B.pdf
| Image |  |
|
 |
 |
|

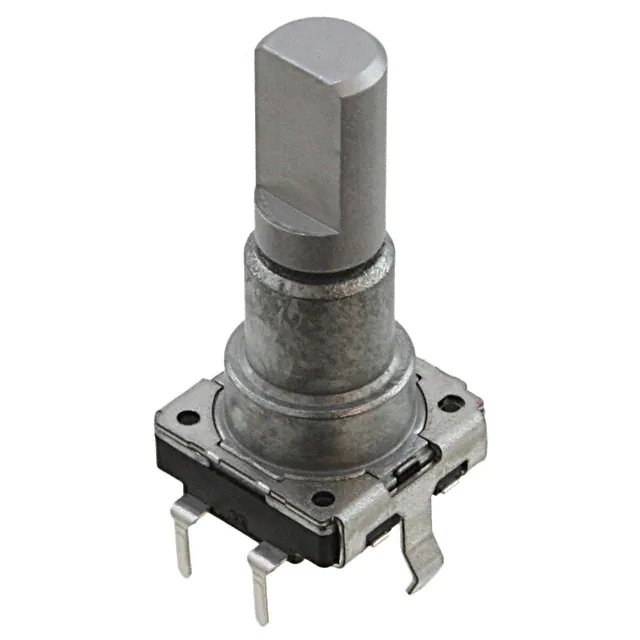

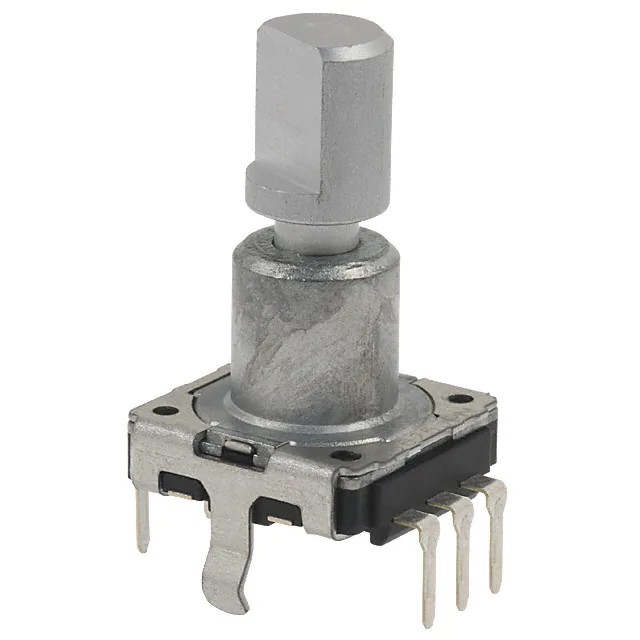

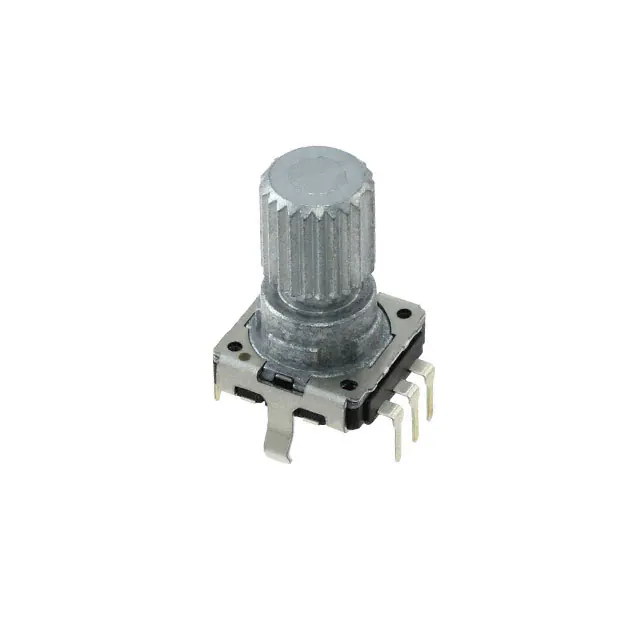

| Part Number | EVE-VCGJL016B | EVE-VGHFL816B | EVE-WRHJR012B | EVE-YBCAJ016B | EVE-YBCAJ008B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | EVEV | EVEV | - | - | - |
| Packaging | Bulk | Tray | Tray | Tray | Tray |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 16 | 16 | 12 | 16 | 8 |
| Voltage - Supply | - | - | 10V | - | - |
| Actuator Type | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End | 8mm Dia Knurled End | 8mm Dia Knurled End |
| Detent | Yes | Yes | Yes | Yes | Yes |
| Built in Switch | Yes | Yes | Yes | Yes | Yes |
| Mounting Type | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole |
| Orientation | Vertical | Vertical | Vertical | Vertical | Vertical |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Rotational Life (Cycles Min) | 30K | 30K | 200K | 30K | 30K |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
