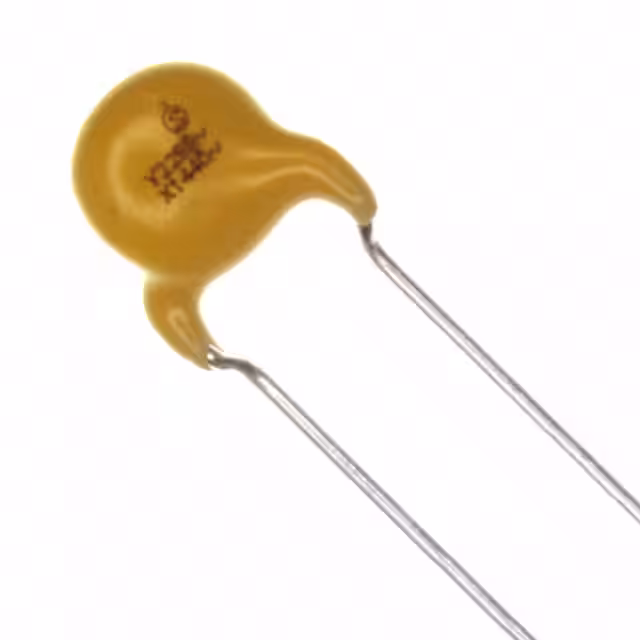

Panasonic Electronic Components ECC-NVS050DG
- Part No.:
- ECC-NVS050DG
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Ceramic Capacitors
- Package:
- Datasheet:
-
ECC-NVS050DG.pdf
- Description:
- CAP CER 5PF 440V SL/GP RADIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECC-NVS050DG Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- VS
- Packaging:
- Tape & Box (TB)
- Product Status:
- Obsolete
- Capacitance:
- 5 pF
- Tolerance:
- ±0.5pF
- Voltage - Rated:
- 440VAC
- Temperature Coefficient:
- SL/GP
- Operating Temperature:
- -25°C ~ 125°C
- Features:
- -
- Ratings:
- X1, Y2
- Applications:
- Safety
- Failure Rate:
- -
- Mounting Type:
- Through Hole
- Package / Case:
- Radial, Disc
- Size / Dimension:
- 0.315" Dia (8.00mm)
- Height - Seated (Max):
- 0.472" (12.00mm)
- Thickness (Max):
- -
- Lead Spacing:
- 0.197" (5.00mm)
- Lead Style:
- Formed Leads
- Datasheet:
-
ECC-NVS050DG.pdf
| Image |  |
|
 |
|
|

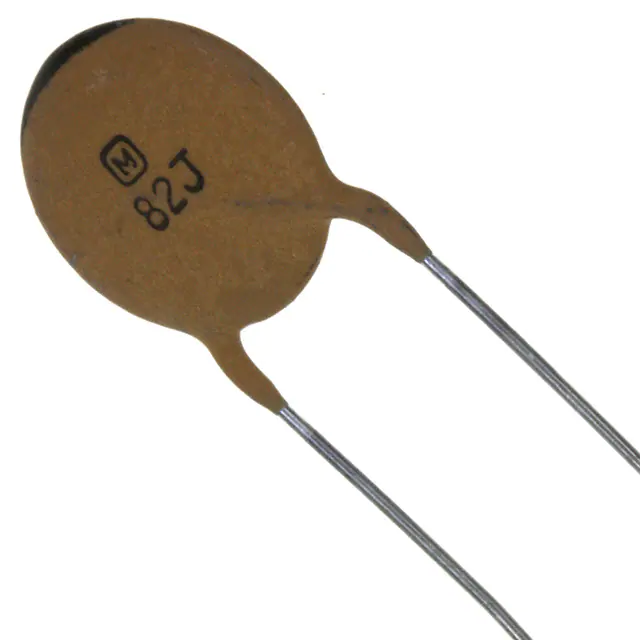

| Part Number | ECC-D2H820JCE | ECC-F1H102J | ECC-T3F100JG | ECC-T3F150JG | ECC-T3F180JG |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | ECC | ECC | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 82 pF | 1000 pF | 10 pF | 15 pF | 18 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 500V | 50V | 3000V (3kV) | 3000V (3kV) | 3000V (3kV) |
| Temperature Coefficient | C0G, NP0 | SL/GP | SL/GP | SL/GP | SL/GP |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | - | - | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | Radial, Disc | Radial, Disc | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.413" Dia (10.50mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.280" L x 0.248" W (7.10mm x 6.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.118" (3.00mm) | - | - | - |
| Thickness (Max) | - | - | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | - | - | - |
| Lead Style | Straight | Straight | - | - | - |
