Omron Automation and Safety MKS3PI-5 AC24
- Part No.:
- MKS3PI-5 AC24
- Manufacturer:
- Omron Automation and Safety
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
MKS3PI-5 AC24.pdf
- Description:
- RELAY GEN PURPOSE 3PDT 10A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MKS3PI-5 AC24 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- MK-S
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Socketable
- Coil Voltage:
- 24VAC
- Contact Form:
- 3PDT (3 Form C)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 2500VA, 300W
- Coil Current:
- 96.3 mA
- Coil Type:
- Non Latching
- Features:
- Mechanical Indicator, Test Button
- Termination Style:
- Plug In, 11 Pin (Octal)
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 19.2 VAC
- Must Release Voltage:
- 7.2 VAC
- Operate Time:
- 20 ms
- Release Time:
- 20 ms
- Operating Temperature:
- -40°C ~ 60°C
- Contact Material:
- Silver Tin Indium (AgSnIn)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
- Datasheet:
-
MKS3PI-5 AC24.pdf
| Image |  |
 |
 |
|
 |

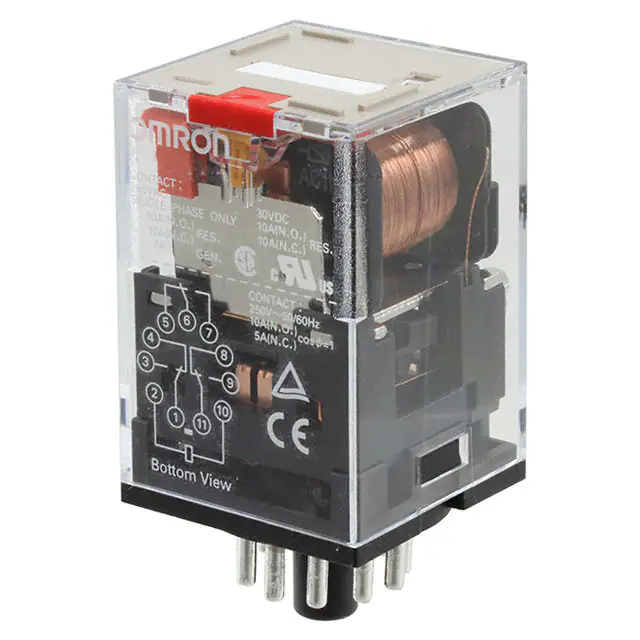

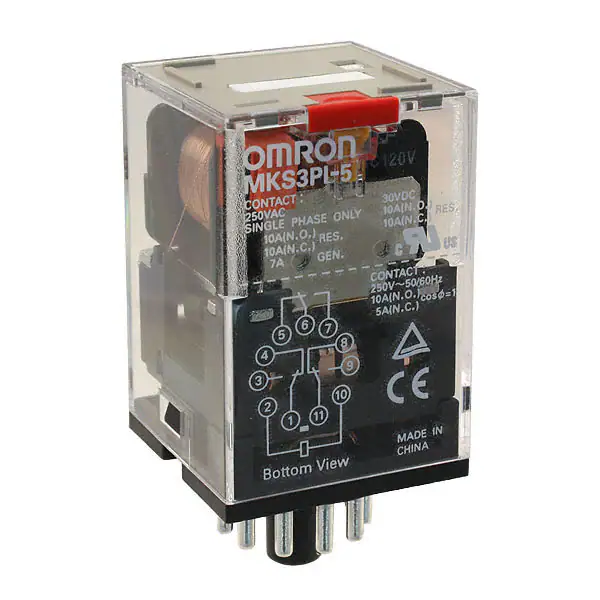

| Part Number | MKS3PI-5 DC24 | MKS3PIN-5 AC24 | MKS3PI-5 AC110 | MKS3PI-5 DC110 | MKS3PI5-AC120 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | MK-S | MK-S | MK-S | MK-S | MK-S |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Coil Voltage | 24VDC | 24VAC | 110VAC | 110VDC | 120VAC |
| Contact Form | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W |
| Coil Current | 55.8 mA | 96.3 mA | 21 mA | 12.3 mA | 19.3 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | Mechanical Indicator, Test Button | Lighted Indicator, Mechanical Indicator, Test Button | Mechanical Indicator, Test Button | Mechanical Indicator, Test Button | Mechanical Indicator, Test Button |
| Termination Style | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In, 11 Pin (Octal) |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 19.2 VDC | 19.2 VAC | 88 VAC | 88 VDC | 96 VAC |
| Must Release Voltage | 3.6 VDC | 7.2 VAC | 33 VAC | 16.5 VDC | 36 VAC |
| Operate Time | 30 ms | 20 ms | 20 ms | 30 ms | 20 ms |
| Release Time | 20 ms | 20 ms | 20 ms | 20 ms | 20 ms |
| Operating Temperature | -40°C ~ 60°C | -25°C ~ 60°C | -40°C ~ 60°C | -40°C ~ 60°C | -40°C ~ 60°C |
| Contact Material | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
