Omron Automation and Safety G3DZ-F4PU DC24
- Part No.:
- G3DZ-F4PU DC24
- Manufacturer:
- Omron Automation and Safety
- Category:
- Solid State Relays (SSR)
- Package:
- -
- Description:
- SSR TERM RELAY 4 OUT DC24
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G3DZ-F4PU DC24 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- G3DZ-F4PU
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- DIN Rail
- Circuit:
- SPST-NO (1 Form A) x 4
- Output Type:
- AC, DC
- Voltage - Input:
- 24VDC
- Voltage - Load:
- 0 V ~ 250 V
- Load Current:
- 5 A
- On-State Resistance (Max):
- -
- Termination Style:
- Spring Terminal
- Operating Temperature:
- -25°C ~ 55°C
- Supplier Device Package:
- -
- Approval Agency:
- CE, cULus, TUV
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
|
 |

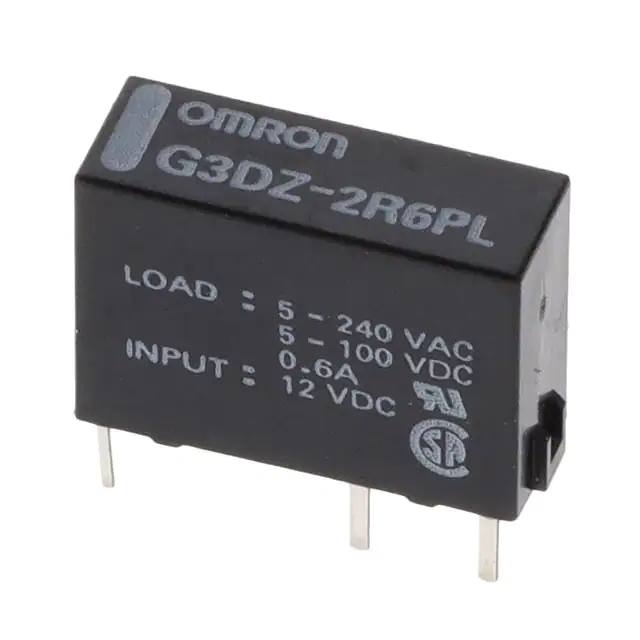

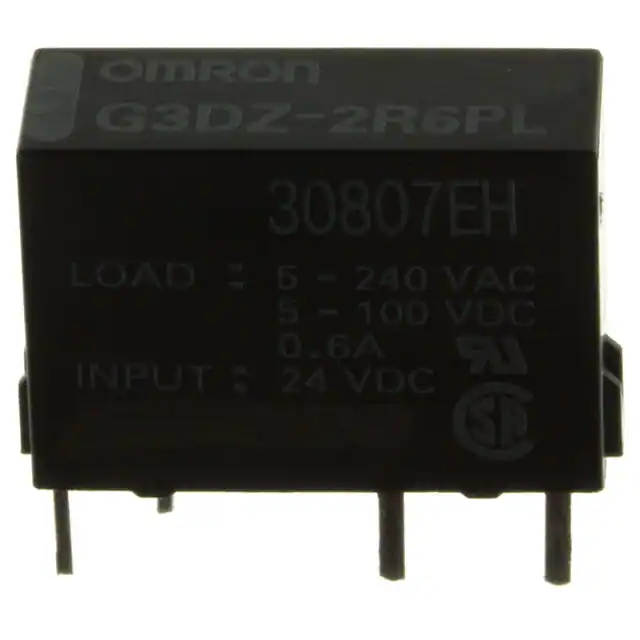

| Part Number | G3DZ-DZ02P DC24 | G3DZ-2R6PL DC24 | G3DZ-F4B DC24 | G3DZ-4B DC24 | G3DZ-2R6PL DC12 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | G3DZ | G3DZ | G3DZ-F4B | G3DZ | G3DZ |
| Packaging | Bulk | Tray | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | DIN Rail | Through Hole | Through Hole |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) x 4 | SPST-NO (1 Form A) x 4 | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 19.2 ~ 28.8VDC | 19.2 ~ 28.8VDC | 19.2 ~ 28.8VDC | 19.2 ~ 28.8VDC | 9.6 ~ 14.4VDC |
| Voltage - Load | 3 V ~ 26 V | 3 V ~ 264 V | 3 V ~ 264 V | 3 V ~ 264 V | 3 V ~ 264 V |
| Load Current | 2 A | 600 mA | 300 mA | 300 mA | 600 mA |
| On-State Resistance (Max) | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | Screw Terminal | PC Pin | PC Pin |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -25°C ~ 55°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Supplier Device Package | - | - | - | - | - |
| Approval Agency | CSA, UR | CSA, UR | CSA, UR, VDE | CSA, UR | CSA, UR |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
