Name: 600R150-C
Brand: Littelfuse Inc.
SKU: 600R150-C
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

All Categories

Language

Home > Products > Circuit Protection > PTC Resettable Fuses

Littelfuse Inc. 600R150-C

Compare

Part No.:: 600R150-C

Manufacturer:: Littelfuse Inc.

Category:: PTC Resettable Fuses

Package:: -

Description:: POLYFUSE RADIAL

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

600R150-C Information

Specifications
Product Details
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Littelfuse Inc.

Package/Case:: -

Series:: -

Packaging:: Bulk

Product Status:: Obsolete

Type:: -

Voltage - Max:: -

Current - Hold (Ih) (Max):: -

Current - Trip (It):: -

Current - Max:: -

Time to Trip:: -

Resistance - Initial (Ri) (Min):: -

Resistance - Post Trip (R1) (Max):: -

Resistance - 25°C (Typ):: -

Operating Temperature:: -

Grade:: -

Qualification:: -

Ratings:: -

Mounting Type:: -

Size / Dimension:: -

Height - Seated (Max):: -

Thickness (Max):: -

Lead Spacing:: -

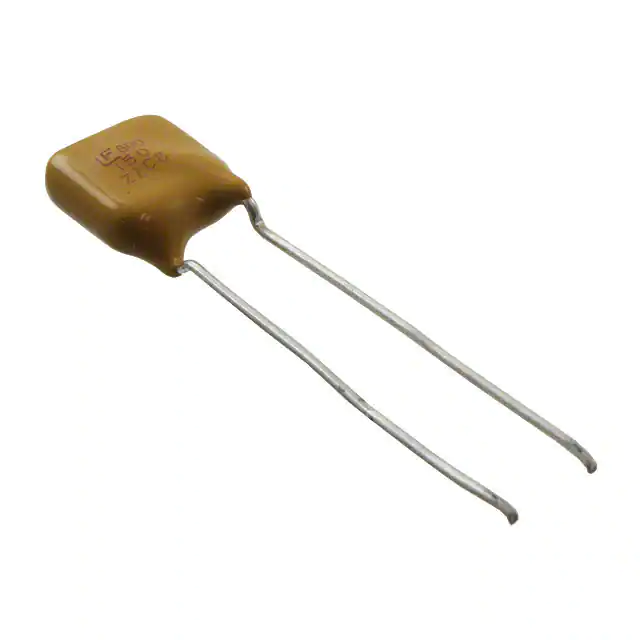

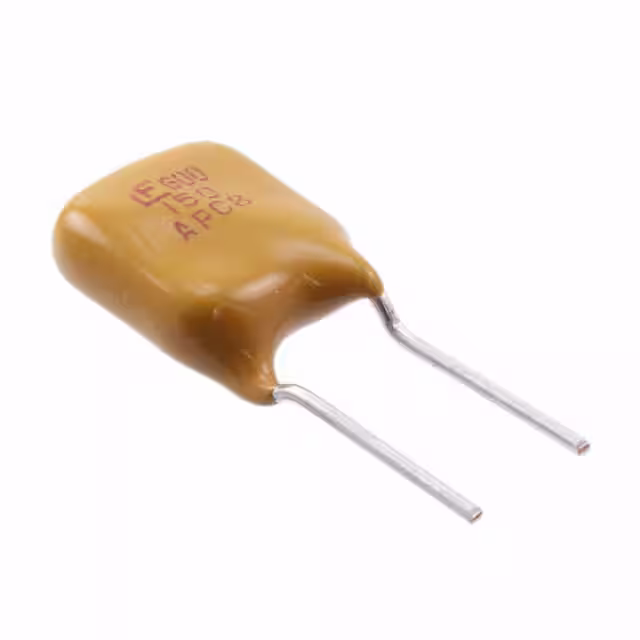

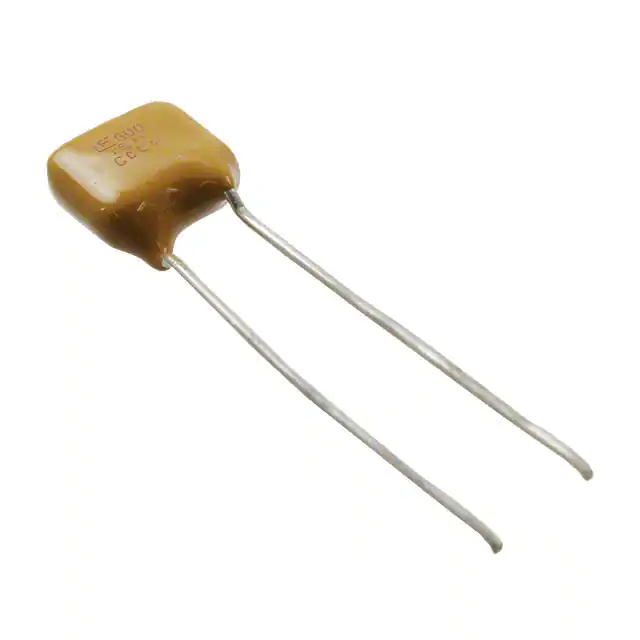

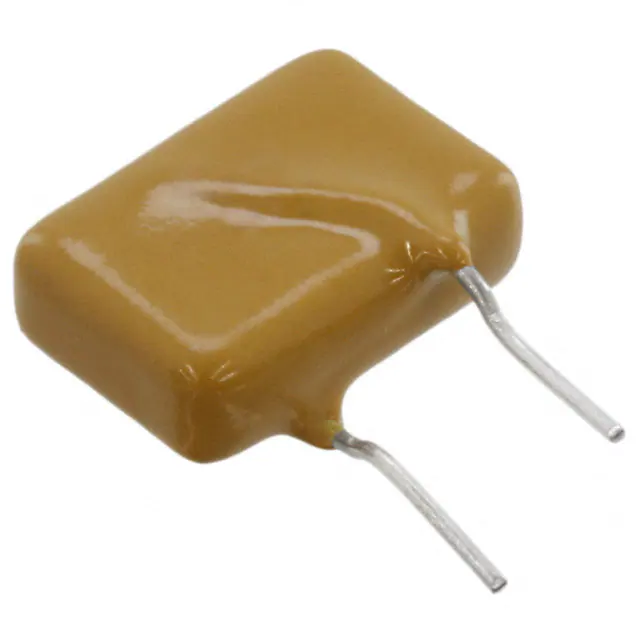

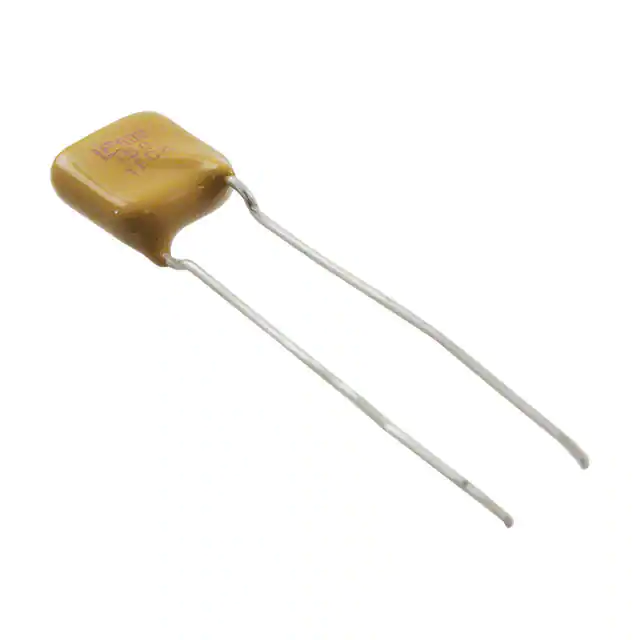

Part Number	600R150F	600R150ZR	600R150-RBZR	600R150-RAF	600R150-RAZR
Manufacturer	Littelfuse Inc.	Littelfuse Inc.	Littelfuse Inc.	Littelfuse Inc.	Littelfuse Inc.
Package/Case	Radial, Disc	Radial, Disc	Radial, Disc	Radial, Disc	Radial, Disc
Series	POLY-FUSE®, 600R	POLY-FUSE®, 600R	POLY-FUSE®, 600R	POLY-FUSE®, 600R	POLY-FUSE®, 600R
Packaging	Bulk	Cut Tape (CT)	Cut Tape (CT)	Bulk	Cut Tape (CT)
Product Status	Active	Active	Active	Active	Obsolete
Type	Polymeric	Polymeric	Polymeric	Polymeric	Polymeric
Voltage - Max	60V (600V Int)	60V (600V Int)	60V (600V Int)	60V (600V Int)	60V (600V Int)
Current - Hold (Ih) (Max)	150 mA	150 mA	150 mA	150 mA	150 mA
Current - Trip (It)	300 mA	300 mA	300 mA	300 mA	300 mA
Current - Max	3 A	3 A	3 A	3 A	3 A
Time to Trip	4 s	4 s	3 s	4 s	4 s
Resistance - Initial (Ri) (Min)	6 Ohms	6 Ohms	9 Ohms	7 Ohms	7 Ohms
Resistance - Post Trip (R1) (Max)	17 Ohms	17 Ohms	22 Ohms	20 Ohms	20 Ohms
Resistance - 25°C (Typ)	-	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Ratings	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Size / Dimension	0.354" L x 0.181" W (9.00mm x 4.60mm)	0.354" L x 0.181" W (9.00mm x 4.60mm)	0.354" L x 0.181" W (9.00mm x 4.60mm)	0.354" L x 0.181" W (9.00mm x 4.60mm)	0.354" L x 0.181" W (9.00mm x 4.60mm)
Height - Seated (Max)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)
Thickness (Max)	-	-	-	-	-
Lead Spacing	0.201" (5.10mm)	0.201" (5.10mm)	0.201" (5.10mm)	0.201" (5.10mm)	0.201" (5.10mm)
