IXYS MDD310-08N1
- Part No.:
- MDD310-08N1
- Manufacturer:
- IXYS
- Category:
- Diode Arrays
- Package:
- Y2-DCB
- Datasheet:
-
MDD310-08N1.pdf
- Description:
- DIODE MODULE GP 800V 305A Y2-DCB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MDD310-08N1 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IXYS
- Series:
- -
- Package/Case:
- Y2-DCB
- Packaging:
- Box
- Product Status:
- Active
- Diode Configuration:
- 1 Pair Series Connection
- Technology:
- Standard
- Voltage - DC Reverse (Vr) (Max):
- 800 V
- Current - Average Rectified (Io) (per Diode):
- 305A
- Voltage - Forward (Vf) (Max) @ If:
- 1.2 V @ 600 A
- Speed:
- Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr):
- -
- Current - Reverse Leakage @ Vr:
- 40 mA @ 800 V
- Operating Temperature - Junction:
- -40°C ~ 150°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- Y2-DCB
- Datasheet:
-
MDD310-08N1.pdf

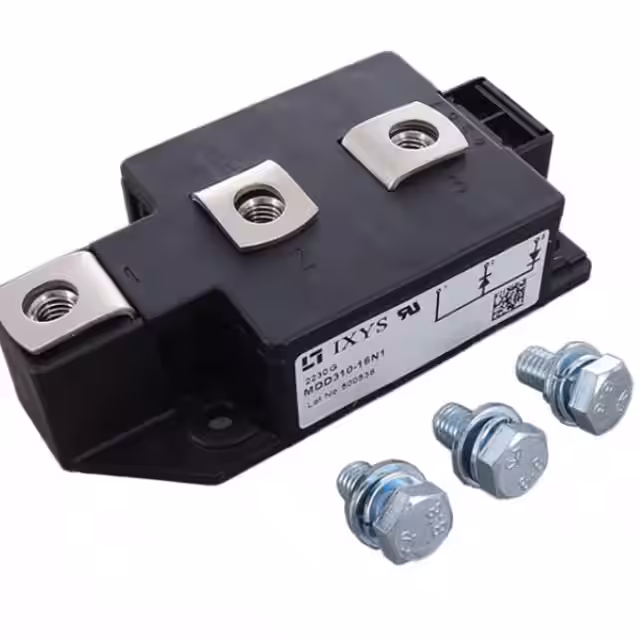

| Image |  |
 |
|
|
|
| Part Number | MDD310-16N1 | MDD310-12N1 | MDD310-14N1 | MDD310-18N1 | MDD310-20N1 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Series | - | - | - | - | - |
| Package/Case | Y2-DCB | Y2-DCB | Y2-DCB | Y2-DCB | Y2-DCB |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection | 1 Pair Series Connection |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V | 1200 V | 1400 V | 1800 V | 2000 V |
| Current - Average Rectified (Io) (per Diode) | 305A | 305A | 305A | 305A | 305A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 600 A | 1.2 V @ 600 A | 1.2 V @ 600 A | 1.2 V @ 600 A | 1.2 V @ 600 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 40 mA @ 1600 V | 40 mA @ 1200 V | 40 mA @ 1400 V | 40 mA @ 1800 V | 40 mA @ 2000 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | Y2-DCB | Y2-DCB | Y2-DCB | Y2-DCB | Y2-DCB |
